The DJI Ronin SC-2 Gimbal gives you professional results in a compact size. This stabiliser is perfect for use with DSLR and Mirrorless Cameras. It's foldable design is great for content creators on the move and the intuitive feature set will empower filmmakers everywhere.

Weighing in at 1.2kg, the DJI Ronin SC-2 will hold up to 3kg of camera, lenses and accessories.

Compact Foldable Design

The foldable and compact design make for easy transportation and storage with the Ronin SC2 easily stored with your kit. Once folded out to full size you have a world of shooting options within reach.

The SC-2 has 5 different configurations for versatility with various shooting scenarios, making even the toughest shoots easier.

Folded down it comes in at just 18x19cm, a portable and powerful gimbal.

Stabilisation Evolved

The advanced Titan Stabilisation Algorithm ensure smooth footage capture and SuperSmooth adjusts for small micro movements while increasing torque.

Onboard Controls

A built-in dial on the front of the unit will complement an attached focus wheel for more precision zoom and focus. A 3D focusing system uses ToF sensors for measuring distances to your subject for sharper focus even in low light situations.

Switch to portrait mode easily with a tap for professional grade footage for your social media.

Expandable

A dual-layer mounting plate for the camera utilises Manfrotto and Arca Swiss standard plates for maximum compatibility.

OLED Screen

A built-in OLED screen provides control right there on the unit. At 1 inch it provides information and control without draining too much power. The advanced battery in the unit will provide 14 hours of runtime and fast charging is supported.


* Note: When using your DJI product for the first time, activation through a DJI app is required.

Peripheral

Accessory Connections

NATO port

M4 Mounting Hole

1/4”-20 Mounting Hole

Cold Shoe Mount

Video Transmission/ Follow Focus Motor Port (USB-C)

RSS Camera Control Port (USB-C)

Follow Focus Motor Port (USB-C)

Peripheral

Battery

Model: RB2-3400mAh -7.2 V

Type: 18650 2S

Capacity: 3400mAh

Energy: 24.48 Wh

Max Battery Life: 14 hours

Charging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)

Charging temperature: 5° to 40° C (41° to 104° F)

Peripheral

Connections

Bluetooth 5.0; USB-C

Peripheral

Ronin App Requirements

iOS 11 or above;

Android 7.0 or above

Working Performance

Load Weight (Reference Value)

3.0 kg (Handheld)

Working Performance

Maximum Controlled Rotation Speed

Pan axis: 360°/s

Tilt axis: 360°/s

Roll axis: 360°/s

Working Performance

Mechanical Range

Pan axis: 360° continuous rotation

Roll axis: -240° to +95°

Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency

2.4000-2.4835 GHz

Mechanical & Electrical Characteristics

Transmission Power

< 8 dBm

Mechanical & Electrical Characteristics

Operating Temperature

-20° to 45° C (-4° to 113° F)

Mechanical & Electrical Characteristics

Weight

Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)

Quick-Release Plate (Upper/Lower) Approx. 102 g

Extended Grip/Tripod (Metal): Approx. 226 g

Extended Grip/Tripod (Plastic): Approx. 160 g

Mechanical & Electrical Characteristics

Gimbal Dimensions

Folded: 260×210×75 mm (including the handle)

Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)

* Specifications subject to change by the manufacturer without notice

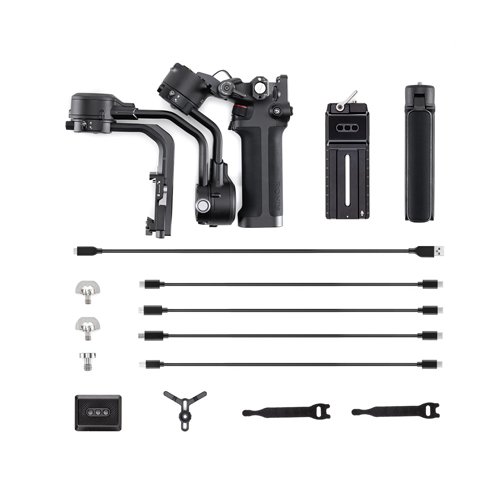

  • Gimbal (Built-In Battery)
  • USB-C Charging Cable (40 cm)
  • Lens Support
  • Quick-Release Plate (Arca-Swiss/Manfrotto)
  • Camera Riser
  • Multi-Camera Control Cable (USB-C, 30 cm)
  • Multi-Camera Control Cable (Sony Multi, 30 cm)
  • Multi-Camera Control Cable (Micro-USB, 30 cm)
  • Multi-Camera Control Cable (Mini-USB, 30 cm)
  • Hook-and-Loop Strap
  • D-Ring Camera Mounting Screw 1/4"-20
  • Screw 1/4"-20
  • Extended Grip/Tripod (Plastic)
