This is the DJI Ronin S-2 Combo Kit which, as well as the standard accessories included with the standard kit you also get multiple extra accessories such as a carry case. All accessories listed below.

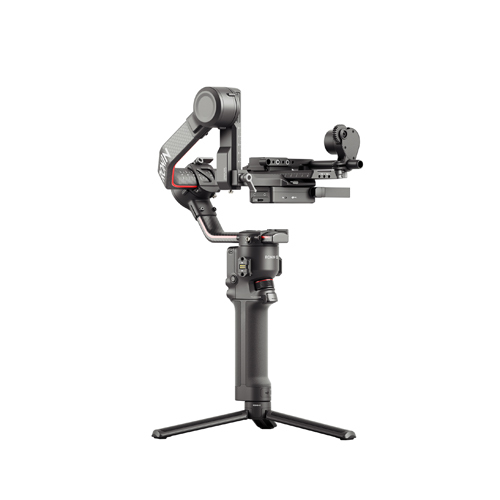

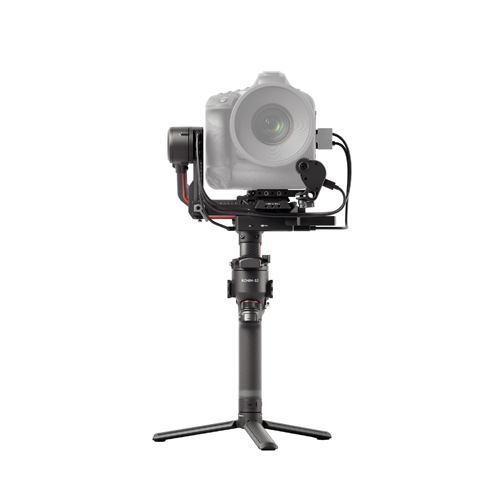

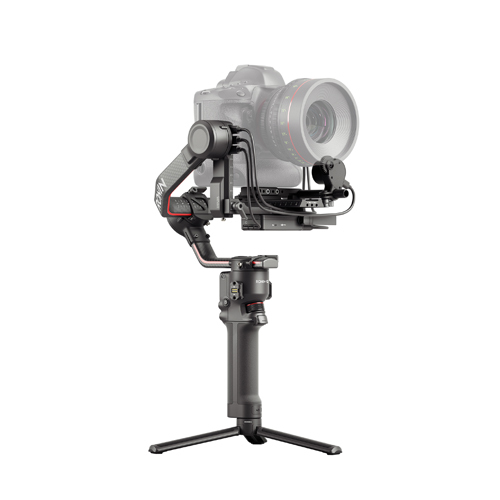

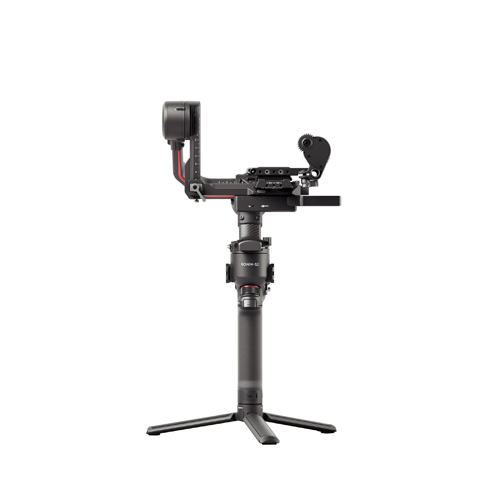

The DJI Ronin S2 is a dynamic solution for cinematography with industry leading stabalisation.

Strong & Lightweight

With a payload of 4.5kg it will take the largest of camera kits. The carbon fibre construction makes it strong and lightweight at just 1kg in unit weight

LCD Screen

A full colour touchscreen provides access to controls and ActiveTrack 3.0 directly on the gimbal, allowing you to focus on getting the shot. The unit also interfaces directly with the Ronin App.

Advanced Stabalisation

The advanced Titan Stabalisation Algorithm ensure smooth footage capture and SuperSmooth adjusts for small micro movements while increasing torque. You will be able to stabilise even larger lenses like a 100mm.

Unlimited Possibilities

While the Ronin S2 is designed to maximise usage with a single hand, it is also optimised for professional filmmaking requirements.

External Compatibility

The two RSA Ports are nato compatible allowing use of third party add-ons for various mounting and handling posibilites.

Onboard Controls

A built in dial on the front of the unit will complement an attached focus wheel for more precision zoom and focus. A 3D focusing system uses ToF sensors for measuring distances to your subject for sharper focus even in low light situations.

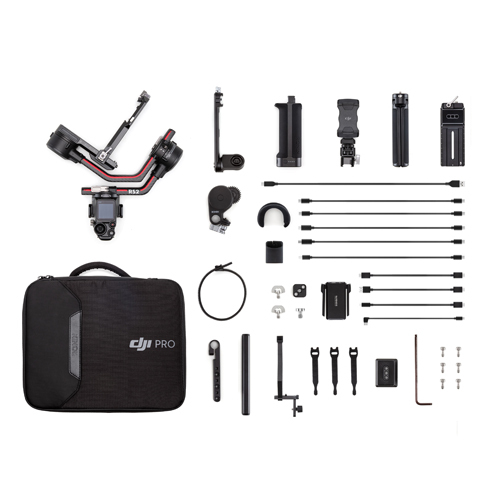

Combo Kit

Included in this kit are the accessories from the standard kit:
- Carrying Case
- BG30 Grip
- USB-C Charging Cable (40 cm)
- Lens-Fastening Strap
- Extended Grip/Tripod (Metal)
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Briefcase Handle
- Camera Riser
- Multi-Camera Control Cable (USB-C, 30 cm)
- Multi-Camera Control Cable (Sony Multi, 30 cm)
- Multi-Camera Control Cable (Micro-USB, 30 cm)
- Multi-Camera Control Cable (Mini-USB, 30 cm)
- RSA/NATO Port Cover
- Pan Axis Sleeve
- Screw 1/4"-20D-Ring Camera Mounting Screw 1/4"-20
- Hook-and-Loop Strap

As well as these extra accessories:
- Phone Holder
- Focus Motor
- Focus Motor Rod Mount Kit
- Focus Gear Strip
- Image Transmitter
- Cold Shoe to 1/4''-20 Adapter
- USB-C Power Cable (20 cm)
- Mini-HDMI to HDMI Cable (20 cm)
- Mini-HDMI to Mini-HDMI Cable (20 cm)
- Mini-HDMI to Micro-HDMI Cable (20 cm)
- M4 Screw (10 mm)
- Allen Wrench (3 mm)


* Note: When using your DJI product for the first time, activation through a DJI app is required.

Peripheral

Accessory Connections

RSA/NATO ports
1/4"-20 mounting hole
Cold shoe mount
Video transmission/follow focus motor port (USB-C)
RSS camera control port (USB-C)
Follow focus motor port (USB-C)

Battery

Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Power: 30.03 Wh
Max. Battery Life: 12 h
Charging Time: 1.5 h (24W USB adapter using the QC 2.0 or PD protocol)
Suggested Charging Temperature: 5°C to 40°C

Connections

Bluetooth 5.0; USB-C

Mobile Assistant Software Requirements

iOS 11 or above;
Android 7.0 or above

Languages supported by the touchscreen

English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload

4.5 kg (10.0 lbs)

Maximum Controlled Rotation Speed

Pan: 360°/s

Tilt: 360°/s

Roll: 360°/s

Mechanical Endpoint Range

Pan axis control: 360° continuous rotation

Roll axis control: -95° to +240°

Tilt axis control: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency

2.4000 GHz - 2.4835 GHz

Transmission Power

<8 dBm

Operating Temperature

-20° to 45° C (-4° to 113° F)

Weight

Gimbal: Approx. 1072 g (2.36 lbs) (excluding the Quick-Release Plates)
BG30 Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod: Approx. 226 g (0.50 lbs)
Upper and Lower Quick-Release Plates: Approx. 105 g (0.23 lbs)

Gimbal Dimensions

Folded: 260×265×70 mm (excluding the BG30 grip)
Unfolded: 410×260×195 mm (including the BG30 grip, excluding the extended grip/tripod)


* Specifications subject to change by the manufacturer without notice

  • 1x Phone Holder
  • 1x Focus Motor
  • 1x Focus Motor Rod Mount Kit
  • 1x Focus Gear Strip
  • 1x Image Transmitter
  • 1x Cold Shoe to 1/4''-20 Adapter
  • 1x USB-C Power Cable (20 cm)
  • 1x Mini-HDMI to HDMI Cable (20 cm)
  • 1x Mini-HDMI to Mini-HDMI Cable (20 cm)
  • 1x Mini-HDMI to Micro-HDMI Cable (20 cm)
  • 6x M4 Screw (10 mm)
  • 1x Allen Wrench (3 mm)
  • 1x Carrying Case
  • 1x Gimbal
  • 1x BG30 Grip
  • 1x USB-C Charging Cable (40 cm)
  • 1x Lens-Fastening Strap
  • 1x Extended Grip/Tripod (Metal)
  • 1x Quick-Release Plate (Arca-Swiss/Manfrotto)
  • 1x Briefcase Handle
  • 1x Camera Riser
  • 2x Multi-Camera Control Cable (USB-C, 30 cm)
  • 1x Multi-Camera Control Cable (Sony Multi, 30 cm)
  • 1x Multi-Camera Control Cable (Micro-USB, 30 cm)
  • 1x Multi-Camera Control Cable (Mini-USB, 30 cm)
  • 1x RSA/NATO Port Cover
  • 1x Pan Axis Sleeve
  • 1x Screw 1/4"-20
  • 2x D-Ring Camera Mounting Screw 1/4"-20
  • 3x Hook-and-Loop Strap
