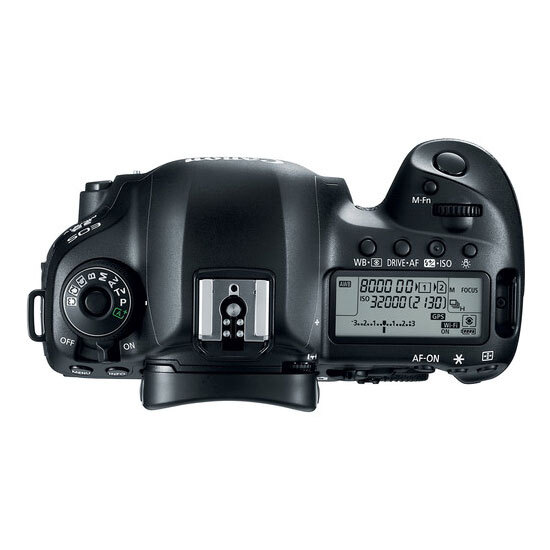

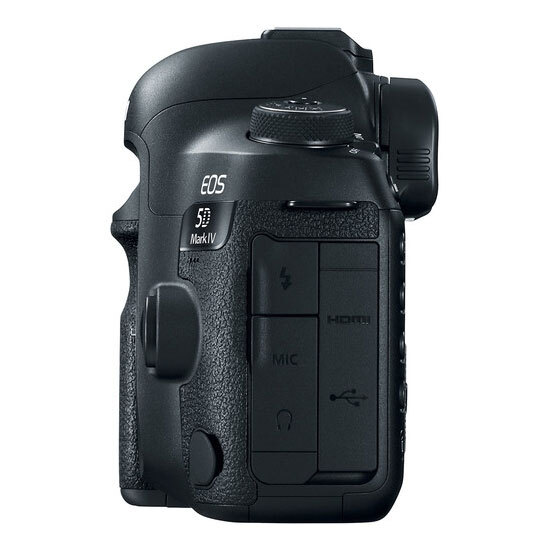

The Canon EOS 5D Mark IV is a high performance camera featuring an impressive 30.4 megapixel full frame CMOS sensor, a 3.2” touchscreen LCD Monitor and 7 frames per second of continuous shooting. It introduces 4K video recording into the 5D line-up as well as Canon’s innovative Dual Pixel RAW technology. Designed with both professional photographers and videographers in mind, the 5D IV delivers incredible results in any shooting scenario.

High Resolution 30.4 Megapixel Sensor

Flaunting a cutting edge 30.4 megapixel full frame sensor the Canon 5D Mk IV is able to capture a stunning 6720×4480 pixel images for ultra-high detail results. The increased megapixel count enhances the ability to crop into your shots, allowing for even more flexibility in post-production editing while preserving image quality.

Mirror Shake Suppression

The camera features a mirror vibration control system to supress any camera shake blur in order to ensure tack sharp results. The combination of high pixel output and vibration control means that you can be confident hand shooting high resolution images for advertising campaigns or exhibition work.

Upgraded DIGIC 6+ Processor

Canon adds the DIGIC 6+ Processor to the 5D series allowing an impressive 7 frames per second of continuous capture. The increased performance makes it perfect for photojournalism, weddings, or any fast paced photographic shoot. The new chip increases the readout speed from the sensor and helps to deliver enhanced image processing capabilities.

Dual Pixel RAW

Canon’s new Dual Pixel RAW file is an absolute game changer for photography, offering improved sharpness and a whole host of scrumptious features. By analysing the depth information provided by Canon’s dual pixel sensor, a post-process micro adjustment is possible, enabling tweaking of the final image to maximise sharpness.

Ground-breaking Post-Production Features

Ghosting and flare can be reduced with the Dual Pixel RAW files and it is even possible to shift the foreground bokeh in post-production providing photographers with a level of precision image control never before seen in a DSLR system.

Infra-red and RGB Metering Sensor

A 150,000 pixel metering sensor operates in a range of lighting conditions by reading both normal colour spectrums and infra-red light, split into 252 metering zones to ensure perfect exposure. The camera also offers anti-flicker shooting which is perfect for any scenes with artificial lighting like indoor sporting events.

4K Video Recording at 24, 25 and 30 fps

Building on the popularity of the 5D Mark III amongst videographers and filmmakers the Mark IV introduces true DCI 4K video (4096x2160) recording ability so that you can create ultra-high resolution footage and take advantage of the post production stabilisation and video cropping benefits of 4K.

8.8 Megapixel Stills from Video

The 5D IV includes a 4K photo mode, allowing you to export a high quality 8.8 megapixel jpeg frame from footage shot in 4K. This essentially means the Mark IV can shoot stills at up to 30 frames a second, ensuring ultra-fast action and decisive moments are captured with ease.

Slow Motion Video Capture

The improved readout speed from the processor also enables the camera to shoot 1080p video at 59fps and 119fps at 720p, making it possible to slow down the footage to create dreamy ethereal video scenes or capture quick movements with ease. The camera can also be connected to an external video recorder and outputs 4:2:2 video footage to ensure maximum creative versatility in post-production.

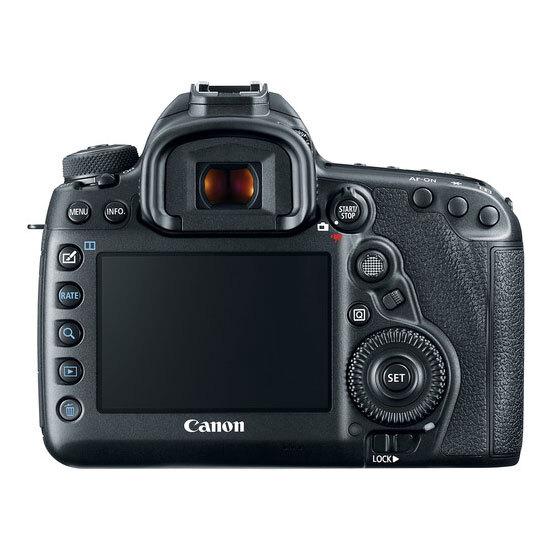

High Resolution Touchscreen LCD

The inclusion of a 3.2-inch touchscreen LCD means that you can set the auto focus point easily on the back screen and also pull focus between subjects when shooting video. It uses 1.62 million dots on the panel so you can review your images and video in high resolution to notice every detail.

61 Dual Pixel Autofocus Points

Using Dual Pixel technology also allows the Mark IV to deliver impressive focus results in both video and photo shooting. The camera uses a 61-point autofocus system to ensure quick and accurate performance with enhanced tracking across the frame. The focus system can operate in low light up to -3EV so it’s perfect for photojournalists who need reliable focus in demanding situations.

41 Cross-type Autofocus Points

With its 41 cross-type AF points, the camera offers lightning fast focus along both the vertical and the horizontal plane, the enhanced focus points make this camera perfect for sports or fast action shooting.

Astonishing Low Light Performance

The ISO range of the Canon 5D4 can be expanded all the way up to 102400 providing a massive variety of possible exposure adjustments and flexibility regardless of your lighting conditions. With a native ISO reaching up to 32000 and an enhanced noise reduction algorithm the low light performance of the camera is incredible making it one of the most versatile cameras on the market.

Additional Features

Crammed with a stack of on board processing and hardware add-ons the 5D mark IV features built-in Wi-Fi and NFC, a 2 axis electronic level, a time-lapse movie mode and Dual CF and SD card slots. It also boasts a new picture style “Fine Detail” which takes advantage of the new sensor to maximise image sharpness and clarity in-camera.

Robust and Weather Proof

Featuring a rugged magnesium alloy body the Canon 5D Mark 4 is weather and dust sealed to provide the upmost confidence even when shooting in hostile environments. This robust construction is perfectly matched to professionals who expect their gear to be able to handle some wear and tear and still consistently perform.

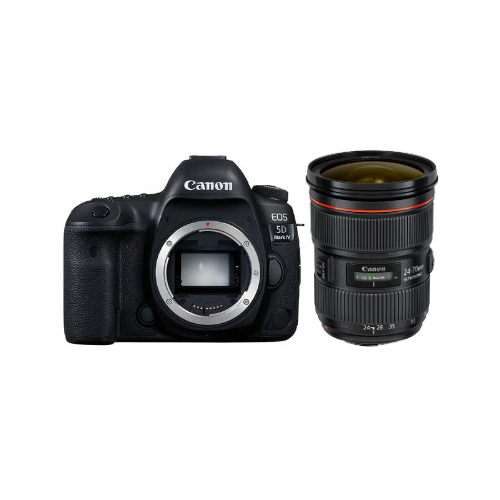

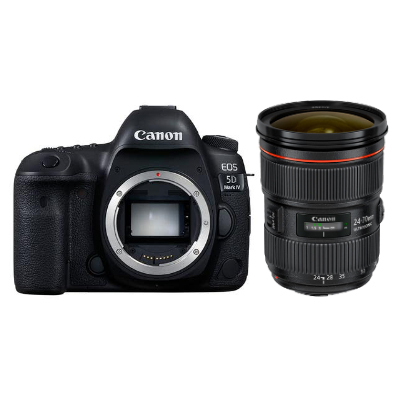

This kit includes the Canon 5DIV Camera Body + Canon EF 24-70mm f/2.8L II Lens

IMAGE SENSOR


Specification		 Details


Type



 36 x 24 mm CMOS


Effective Pixels



 Approx. 30.4 megapixels


Total Pixels



 Approx. 31.7 megapixels


Aspect Ratio



 3:2


Low-Pass Filter



 Built-in/Fixed


Sensor Cleaning



 EOS integrated cleaning system


Colour Filter Type



 Primary Colour



IMAGE PROCESSOR


Specification		 Details


Type



 DIGIC 6+



LENS


Specification		 Details


Lens Mount



 EF (excludes EF-S / EF-M lenses)


Focal Length



 Equivalent to 1.0x the focal length of the lens



FOCUSING


Specification		 Details


Type



 TTL-secondary image-forming phase-difference detection system with dedicated AF sensor


AF System/ Points


  • 61 Point / max of 41 cross-type AF points inc 5 dual cross type at f/2.8 and 61 points / 21 cross-type AF points at f/8 (1)
  • The number of cross-type AF points will differ depending on the lens.
AF working range



 EV -3 - 18 (at 23°C & ISO100)


AF Modes


  • One Shot
  • AI Focus
  • AI Servo AF
AF Point Selection


  • Automatic selection: All 61 point AF (based on EOS iTR AF setting)
  • Manual selection: Single point AF (selectable points 61, 15, 9 or cross type only points selectable)
  • Manual selection: Single point Spot AF
  • Manual selection: AF point Expansion 4 points (up, down, left, right)
  • Manual selection: AF point Expansion surrounding 8 points
  • Manual selection: Zone AF (all AF points divided into 9 focusing zones)
  • Manual selection: Large Zone AF (all AF points divided into 3 focusing zones)
  • AF points can be selected separately for vertical and horizontal shooting
Selected AF point display



 Transparent LCD in viewfinder and shown on Quick Control screen


AF Lock



 Locked when shutter button is pressed half way or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo


AF Assist Beam



 Emitted by an optional dedicated Speedlite


Manual Focus



 Selected on lens


AF Microadjustment


  • Manual: Enter adjustment +/- 20 steps (wide and tele setting for zoom lenses)
  • Adjust all lenses by same amount
  • Adjust up to 40 lenses individually
  • Adjustments remembered for lens by serial number

EXPOSURE CONTROL


Specification		 Details


Metering modes


  • Approx. 150,000-pixel RGB+IR metering sensor, 252-zone metering. EOS Intelligent Subject Analysis system
  • (1) Evaluative metering (linked to All AF point)
  • (2) Partial metering (approx. 6.1% of viewfinder at centre)
  • (3) Spot metering: Center spot metering (approx. 1.3% viewfinder at centre)
  • AF point-linked spot metering not provided
  • (4) Centre weighted average metering
Metering Brightness Range



 EV 0 - 20 (at 23°C, ISO100, with evaluative metering)


AE Lock


  • Auto: In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved
  • Manual: By AE lock button in P, Av, Tv and M modes
Exposure Compensation



 +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).


AEB



 +/-3 EV in 1/3 or 1/2 stop increments


Anti-flicker shooting



 Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease


ISO Sensitivity (1)


  • Auto 100-32000 (in 1/3-stop or whole stop increments)
  • ISO can be expanded to L:50, H1: 51200, H2: 102400,

SHUTTER


Specification		 Details


Type



 Electronically-controlled focal-plane shutter


Speed



 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)


Shutter Release



 Soft touch electromagnetic release



WHITE BALANCE


Specification		 Details


Type



 Auto white balance with the imaging sensor


Settings


  • AWB (Ambeince priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
  • White balance compensation:
  • 1. Blue/Amber +/-9
  • 2. Magenta/ Green +/-9
Custom White Balance



 Yes, 1 setting can be registered


WB Bracketing


  • +/-3 levels in single level increments
  • 3, 2, 5 or 7 bracketed images per shutter release
  • Selectable Blue/Amber bias or Magenta/ Green bias

VIEWFINDER


Specification		 Details


Type



 Pentaprism


Coverage (Vertical/Horizontal)



 Approx. 100%


Magnification



 Approx. 0.71x(4)


Eyepoint



 Approx. 21mm (from eyepiece lens centre)


Dioptre Correction



 -3 to +1 m-1 (dioptre)


Focusing Screen



 Fixed, with information Transparent LCD overlay


Mirror



 Quick-return half mirror


Viewfinder Information


  • AF information: Single/Spot AF points, AF Frame, AF status, Focus indicator, AF mode, AF point selection, AF point registration
  • Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, flash metering, spot metering circle, exposure warning, AEB, metering mode, shooting mode
  • Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
  • Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+), JPEG/RAW indicator, Dual Pixel RAW, Digital Lens Optimizer.
  • Composition information: Grid, Electronic level
  • Other information: Battery check, Warning symbol, Flicker Detection, drive mode, white balance
Depth of field preview



 Yes, with Depth of Field preview button


Eyepiece shutter



 On strap



LCD MONITOR


Specification		 Details


Type



 8.10cm (3.2") Clear View LCD II, approx. 1620K dots


Coverage



 Approx. 100%


Viewing Angle (horizontally/vertically)



 Approx 170° vertically and horizontally


Coating



 Anti-reflection and Anti-smudge. Reinforced glass incorporated


Brightness Adjustment


  • Manual: Adjustable to one of seven levels
  • Color Tone Adjument: 4 settings
Touch-screen operations



 Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in Live View and Movies, touch shutter is possible in Live View still photo shooting.


Display Options


  • (1) Quick Control Screen
  • (2) Camera settings
  • (3) Dual Axis Electronic Level
  • (4) Custom Quick Control Screen

FLASH


Specification		 Details


Modes



 E-TTL II Auto Flash, Metered Manual


X-sync



 1/200sec


Flash Exposure Compensation



 +/- 3EV in 1/3 increments with EX series Speedlites


Flash Exposure Bracketing



 Yes, with compatible External Flash


Flash Exposure Lock



 Yes


Second Curtain Synchronisation



 Yes


HotShoe/ PC terminal



 Yes/ Yes


External Flash Compatibility



 E-TTL II with EX series Speedlites, wireless multi-flash support


External Flash Control



 via camera menu screen



SHOOTING


Specification		 Details


Modes



 Scene Intelligent Auto, Program AE , Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb and Custom (x3)


Picture Styles



 Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)


Colour Space



 sRGB and Adobe RGB


Image Processing


  • Highlight Tone Priority
  • Auto Lighting Optimizer (4 settings)
  • Long exposure noise reduction
  • High ISO speed noise reduction (4 settings)
  • Lens optical correction (1)
  • - Peripheral illumination correction, Chromatic aberration correction (during/after still photo shooting, during Video only)
  • - Distortion correction, Diffraction correction, Digital Lens Optimizer (during/after still photo shooting)
  • Resize to M, S1, S2 or S3 (2)
  • Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
  • - 45 cropping sizes selectable, from 11% to 95% (diagonal)
  • - Switch between vertical and horizontal cropping orientation
  • - Cropping frame can be moved using touch screen operation
  • RAW image processing (3)
  • Multiple exposure
Drive modes



 Single, Continuous High, Continuous Low, Silent Single, Silent Continuous, Self timer (2s+remote, 10s+remote)


Continuous Shooting


  • Max. Approx. 7fps. with full AF / AE tracking, speed maintained for up to unlimited number of JPEGs or 21 RAW images (1) (2) (3)
  • Max. 4.3fps in Live View mode with AF Tracking
Interval timer



 Built-in, number of shots selectable from 1-99 or unlimited (Selectable interval time - 1sec to 99hr 59mins 59sec). Bulb timer possible (Selectable time - 1sec to 99hr 59mins 59sec)



LIVE VIEW MODE


Specification		 Details


Type



 Electronic viewfinder with image sensor


Coverage



 Approx. 100% (horizontally and vertically)


Frame Rate



 29.97 fps (may increase when AF is performed)


Focusing


  • Manual Focus (Magnify the image 5x or 10x at any point on screen)
  • Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, FlexiZone - Single, FlexiZone - Multi), available with all EF lenses and Touch shutter
Metering


  • Real-time evaluative metering with image sensor (315-zone)
  • Partial metering (approx. 6.3% of Live View screen)
  • Spot metering (approx. 2.7% of Live View screen)
  • Center-weighted average metering
  • Active metering timer can be changed
Display Options


  • 4 levels available through INFO. button: No information, Basic shooting information, Advanced shooting information and Advanced shooting information with Histogram
  • Multiple Exposure status also avaible in Multiple Exposure mode

FILE TYPE - STILLS


Specification		 Details


Still Image Type


  • JPEG: 3 compression options
  • RAW: RAW, M-RAW, S-RAW and Dual Pixel RAW (14bit, Canon original RAW 2nd edition)
  • Complies with Exif 2.30 and Design rule for Camera File system 2.0
  • Complies with Digital Print Order Format [DPOF] Version 1.1
RAW+JPEG simultaneous recording



 Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible including Dual Pixel RAW +JPEG


Image Size


  • JPEG:
  • 3:2 ratio (L) 6720x4480, (M1) 4464x2976, (S1) 3360x2240 , (S2) 1696x1280 , (S3) 640x480
  • 4:3 ratio (L) 5952x4480, (M1) 3968x2976, (S1) 2976x2240 , (S2) 1920x1280 , (S3) 720x480
  • 16:9 ratio (L) 6720x3776, (M1) 4464x2512, (S1) 3360x1888 , (S2) 1920x1080 , (S3) 720x408
  • 1:1 ratio (L) 4480x4480, (M1) 2976x2976, (S1) 2240x2240 , (S2) 1280x1280 , (S3) 480x480
  • RAW:
  • (RAW) 6720x4480, (M-RAW) 5040x3360, (S-RAW) 3360x2240
Folders



 New folders can be manually created and selected


File Numbering


  • (1) Consecutive numbering
  • (2) Auto reset
  • (3) Manual reset

EOS MOVIE


Specification		 Details


Movie Type


  • MOV Video: 4K (17:9) 4096 x 2160 - Motion JPEG (internal recording only), (1) Full HD, HD - MPEG4 AVC / H.264 variable (average) bit rate, Audio: Linear PCM
  • MP4 Video: Full HD (16:9) 1920 x 1080 - MPEG4 AVC/H.264, Audio: AAC
Movie Size


  • 4K (17:9) 4096 x 2160 (29.97, 25, 24, 23.98 fps) Motion JPEG
  • Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame (1)
  • Full HD (16:9) 1920 x 1080 HDR ( 29.97, 25 fps) inter frame (1)
  • Full HD (16:9) 1920 x 1080 (29.97, 25) lite inter frame
  • HD (16:9) 1280 x 720 (119.9, 100 fps) intra frame
Colour Sampling (Internal recording)


  • 4K - YCbCr4:2:2 (8 bit)
  • Full HD/ HD - YCbCr4:2:0 (8 bit)
Movie Length



 4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT CF card


High Frame Rate Movie


  • MOV Video: HD - 1280 x 720 at 100fps or 119.9fps
  • Recorded as 1/4-speed slow motion movie
  • Single scene maximum recording up to 7min 29sec.
4K Frame Grab



 8.8 megapixel JPEG still image frame grab from 4K movie possible


Bitrate / Mbps


  • MOV:
  • 4K (29.97p/25.00p/24.00p/23.98p): Approx. 500 Mbps
  • Full HD (59.94p/50.00p)/ALL-I: Approx. 180 Mbps
  • Full HD (59.94p/50.00p)/IPB Approx. 60 Mbps
  • Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 90 Mbps
  • Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
  • HD (119.9p/100.0p)/ALL-I: Approx. 160 Mbps
  • MP4:
  • Full HD (59.94p/50.00p)/IPB (Standard): Approx. 60 Mbps
  • Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
  • Full HD (29.97p/25.00p)/IPB (Light): Approx. 12 Mbps
Microphone



 Built-in monaural microphone (48Khz, 16 bit x 2 ch)


HDMI Display



 External monitor only, External Monitor only without information display or Simultaneous on camera and external monitor


HDMI Output



 Full HD recording only, uncompressed YCbCr 4:2:2, 8-bit, sound output via HDMI is also possible


Focusing


  • Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF
  • Manual Focus
ISO


  • 4K - Auto: 100-12800, H: 25600, H: 32000, H1: 51200, H2: 102400,
  • Full HD / HD - Auto: 100-25600, H: 32000, H1: 51200, H2:102400

BUILT-IN GPS


Specification		 Details


Geotag Information



 Longitude, Latitude, Elevation, Coordinated Universal Time


Positioning Modes


  • Mode 1: Camera continues to receive GPS signals at regular intervals when power is switched off
  • Mode 2: GPS is switched off when power is switched off
Position Update Timing



 Intervals of 1 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min. or 5 min.


Position Accuracy



 Within approx. 30 m/98.4 ft (Based on good GPS satellite reception conditions on a clear day with no surrounding obstructions)


Compatible Satellite Navigation Systems


  • • GPS satellites (USA)
  • • GLONASS satellites (Russia)
  • • Quasi-Zenith Satellite Michibiki (Japan)
Log Files Format



 NMEA Format. One log file per day based


Log File Usage


  • Transfer log data to memory card and copy it to a computer
  • Use Map Utility to append the log file to the images
Digital Compass



 Not provided



OTHER FEATURES


Specification		 Details


Custom Functions



 17 Custom Functions with 46 settings


Metadata Tag


  • User copyright information (can be set in camera)
  • Image rating (0-5 stars)
  • IPTC data (registered with EOS Utility)
  • Image transfer with caption (Caption registered with EOS Utility)
LCD Panel / Illumination



 Yes / Yes


Water/ Dust resistance



 Yes


Voice Memo



 No


Intelligent Orientation Sensor



 Yes


Playback zoom



 1.5x - 10x in 15 steps


Display Formats


  • (1) Single image
  • (2) Single image with information (2 levels )
  • Basic - Shooting information (shutter speed, aperture, ISO and Image quality)
  • Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information , Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information
  • (3) 4 image index
  • (4) 9 image index
  • (5) 36 image index
  • (6) 100 image index
  • (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)
  • (8) Movie edit
  • (9) RAW processing
  • (10) Rating
Slide Show


  • Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
  • Playback time: 1/2/3/5/10 or 20 seconds
  • Repeat: On/Off
Histogram


  • Brightness: Yes
  • RGB: Yes
Highlight Alert



 Yes


Image Erase



 Single image, Selected images, Folder, Card


Image Erase Protection



 Erase protection of Single image, Folder or Card


Self Timer



 2 or 10 sec.


Menu Categories


  • (1) Shooting menu 1 - 6
  • (2) AF Menu 1 - 5
  • (3) Playback menu 1 - 3
  • (4) Setup menu 1 - 5
  • (5) Custom Functions menu 1 - 5
  • (6) My Menu (1 - 5 user selectable)
Menu Languages


  • 25 Languages
  • English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update



 Update possible by the user (Camera, Lens, WFT, External Speedlite)



INTERFACE


Specification		 Details


Computer



 SuperSpeed USB 3.0


WiFi


  • Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support [1]
  • Features supported - FTP/FTPS, EOS Utility, SmartPhone, Upload to Web , Wireless printing
Other



 HDMI mini out (Type C, HDMI-CEC compatible), External Microphone In / Line In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal)



DIRECT PRINT


Specification		 Details


PictBridge



 Yes (Via Wireless LAN only)



STORAGE


Specification		 Details


Type


  • 1x CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive)
  • 1x SD/SDHC/SDXC and UHS-I

SUPPORTED OPERATING SYSTEM


Specification		 Details


PC & Macintosh


  • Windows 7 (excl. Starter Edition) Windows 8 and Windows 10
  • OS X v10.7-10.11

SOFTWARE


Specification		 Details


Image Processing



 Digital Photo Professional 4.5 or later (RAW Image Processing)


Other



 EOS Utility 3.5 or later (inc. Remote Capture ), Picture Style Editor, Map Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/ Android)



POWER SOURCE


Specification		 Details


Batteries



 Rechargeable Li-ion Battery LP-E6N (supplied) / LP-E6


Battery life


  • Approx. 900 shots (at 23°C) (1)
  • Approx. 850 (at 0°C)
Battery Indicator



 6 levels + percentage


Power saving



 Power turns off after 1, 2, 4, 8, 15 or 30mins


Power Supply & Battery Chargers



 Battery charger LC-E6E (supplied), Battery charger LC-E6, AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6



PHYSICAL SPECIFICATIONS


Specification		 Details


Body Materials



 Magnesium Alloy body and polycarbonate with glass fiber Prism cover


Operating Environment



 0 – 40 °C, 85% or less humidity


Dimensions (WxHxD)



 150.7 x 116.4 x 75.9mm


Weight (body only)



 Approx. 890 g



ACCESSORIES


Specification		 Details


Viewfinder



 Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Angle Finder C


Wireless File Transmitter



 Wireless File Transmitter WFT-E7B


Lenses



 All EF lenses (excluding EF-S / EF-M lenses)


Flash



 Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX-II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)


Remote Controller/ Switch



 Remote control with N3 type contact, Wireless Controller LC-5 and Speedlite 600EX-II-RT


Other



 BG-E20 battery grip, Hand Strap E2, Connect Station CS100



FOOTNOTES


Specification		 Details


Disclaimer


  • All data is based on Canon standard testing methods except where indicated.
  • Subject to change without notice.
AF System/ Points



 (1) The number of AF points, cross-type AF points, and dual cross-type AF points vary depending on the lens used


ISO Sensitivity



 (1) Recommended Exposure Index


Magnification



 (1) with 50mm lens at infinity, -1m-1 dpt


Image Processing


  • (1) Not possible with M-RAW and S-RAW
  • (2) Frame grab images from 4K movies and images shot in S3 quality cannot be resized
  • (3) RAW image processing during image Playback only with RAW and Dual Pixel RAW only
Continuous Shooting


  • (1) Large/Fine resolution
  • (2) Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Maximum fps and buffer capacity may be reduced depending on the cameras settings, light level, subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
  • (3) Figures quoted are when used with UDMA 7 Compact flash memory card
Movie Type



 (1) Minimum card write speed required for 4K 30p recording: CF – 100MB/sec


WiFi



 (1) Wi-Fi use may be restricted in certain countries or regions


Battery life



 (1) Viewfinder shooting. Based on the CIPA Standard and using the battery supplied with the camera, except where indicated






Specification of Canon Lens 24-70mm EF f/2.8L II USM





Focal Length & Max Aperture

24-70mm 1:2.8

Picture Size

35mm Full Size

Filter Diameter

82mm

Lens Construction

18 elements in 13 groups

Minimum Aperture

f/22

Closest Focusing Distance

0.38m

Focus Drive

Ring USM

Dimensions

88.5mm x 113.0mm


* Specifications subject to change by the manufacturer without notice



  • EOS 5D Mark IV Body
  • Battery Pack (LP-E6N)
  • Battery Charger (LC-E6E)
  • Eyecup
  • Wide Strap
  • Interface Cable (IFC-150U II)
  • Cable Protector
  • Canon Lens EF 24-70mm f/2.8L II

    • Reviews

    * Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
