Connect, Convert, Stream

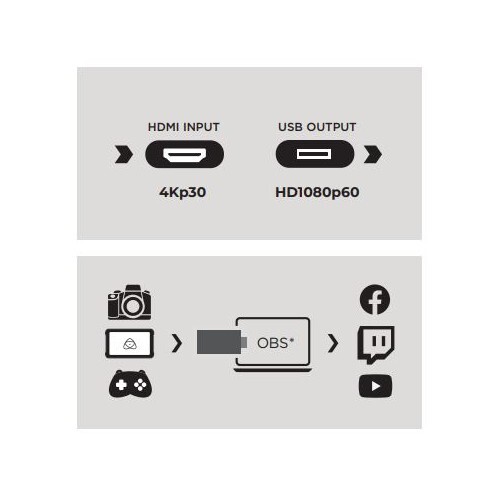

The Atomos Connect 4K is designed to capture 4K (up to 30p), HD (up to 60p) or 720p (up to 60p) video streams from an HDMI source and convert it to a USB input on a computer and delivers the same resolution and frame rate up to a maximum of 1080p60.

Easy Operation

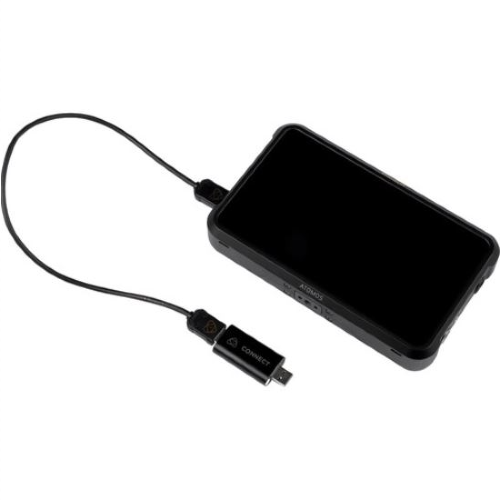

The Atomos Connect 4K allows you to go Live by simply connecting the HDMI output of your streaming platform such as Atomos monitor recorder, camera or console to the Atomos Connect. The device automatically converts your input to the widely supported USB Video Class (UVC) standard.

Universally Supported

The Atomos Connect 4K is supported by any CDN/Social platform that supports UVC including Skype, MS Teams, Zoom, Twitch, YouTube, etc.

*Note: To successfully connect, your computer requires application including OBS, StreamLabs OBS, Wirecast or X-Split for enhanced streaming.

SPECIFICATIONS

HDMI input

up to 4Kp30

USB output resolution

up to 1080p60 (YUV.JPEG)

Colour depth

Supports 8/10/12-bit deep colour

HDMI Support

Certified AWG26 HDMI cables up to 15 meters

Software support

Popular acquisition software on Windows, Android & Mac OS

USB support

Conforms to USB Video and UVC standard Conforms to USB Audio UAC standard (L-PCM format)

Power

No external power required

Maximum working current

0.4A / 5V DC

Operating temperature range

-10 to +55 °C

Dimensions (L x W x H)

64 x 28 x 13mm.

Weight

21.4g

SYSTEM REQUIREMENTS

PC i5-3400 or above

NB i7-3537U 2.0GHZ or above

Graphics card

PC NVIDIA GT630 or above.

NC NVIDIA GT735M or above

Run memory

4G RAM


* Specifications subject to change by the manufacturer without notice
  • 1 x Atomos Connect HDMI to USB Converter
  • 1 x User manual
