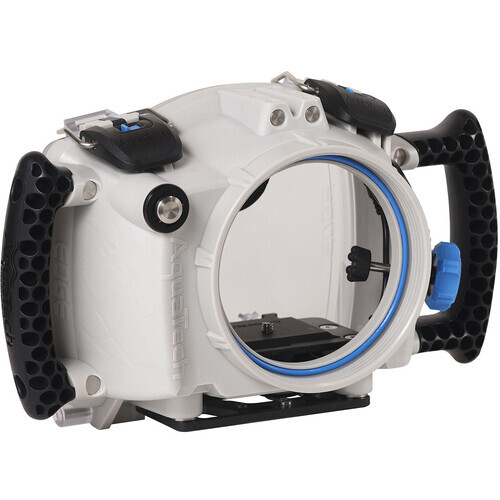

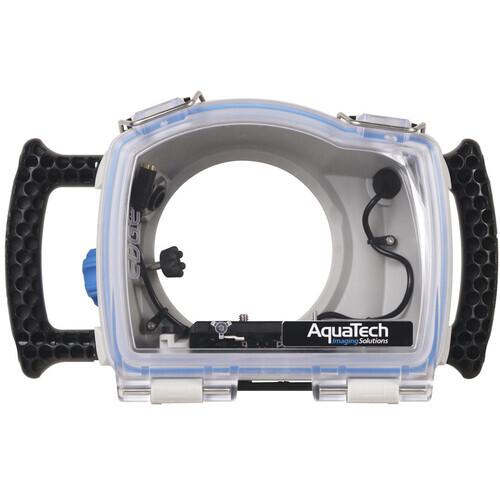

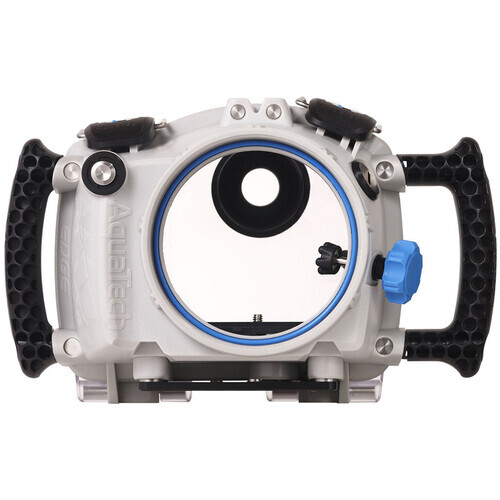

The Aquatech EDGE Sport Housing Base to suit the Canon R5 and Canon R6 - Grey is a compact and advanced, underwater housing base for both professionals and enthusiast.

This product requires an optional Base Adapter/Backplate to suit the Canon R5 or Canon R6 to work.

Expanding on over 20 years of design principles and experience from Aquatech is compact and ergonomic to suit the mirrorless range of cameras while still offering advanced control and operation. This is a great option for the new generation of creatives who are shooting both photographs and video.

Redesigned Clip System

The AquaTech Edge System uses a clip system that has been completely redesigned to be more ergonomic in both portrait and landscape mode. This makes content creation for multiple formats, such as Social Media, simpler.

Compact & Functional

A reduced form factor matches the compact size of the mirrorless cameras and means that the housing moves more easily though the water.

A newly designed eyepiece gives excellent clarity when using the electronic viewfinder, ensuring that you can properly line up your shot. The raised design ensures locating the EVF is quick and also ensures that harsh external lights are blocked out.

P Series Port Compatible

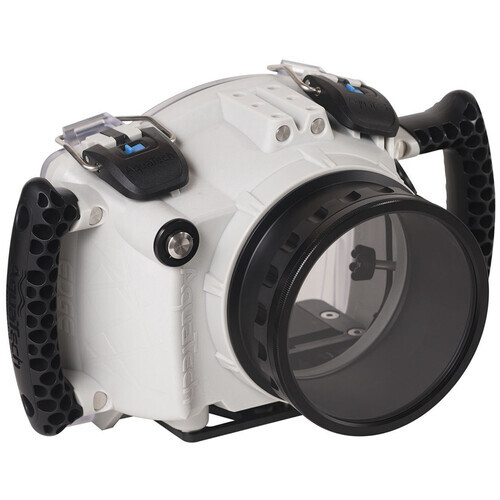

The range of EDGE Series Sport Housings is compatible with the Aquatech's interchangeable P-Series Ports with support for a large range of lenses. Users of current P Series Ports will be able to use them across systems.

Geared for Video

A range of features to suit videographers and filmmakers make this a truly universal system. A right hand grip and palm stopper provides an added level of stability when capturing video. You can be sure of clearer video with less handshake. For those chasing additional support, an optional side handle can be added, this increases stability and allows a firmer grip.

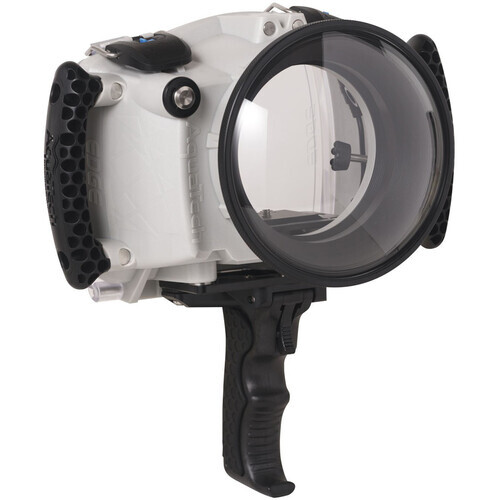

The optional Aquatech M3 Pistol Grip can be used, attaching underneath the housing, in conjunction with the other handles or individually.

Access & Flexibility

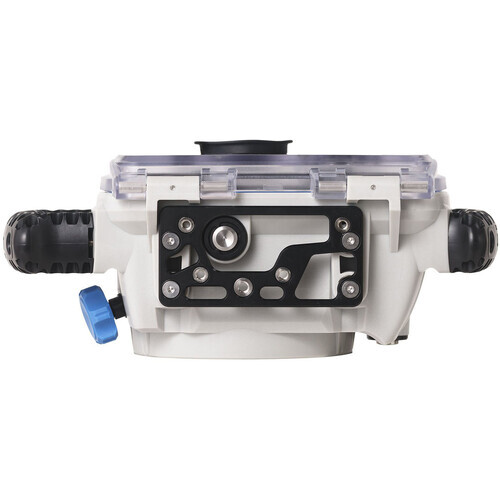

The newly designed quick release back plate on the EDGE gives you flexibility with quick access. Lining up the backplate (sold separately) is simple with a self-locating design, making sure that your controls match up properly.


Polycarbonate body, Marine grade Stainless Steel 316 controls as well as Hard Anodized Aluminum controls, Safety Clips (two action)


Dual AF



Width = 204 mm (8.03”), Height = 176 mm (6.9”), Front to Back = 130mm (5.11”)



1.25Kg (2.75lb)


Depth Rating

10 meters (33 ft)


Adapter Kits

10191 EDGE Base Adapter for Canon R5/6

10192 EDGE Base Adapter for NikonModel TBA

10193 EDGE Base Adapter for Sony (see below)

(a7rIII, a7III, a9, a7sIII, a7rIV, a9II)

Port Systems

P Series Lens Ports


Lighting Options

Lux Flash Housing and Sync Transmitter Housing


Whats in the Box

EDGE Sport Housing, Cable Release, Side Handle, Palm Stopper, Instructions, Tool Kit

Optional Grip System

M3 Pistol Grip

Conversion Kit

Can be converted to upgrade to a new camera model if the conversion kit is available at the time.


V3 Pro Mount

Spare Parts and Repairs

Most parts are interchangeable and are available as spares. We recommend that repairs and maintenance are only carried out by skilled technicians at AquaTech service centers.

* Specifications subject to change by the manufacturer without notice
