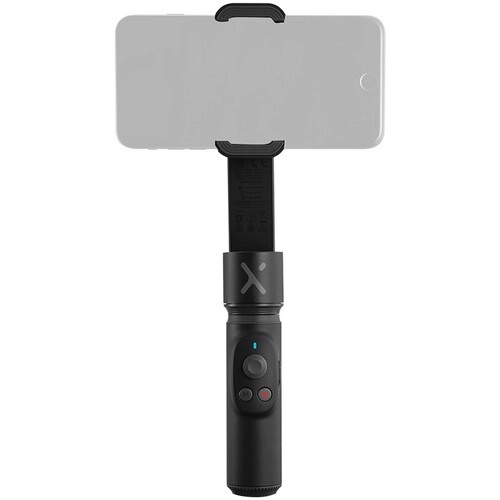

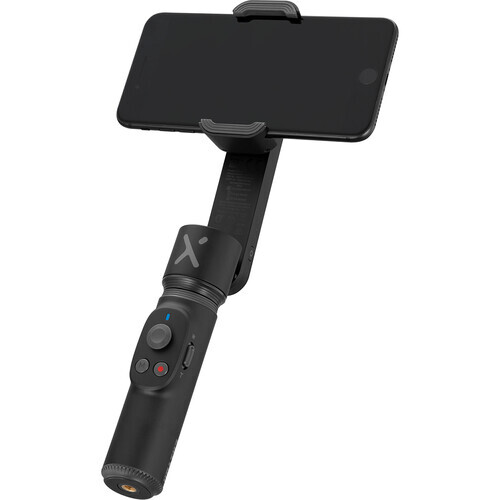

The Zhiyun Smooth XS – 2-Axis Gimbal Black with a built-in selfie stick is designed to enhance filmmaking experience with your smartphone. Although small, this gimbal is mighty and punches well above its weight. It supports phones up to 3.5" wide, including the iPhone XS Max, and it runs for up to 5.5 hours on a built-in battery.

ZY Cami iOS/Android Companion App

This ultra-compact gimbal offers automated functions such as tracking via the companion app. Also, the ZY Cami iOS/Android app allows the user to use a hand gesture to start recording or capture photo. Besides, you are able to continually track and follow the subject via app's SmartFollow 2.0 tracking feature. In addition, one-touch beautification tool allows you to instantly adjust your images or customise the setting manually based on different scenarios.

Panorama, Slow-motion, Time-lapse, Hyper-lapse, and Motion-lapse

The Zhiyun Smooth XS features slow-motion, motion-lapse, time-lapse, hyper-lapse and panorama as well as SMART mode which allows you to choose from a range of built-in templates. By using the SMART mode, you can automatically add certain camera movements, colour grading, transitions, special effects and music, depending on the template.

Collapsible and Ultracompact Design

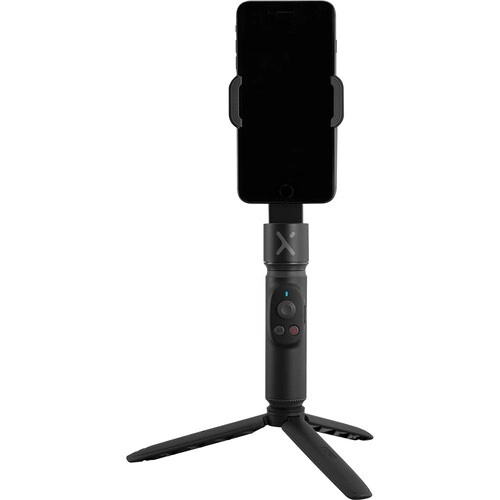

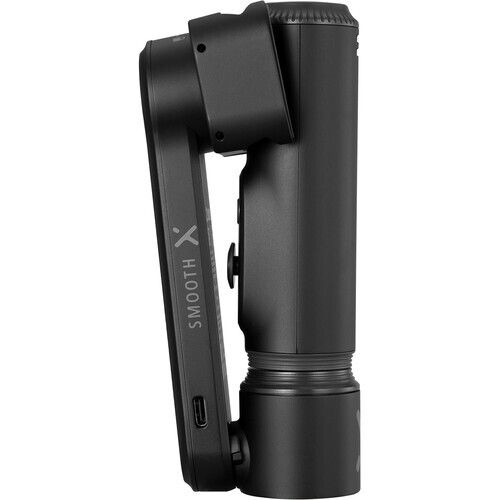

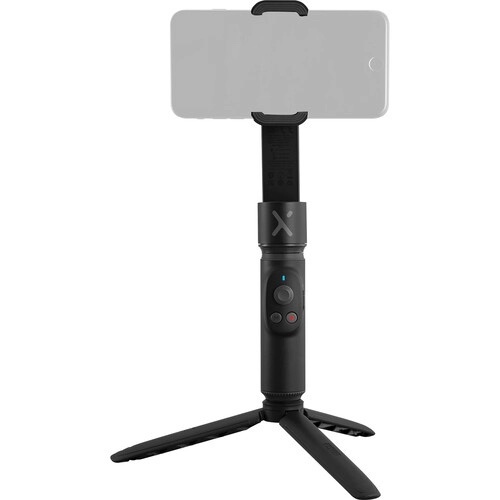

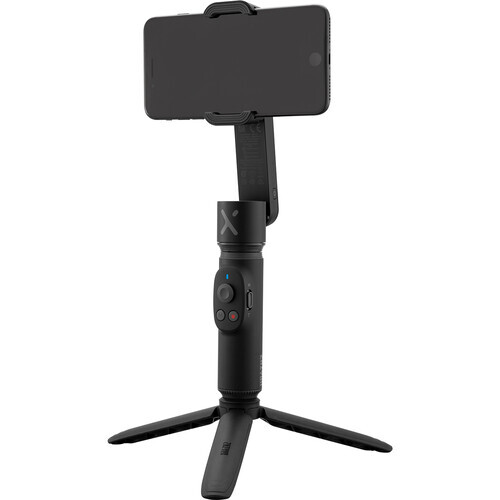

The Zhiyun Smooth XS is collapsible and can be set on the included mini tripod to work hands-free. Its compact design allows you to slide down the upper section to make storage and travel easier. When ready to shoot, just slide that section up and begin, or telescope out the integrated selfie stick for even more capability. It offers an extendable selfie stick with up to 26cm length allowing you to capture shots from different angles in both landscape and portrait modes.

Up to 5.5-hour Built-in Battery

This gimbal includes a USB cable, storage bag and a safety hand strap. It is powered by an internal battery which operates up to 5.5 hours and can be charged via USB cable with a standard USB charger or a USB power bank.

Note: Smartphone is not included.

Tech Specs.

Item

Min.

Standard

Max.

Operation Voltage

3.4V

3.7V

4.2V

Operation Current

220mA

-

3000mA

Charging Voltage

4.7V

5V

5.5V

Charging Current

500mA

-

850mA

Following Deviation in Static State

±0.01°

-

±0.04°

Following Deviation in Motion State

±0.05°

±0.1°

±0.3°

Roll Mechanical Range

-

268°

-

Pan Mechanical Range

-

290°

-

Controllable Roll Angle

-40°

-

180°

Controllable Pan Angle

-110°

-

+145°

Charging Temperature

-10?

25?

45?

Operation Temperature

0?

25?

40?

Battery Capacity

-

1000mAh

-

Battery Runtime *1

-

4h

5.5h

Charging Time *2

-

3h

-

Valid Payload

200±35g

Dimension (W*D*H)

61 x 56 x 188mm(folded size)

69*56*267mm(unfolded size)


Mounting Clamp Supporting Range

50mm

-

90mm

Smartphone Thickness

7.5mm

-

9.5mm

Extendable Grip

0

-

260mm

Bluetooth

Low Power Consumption Bluetooth 5.0

equivalent isotropically radiated power(EIRP)

= 4 dbm

Operation Frequency

2.400 - 2.4835 GHz

Compatible Models

Smartphones that their width is within the holder's capable width.

*1: The above data is collected under the below conditions: a specified temperature of 25? ; the stabilizer has been balanced and mounted with an iPhone XR. The test time under the active state is 4 hours. The test time under standby state is 5.5 hours.

*2: This test is conducted with a 5V/2A rated power adapter at a specified temperature of 25 ? . The actual charging time varies with environmental factors. Besides, the lower the temperature, the longer the charging time. All the data in this guide is gathered from internal experiments of ZHIYUN laboratories. Under different scenarios, data is different to some extent. Please refer to the actual use of SMOOTH X.


* Specifications subject to change by the manufacturer without notice

  • 1 x SMOOTH-XS Stabilizer
  • 1 x USB Type-C Charging Cable
  • 1 x Quick Start Guide
  • 1 x Tripod
  • 1 x SM110 Storage Bag
  • 1 x SM110 Hand Strap
