Key Features:
- 5K full-frame stacked Exmor RS CMOS sensor
- BIONZ XR2 processor with integrated AI processing
- Internal 16-bit X-OCN compressed RAW recording
- Full-frame Open Gate recording support
- Three Base ISO settings: 800, 4000 and 12800
- Dual Gain Shooting for enhanced dynamic range
- Up to 759 phase-detection autofocus points
- AI-based subject recognition
- 3.5-inch 16:9 touch-panel monitor
- 96kHz/32-bit float audio support with optional XLR-H2
- Wi-Fi, Bluetooth 5.3 and 2.5G wired LAN connectivity
- Lightweight 734g body-only design
- Includes Sony XLR-H2 Handle Unit

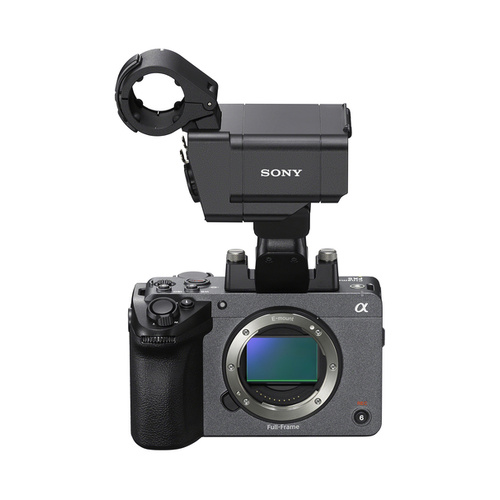

Sony FX5 Full-Frame Cinema Camera with XLR-H2 Handle
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 5K full-frame stacked Exmor RS CMOS sensor
- BIONZ XR2 processor with integrated AI processing
- Internal 16-bit X-OCN compressed RAW recording
- Full-frame Open Gate recording support
- Three Base ISO settings: 800, 4000 and 12800
- Dual Gain Shooting for enhanced dynamic range
- Up to 759 phase-detection autofocus points
- AI-based subject recognition
- 3.5-inch 16:9 touch-panel monitor
- 96kHz/32-bit float audio support with optional XLR-H2
- Wi-Fi, Bluetooth 5.3 and 2.5G wired LAN connectivity
- Lightweight 734g body-only design
- Includes Sony XLR-H2 Handle Unit
You May Also Like
The Essentials:
Sony FX5 Full-Frame E-Mount Cinema Camera with XLR-H2 Handle
The Sony FX5 with XLR-H2 Handle is a professional full-frame cinema camera built for filmmakers who demand exceptional image quality, advanced audio recording and flexible production workflows. Combining Sony's latest imaging technology with the included XLR-H2 Handle Unit, the FX5 is ready for documentaries, commercials, broadcast, corporate video production and cinematic filmmaking straight out of the box.

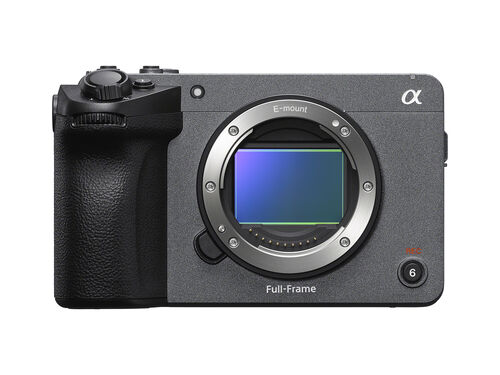

Featuring a 5K full-frame stacked Exmor RS CMOS sensor and the powerful BIONZ XR2 processor with integrated AI processing, the FX5 delivers stunning detail, fast sensor readout, outstanding dynamic range and intelligent autofocus performance in a compact and lightweight body.
Professional Full-Frame Cinema Performance
The FX5 captures beautiful cinematic footage with smooth tonal gradation, natural colour reproduction and excellent low-light performance. Full-frame Open Gate recording provides greater flexibility for reframing and multiple aspect ratio delivery, while internal 16-bit X-OCN compressed RAW recording gives filmmakers maximum post-production freedom without requiring an external RAW recorder.
Whether you're producing feature films, documentaries or commercial content, the FX5 supports professional workflows with high frame rate recording, advanced codecs and exceptional image quality.
Advanced AI Autofocus
Sony's latest AI-powered autofocus system provides reliable subject recognition and tracking with up to 759 phase-detection autofocus points. This allows creators to confidently capture moving subjects while maintaining sharp focus throughout demanding productions.
Outstanding Low-Light Performance
Three Base ISO settings of ISO 800, ISO 4000 and ISO 12800 allow the camera to adapt to virtually any lighting environment. Dual Gain Shooting further improves dynamic range and reduces image noise, preserving highlight and shadow detail for professional colour grading.
Professional Audio Included

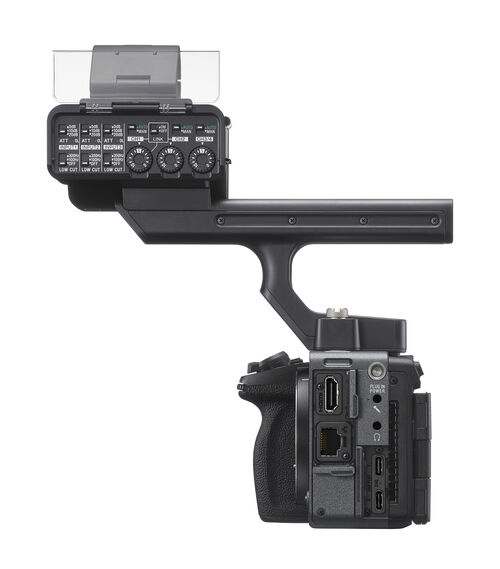

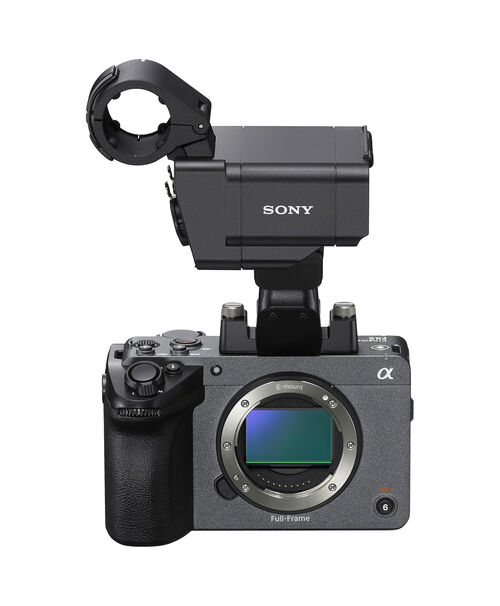

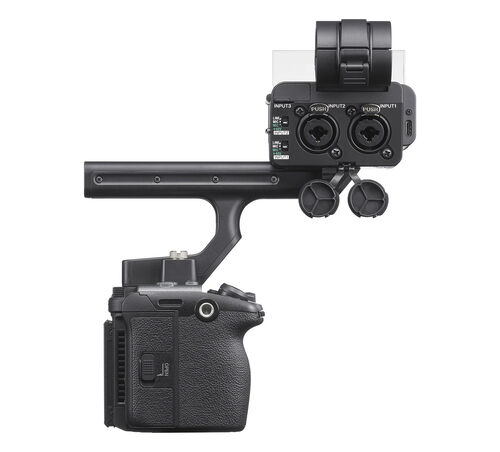

Unlike the body-only version, this kit includes the Sony XLR-H2 Handle Unit, providing professional audio recording straight out of the box. The handle features two XLR/TRS inputs, a 3.5mm stereo input and supports up to four channels of high-quality 96kHz/32-bit float audio recording, helping capture clean sound without the need for external audio recorders.
The removable handle integrates seamlessly with the FX5, making it ideal for interviews, documentaries, ENG, live events and professional video productions where broadcast-quality audio is essential.
Compact Design for Professional Productions
Despite its professional capabilities, the FX5 remains lightweight and compact, making it perfect for handheld shooting, gimbals, drones and travel productions. Dedicated controls, assignable buttons, a touch-panel monitor and extensive connectivity ensure efficient operation both on location and in the studio.
Expand Your Production Kit
For filmmakers requiring an eye-level monitoring solution, the FX5 is compatible with the optional Sony DVF-EL1 OLED Viewfinder, providing accurate focus and exposure monitoring even in bright outdoor environments.
Key Features
- 5K full-frame stacked Exmor RS CMOS sensor
- Includes Sony XLR-H2 Handle Unit
- BIONZ XR2 processor with integrated AI processing
- Internal 16-bit X-OCN compressed RAW recording
- Full-frame Open Gate recording support
- Three Base ISO settings for exceptional low-light performance
- Dual Gain Shooting for improved dynamic range
- Up to 759 AI-powered phase-detection autofocus points
- 96kHz/32-bit float audio recording with four-channel support
- Professional XLR/TRS audio inputs built into the included handle
- Wi-Fi, Bluetooth 5.3 and 2.5G wired LAN connectivity
- Compact and lightweight Cinema Line design
Please note: This kit includes the Sony FX5 camera body and Sony XLR-H2 Handle Unit. Lenses, memory cards, batteries, chargers and the Sony DVF-EL1 OLED Viewfinder are sold separately.
Barcode (UPC / EAN): 4548736182288
Sony FX5 Specifications
| Camera Type | Full-frame Cinema Line camera |
|---|---|
| Lens Mount | Sony E-mount |
| Sensor | 5K full-frame fully stacked Exmor RS CMOS sensor |
| Image Processor | BIONZ XR2 with integrated AI processing |
| Maximum Sensor Resolution | 5K |
| Open Gate Recording | Full-frame Open Gate recording available with X-OCN recording |
| 5K Recording | Up to 120 fps in full-frame 3:2 X-OCN* |
| 4K Recording | Up to 240 fps in full-frame crop mode* |
| RAW Recording | Internal 16-bit scene-linear X-OCN compressed RAW recording |
| X-OCN Recording Options | X-OCN LT, C1 and C2 |
| Dual Gain Shooting | Supported for improved latitude, reduced noise and enhanced shadow detail |
| Dual Gain Frame Rates | Up to 30 fps in full-frame 5K 3:2 and up to 60 fps in full-frame 5K 16:9 or 17:9 |
| Base ISO | ISO 800, ISO 4000 and ISO 12800 |
| ISO Sensitivity Range | ISO 320–409600 equivalent |
| Auto ISO | ISO 320–409600 with selectable upper limit |
| Maximum Gain | 18 dB equivalent, depending on recording settings |
| Autofocus System | Phase-detection autofocus |
| AF Points | Up to 759 phase-detection AF points |
| Subject Recognition | AI-based subject recognition |

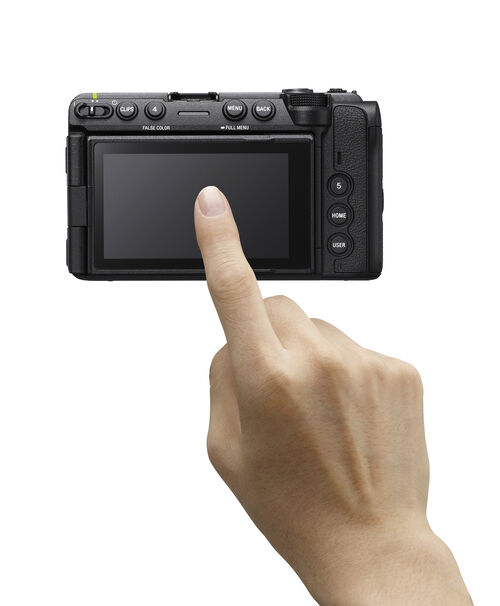

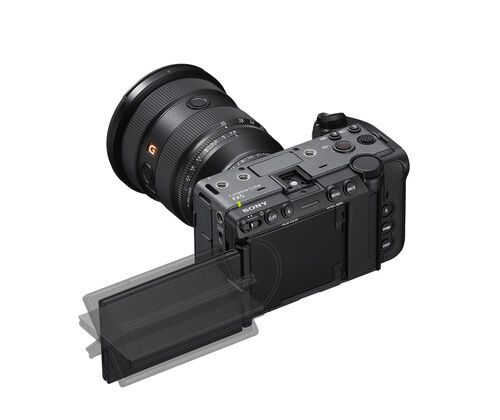

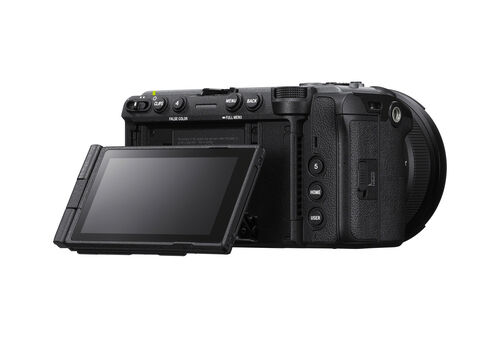

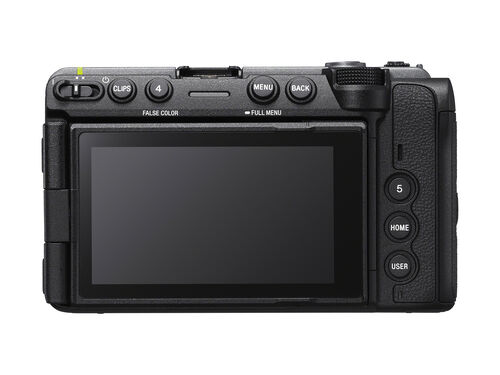

| Rear Monitor | 3.5-inch, 16:9 aspect ratio touch-panel monitor |
| Viewfinder | Optional Sony DVF-EL1 detachable tilt-type OLED viewfinder |
| Audio Recording | Up to 96kHz/32-bit float audio recording with optional Sony XLR-H2 Handle Unit |
| Maximum Audio Channels | Up to 4 channels with optional Sony XLR-H2 Handle Unit |
| XLR Inputs | Two XLR/TRS inputs with optional Sony XLR-H2 Handle Unit |
| Microphone Input | 3.5mm stereo mini jack |
| Headphone Output | Supported |

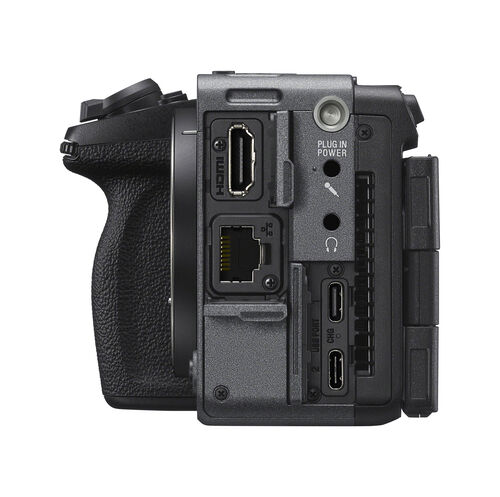

| USB Connections | Dual USB Type-C ports |
| Wired Network | 2.5GBASE-T, 1000BASE-T and 100BASE-TX LAN |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Bands | 2.4GHz, 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Timecode | Timecode input supported through USB Type-C with optional Sony VMC-BNCU1 cable |
| Accessory Shoe | Sony Multi Interface Shoe |

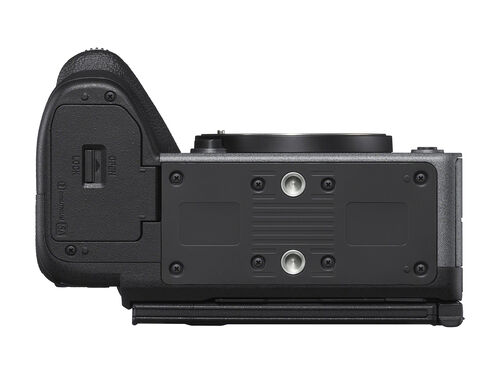

| Mounting Thread | 1/4-20 UNC thread |

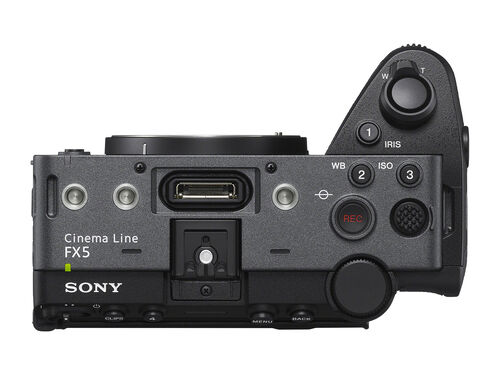

| Controls | Zoom rocker, multi-function dial, record button and assignable buttons |
| Dimensions | 132.2 × 79.0 × 82.0mm, from grip to monitor |
| Weight | Approximately 734g, body only |
| Optional Viewfinder | Sony DVF-EL1 OLED Viewfinder for FX5 |
| Product Configuration | Camera body with XLR-H2 Handle |
*5K 120 fps and 4K 240 fps recording are planned to require Sony firmware version 2.0, scheduled for August 2027 or later. Open Gate recording is available only when recording in X-OCN. Manual Base ISO selection is supported in Cine EI and Flexible ISO modes. Optional accessories are sold separately.
