FeelWorld F6 Plus 5.5" 4K HDMI Monitor
SKU code: 47648
- Touchscreen 1920 x 1080 Display
- Up to DCI 4K HDMI Input; HDMI Output
- LUT Support via SD Card Slot
- DC, USB, L-Series/LP-E6 Power Support
- HDR, Vectorscope, Histogram & More
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:

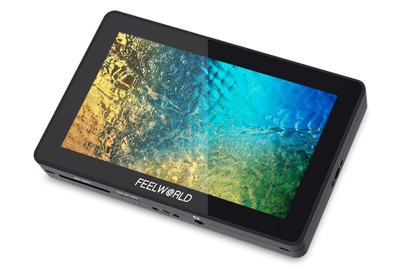

FeelWorld F6 Plus 5.5" 4K HDMI Monitor supports HDMI input signals up to DCI 4K/24 and UHD 4K/30. It employs a touchscreen display with a 1920 x 1080 resolution, brightness of 500 cd/m² and 1000:1 high contrast. You are able to connect different devices such as wireless transmitter and larger on-set monitors via HDMI output. Besides, it has the ability to import 3D LUTs via the SD card. The F6 PLUS with 5.5-inch screen and only 235g weight is an ideal solution for those who want an easy-to-use lightweight on-camera monitor.

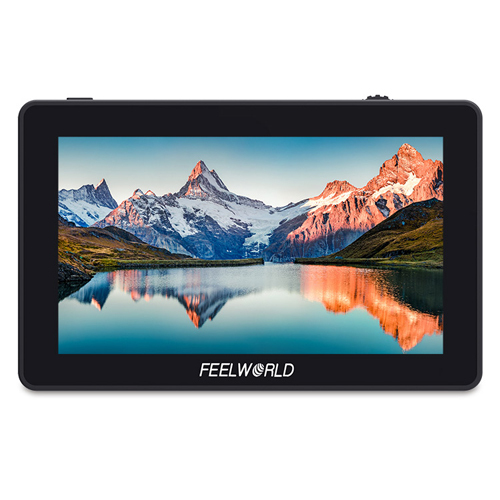

1920 x 1080 Display with 400 PPI Resolution
The monitor employs a display with 1920 x 1080 and 400 PPI resolution which delivers 160° angle of view for easier off-axis position monitoring. F6 PLUS provides S-log2/3, V-log, Log-C, etc., to convert log mode to REC709 for all main cameras. The built-in 3D LUT colour calibration eliminates the trouble of colour cast and can be uploaded to F6 PLUS by SD card. Besides, built-in waveform monitoring allows you to analyse image quality more precisely by providing different functions like vectorscope, histogram and audio phase and level displays.

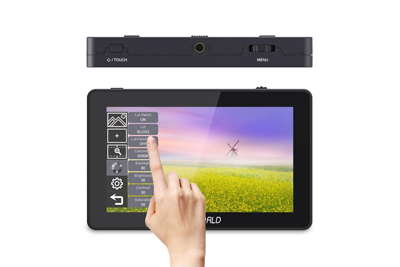

Intuitive Controls and Menus with Interactive Touchscreen
The monitor features an interactive touchscreen, allowing you to use simple tap and swipe gestures to change function settings. However, you have the option to turn it off whenever is required through menu setting function. Besides, you are able to browse the menu and set functions with physical buttons at the top of the monitor. LUT7S's key distribution design is simple and easy to operate.

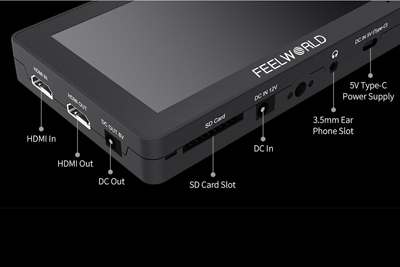

4K HDMI Input & Loop Output
The FEELWORLD F6 Plus has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It can display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

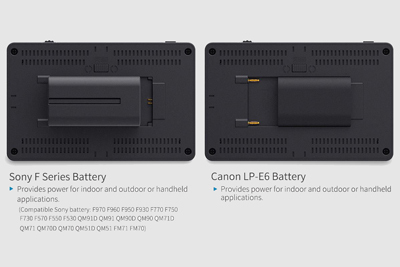

Multiple Power Supply
You can power the FEELWORLD F6 Plus monitor with Canon LP-E6 or Sony F Series batteries as well as 12V DC power input. It also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. Also, its auxiliary power out allows the user to power the camera with an optional battery adapter cable.
*Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

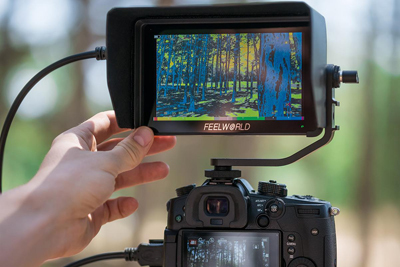

Innovative Design

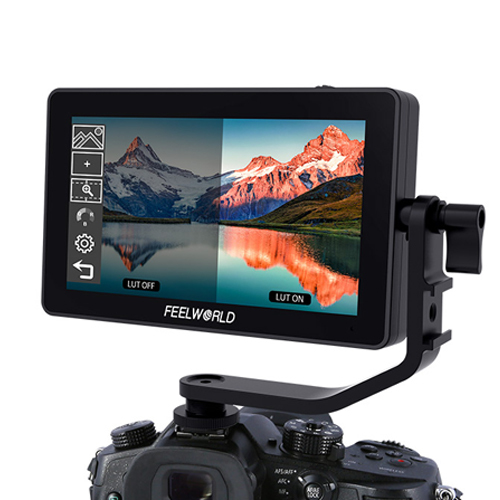

The monitor is equipped with a sunshade, which provides a better visual experience. Besides, with included cold shoe mounted Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile. Also, it features standard 1/4" mount points (top, bottom, right) for attaching it to cameras and rigs.
| Display Spec. | |
| Model | F6 PLUS |
| Screen Size | 5.5" Touch Screen |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.0639 (H) x 0.0213 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Dimensions | 148x93x20mm |
| Input | |
| 1 X HDMI | HDMI |
| 1 X Type-C | Type-C |
| Output | |
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
| Audio | 3.5mm Stereo Headphone |
| HDMI Input/ Output Support Format | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
| General | |
| Input Voltage | DC7~24V |
| Power Consumption | =9W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | ¼-20 thread points (top, bottom, right) |
| Unit Size | 148Lx93Hx20D (mm) |
| Unit Weight | 235g |
| Advanced Features | * Support 3D LUT Log to Rec.709, user 3D LUT Upload * Support Touch Menu * All Waves * Parade (RGB, YUV, Y) * Vector * Brightness Histogram * Peaking Focus Assist (red, green, blue, white, yellow five peaking colours optional; 1~10 peaking level adjustable) * False Colours * Zebra Exposure (1%~100% adjustable) * Check Field (red, green, blue, Gray) * Scan Mode (Under Scan, Over Scan) * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) * *Flip H/ Flip V (All open, H/V flip) * Image Freeze * Nine Grid * Center Marker * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) * Marker Colour (red, green, blue, white, black, yellow) * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) * Colour Temperature Adjustment * Zoom (100%~300%) * Aspect Ratio * Pixel to Pixel
|
* Specifications subject to change by the manufacturer without notice
1x FeelWorld F6 Plus
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Manual
