FeelWorld F5 Pro 5.5" V2 4K HDMI IPS Touchscreen Monitor
SKU code: 47645
- 1920 x 1080 Screen Resolution
- HDMI Input & Loop Output, Headphone Out
- Support for up to DCI 4K Video, 3D LUTs
- 500 cd/m² Brightness, 160° Angle of View
- Histogram, Vector scope & More
- Pinch-to-Zoom Touchscreen Gesture
- DC & USB Type-C Power Inputs; DC Output
- Rear Bracket for Attaching Transmitters
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Cables & Connectivity:
Other:

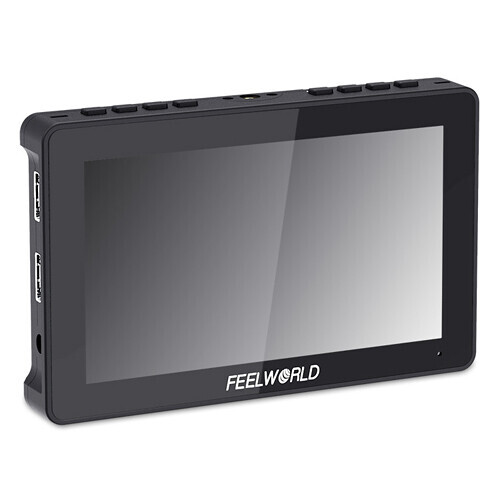

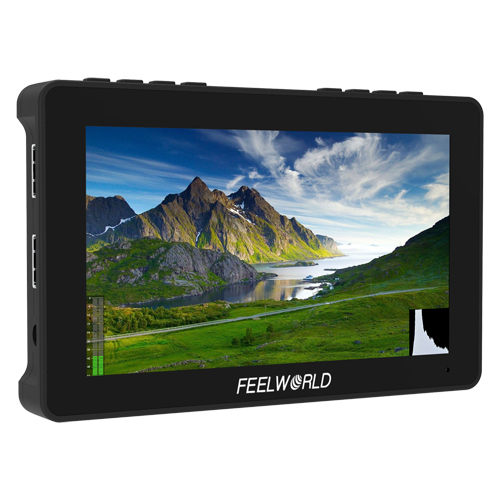

FeelWorld F5 Pro 5.5" V2 4K HDMI IPS Touchscreen Monitor is a professional monitor with 1920 x 1080 resolution, 1000:1 contrast ratio, and 500 cd/m² brightness. Its bright touch screen, professional software tools, and convenient mounting add instant production value for mirrorless and DSLR shooters. The F5 Pro provides a plethora of essential features including embedded audio, histogram, focus assist, false colour, pixel to pixel, frame guides, nine grids, etc.

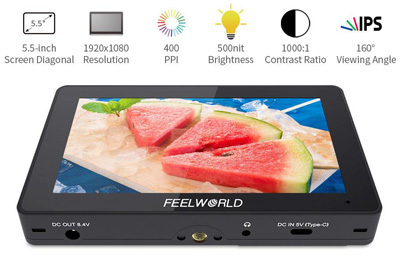

5.5" LCD, 1920x1080 Resolution
The F5 Pro features native 1920x1080 high resolution display with 1000:1 contrast ratio and 500cd/m2 brightness. It is ideal for focus pulling and image analysis, allowing the user to enjoy sharper and richer colours. Besides, the wide viewing angle of IPS 160 degrees is convenient for monitoring from multiple angles.

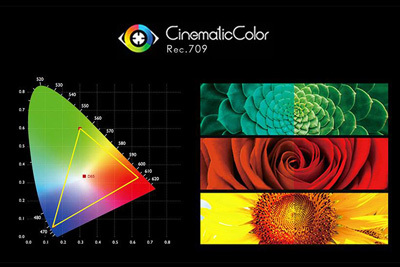

Professional Colour Calibration and Accurate Colour Reproduction
It supports the professional Rec.709 HD colour standard as well as ITU standards, which delivers extremely natural and accurate colour reproduction. With advanced image processing technology, the image is clear, and users can accurately evaluate the quality of various input video signals. Besides, custom 3D LUTs allows the user to get an idea of how the finished images will look like later in post-production.
Multiple Power Supply

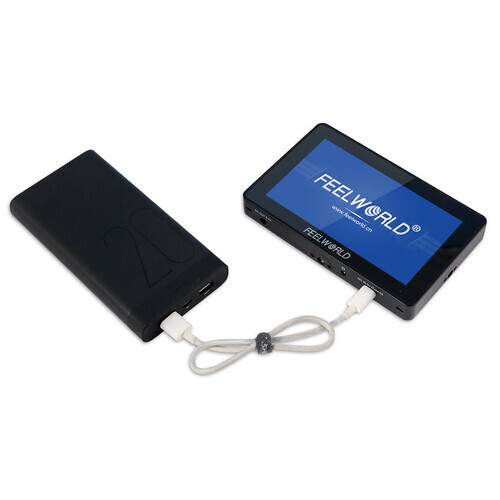

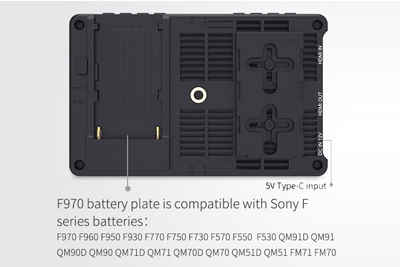

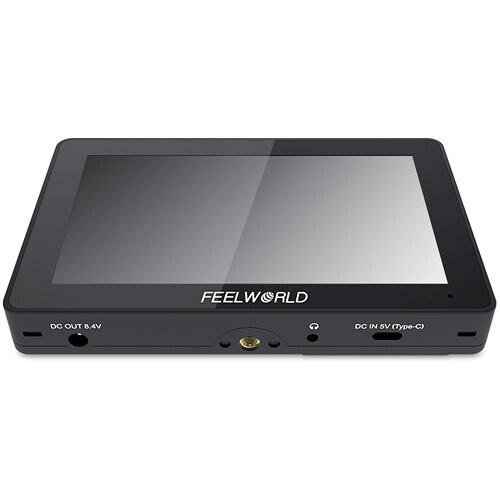

You can power the FEELWORLD F5 Pro V2 monitor via F970 battery plate or 12V DC power input. It also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. Also, its auxiliary power out allows the user to power the camera with an optional battery adapter cable.
*Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

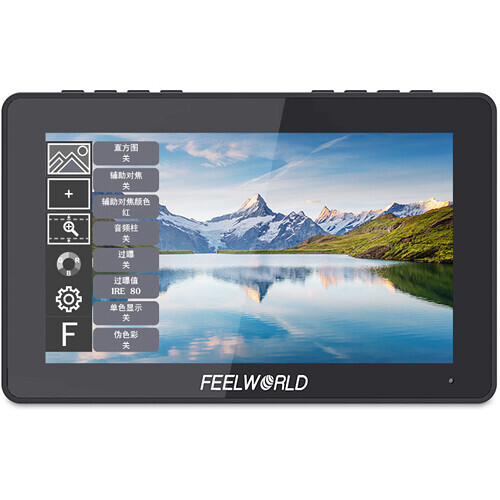

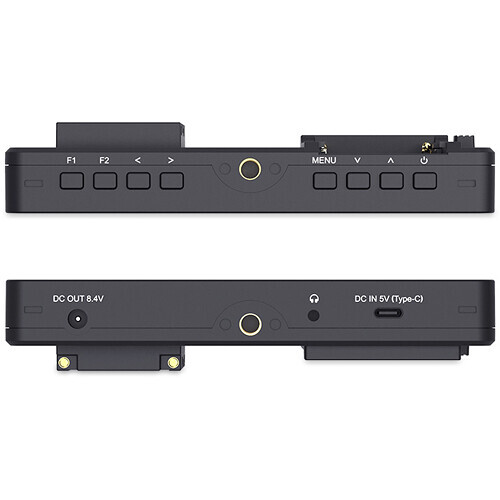

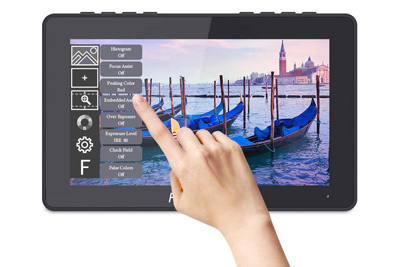

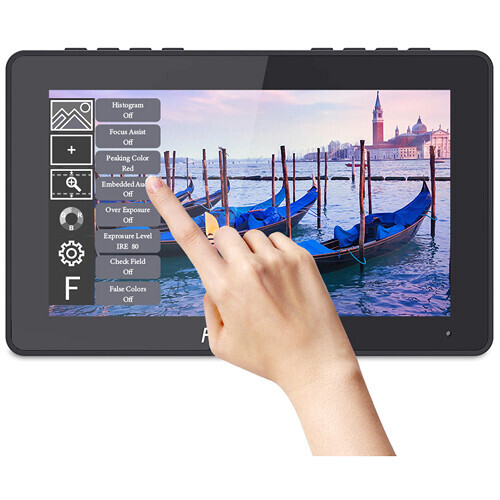

Intuitive Controls and Menus with Interactive Touchscreen
The monitor features an interactive touchscreen, allowing you to use simple tap and swipe gestures to change function settings. However, you have the option to turn it off whenever is required through menu setting function. Besides, you are able to browse the menu and set functions with physical buttons at the top of the monitor. F5 Pro V2's key distribution design is simple and easy to operate.
Innovative Design

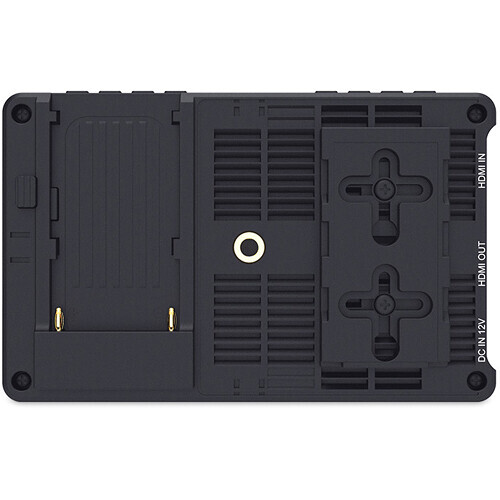

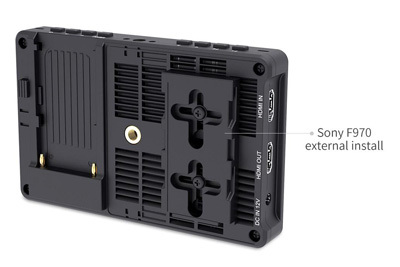

The monitor is equipped with a sunshade, which provides a better visual experience. Besides, with included cold shoe mounted Tilt Arm, shooters will have a secure way to position their monitor while maintaining a low profile. A Sony F970 external install and power kit design is added to the back of the monitor. This kit allows you to install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery.

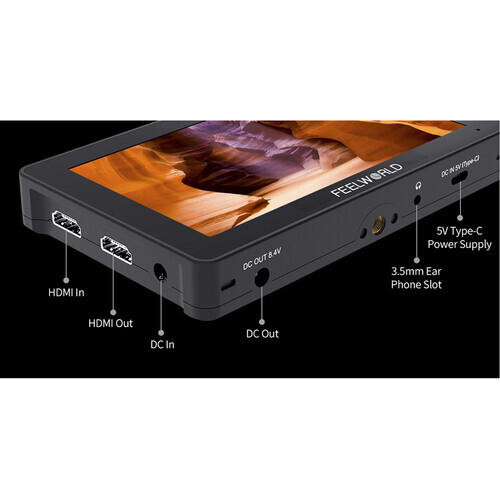

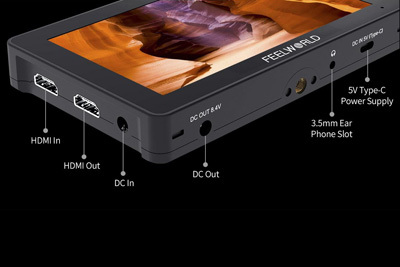

4K HDMI Input & Loop Output
The F5 Pro V2 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.
|
Display Spec. |
|
|
Model |
F5 Pro V2 |
|
Screen Size |
5.5" IPS Touch Screen |
|
Resolution |
1920x1080 pixels |
|
Pixel Pitch |
0.0639 (H) x 0.0213 (W) mm |
|
Aspect Ratio |
16:9 |
|
Brightness |
500cd/m² |
|
Contrast Ratio |
1000:1 |
|
Backlight |
LED |
|
Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
|
Input |
|
|
1 X HDMI |
HDMI |
|
1 X Type-C |
5V Type-C |
|
Output |
|
|
1 X HDMI |
HDMI |
|
1 X DC Output |
DC Output |
|
Audio |
|
|
Audio |
Stereo Headphone |
|
HDMI Input/ Output Support Format |
480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
|
General |
|
|
Input Voltage |
DC7~24V |
|
Power Consumption |
=9W |
|
Power Connector |
DC |
|
Working Temperature |
-20°C~50°C |
|
Storage Temperature |
-30°C~60°C |
|
Install Way |
¼-20 thread points |
|
Unit Size |
148Lx93Hx20D (mm) |
|
Unit Weight |
245g |
|

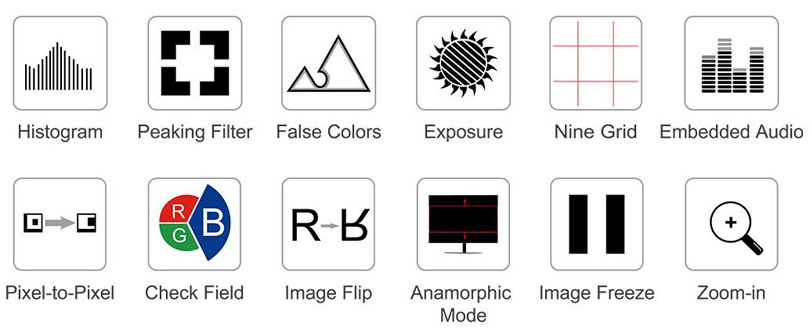

Advanced Features |
* Support 3D LUT Log to Rec.709, user 3D LUT Upload * Brightness Histogram * Peaking Focus Assist (Red, Green, Blue three colours optional highlight over parts of the image in focus) * False Colours * Zebra Exposure (1-100IRE adjustable) * Check Field (Red, Green, Blue, Mono) * Scan Mode (Under Scan, Over Scan) * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) * Image Flip (H, V, H/V) * Image Freeze * Center Marker * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) * Colour Temperature Adjustment * Nine Grid (Zoom one of the images to realize the full screen) * Zoom (4X, 9X, 16X) * Aspect Ratio * Pixel to Pixel * Zoom All * U/D Zoom * L/R Zoom |
* Specifications subject to change by the manufacturer without notice
1x FeelWorld F5 Pro 5.5" V2
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Disassemble Wrench
1× TYPE-C to USB
1× Manual
