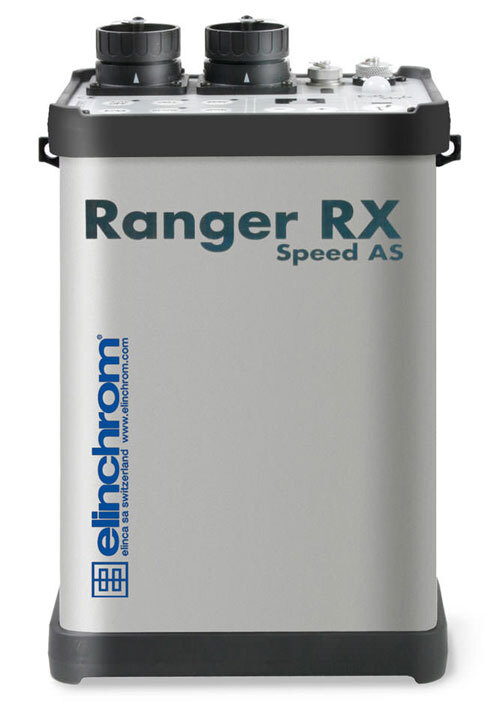

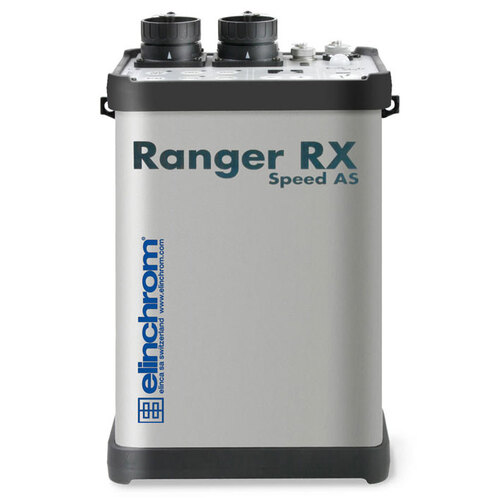

The Elinchrom Ranger RX Speed AS Battery Pack is the top-of-the-line battery pack within the Ranger RX series. With a blistering full-power recycle time of 2.9 seconds, the pack is ideal for the most demanding on-site photographer. Capable of 250 flashes at full power and complimented by a built-in power saving mode ensures your lights are always ready to fire, even during the most gruelling photo shoot. For maximum efficiency, the pack also supports asymmetrical power output to each flash headwhich allowsfor greater output control and consequently improving battery power endurance.

A quick charge function is capable of fully charging the pack in 3 hours, delivering you the convenience of being ready for an on-location job at short notice. With the ability to support extremely quick flash durations as short as 1/4310th of a second1, the Elinchrom Ranger RX Speed AS Battery Pack is ideal for sportsfashion and on-location photography.

1 With Elinchrom ‘A’ heads attached.

Maximum Watt/Seconds 1100
Guide Number f64.1 @ 2 m, ISO 100
Recycle Time Fast @ max power: 2.5 sec
Flash Duration @ t 0.5: 1 or 2 A Heads: 1/2300 sec.- 1/4310 sec.
Flash Variability 8.5 F-Stops in 0.1 stop increments, 1100 to 17.5 w/s
Voltage Stabilization Yes, +/- 1%
Distribution Asymmetrical
Head Outlets 2
Flash Ready Indicator Charge Ready Light, Switchable Audible Beep
Operating Voltage 12V, 7A
Built-in Slave Cell Optical, Special remote
Circuit Protection Yes
Fan Cooled No
Auto Dump Yes
Number of Flashes @ Full Power 250 flashes @ full power @ slow recycle
Battery Charge Time 3 hours
Dimensions 19 x 14 x 28 cm
Weight 8 kg

* Specifications subject to change by the manufacturer without notice.

• Rapid Charger for Ranger Power Pack (115-230VAC)
• Battery with Holder for Ranger RX Speed AS Pack
• PC to Amphenol Sync Cord
• Shoulder Strap
