The new Speed AS units are designated RX because they may be operated by remote control - by computer or by a handset - enormously increasing the ease of use on location. The AS version provides a 2:1 asymmetrical Power Distribution, 66% on head A and 33% for head B. The power range covers 8.5 f-stops from 1100ws to 6ws. The output B offers an action freezing flash duration of only 1/5120 s at t 0.5. The Ranger RX Speed AS recycles super fast in only 2.9s to full power. A fully charged battery delivers approximately 5100 flashes at low power setting and up to 250 at full power. Travel lite with only 8 kg.

Tech Specs for Ranger AS using A Heads

  • Power Settings, 8.5 f stops / 1100 - 6ws
  • Recycles 400ws in 1.2 sec, 600ws in 1.9 sec, Full in 2.9 sec
  • Autonomy 250 full power, 450 @ 600ws
  • Flash Duration t-0.5 1/4310s, 2x A Heads 1/2300s, 1x S Head 1/5120s on Plug

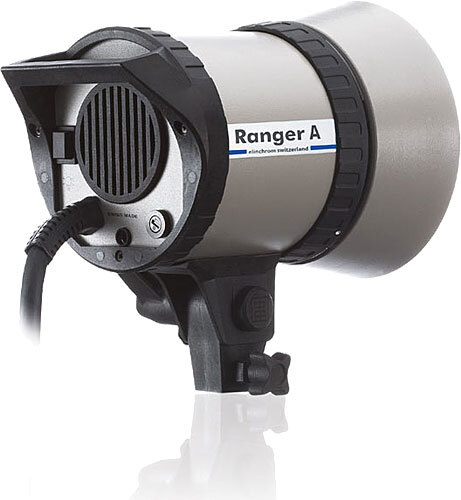

    • Ranger A Speed-Head

    The Ranger A Head (SPEED) offers a unique super short flash duration with a single, twin electrode A-Flashtube to ensure even light distribution. The Ranger A Head is the perfect choice for "Action Freezing" photography up to a 1/5120 s when the A-Head is plugged into the Ranger Speed AS super fast channel B.
    Full Specifications Ranger RX Speed AS
    Joule / WS; max. 1,100
    Power distribution Asymmetrical
    Interface for Computer and Hand Remote All RX models; requires optional accessories + ERS software
    F-stop, 2 m, 100 ISO, 1/250 s; Reflector 48° 64 @ 100% ; 45 @ 66%
    32 @ 33%
    Power range; Ws 100%: 17 – 1100
    66%: A output: 11.5 – 733
    33%: B output: 5.7- 366
    Power range in f-stop 8.5
    Recycling, fast @ min. / max. power A output: fast 0.3 s / 3 s
    B output: fast 0.19 s / 1.2 s
    Recycling slow @ min. / max. power A output: slow 0.45 s / 5.5 s
    B output: slow 0.22 s / 1.9 s
    Flash duration @ t 0,5; 1 / 2 A heads A output: 1/2300 s / 1/4310 s
    B output: 1/5120 s
    Flash duration @ t 0,5; 1 / 2 S heads A output: 1/1250 s / 1/2250 s
    B output only: 1/2310 s
    *Flashes out of one charged Battery
    @ min. power, slow/fast recycle    		 5100 / 3700
    *Flashes, out of one charged Battery
    @ max. power, slow/fast recycle    		 250 / 195
    Sync voltage 5 VDC
    Stabilisation +/- 1 V
    **Battery lead acid (gel-electrolyte) 12 V / 12 Ah lead acid
    Modelling lamp:
    ***1 head connected    		 2 x 50 W / 12 V or ***1 x 100 W / 12 V
    Standard charger: recharge time, approx. 5 h
    Quick charger: recharge time, approx. 3 h
    Dimensions in cm 19 x 14 x 28
    Weight in kg, incl. Battery 8
    Ranger pack, included parts 10267 incl.: 19280 + 11075
    + 19289 + 19283 + 19374

    * Note: The number of flashes, recharging time and battery life, may vary from battery to battery
    Specifications subject to change by the manufacturer without notice

    Full Specifications Ranger A Head
    Output in Joule / Ws 2,400
    Modelling lamp 50 W 12 V
    Modelling lamp timer on / off 15 & 30 seconds
    Safety Fuse 5AF
    Flashtube Speed
    Centred umbrella holder Yes
    Stand adapter Yes
    Bayonet, breech-lock-ring Yes - All models since 1974
    Weight incl. 3 m flash cable 2.4 kg
    Dimensions in cm 22 x 13.5
    Code 20101
    Code Flashtube 24053

    Note: Tolerances of specifications and components conform to IEC and CE standards. Technical data subject to change. No guarantee for misprints. The listed values can differ due to tolerances in components or measuring instruments.
    Specifications subject to change by the manufacturer without notice

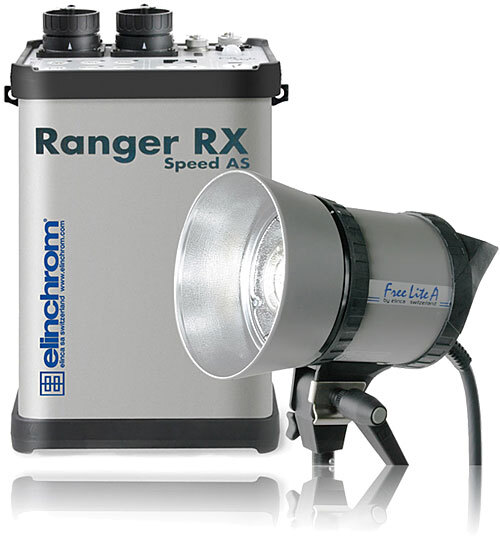

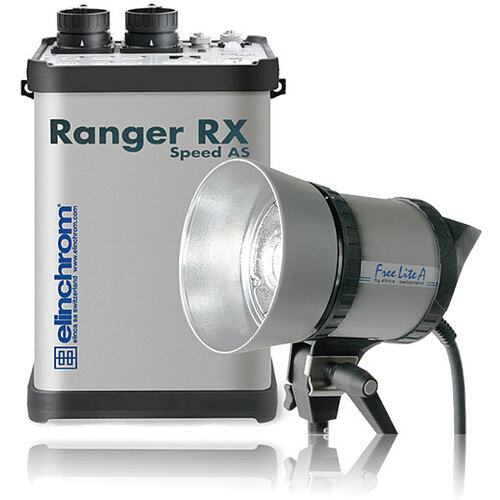

    • 1x Elinchrom Ranger RX AS Speed
    • 1x Elinchrom Free Lite A Head 1100ws (reflector not included)
