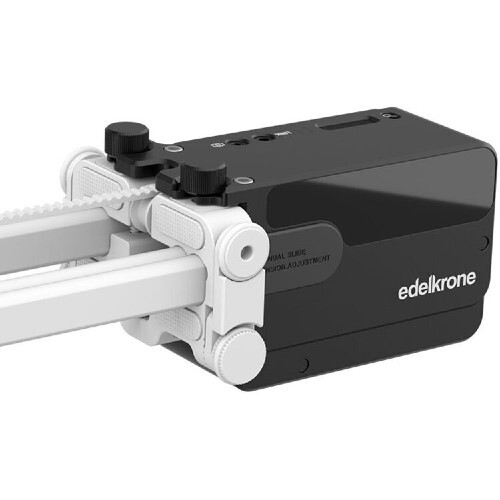

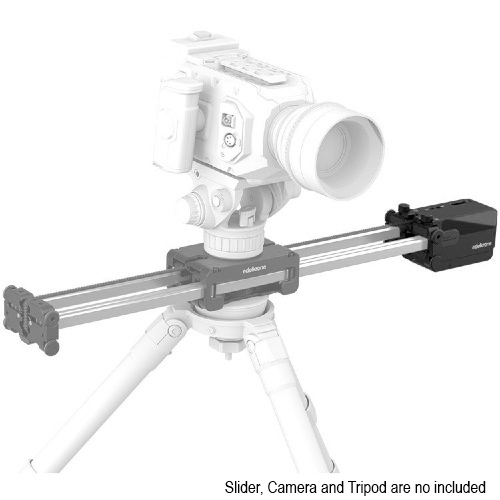

Easily achieve seamless, stable slides or program your cameras movements with the Edelkrone Slide Module V3. This is a perfect addition to assist with programming motion time-lapse and stop motion videos. You can wirelessly connect the V3 to the HeadPLUS an HeadONE, offering a huge amount of versatility and creative freedom.

Hand Controlled

You can easily and quickly adjust the positions of the SliderPLUS while the Slide Module V3 is attached, offering a timely solution and delivering a smooth workflow. There is no need to worry about fiddly gadgets as it is hand controlled, offering a more intuitive and precise experience.

Macro Capabilities

Due to the smoothness the product exudes, macro shots are made easy. You can control the speed the slide moves at with its intuitive design that is comprised of backlash free gears. It can additionally perfectly repeat any motion, allowing for greater creativity when it comes to creating and editing videos.

Functional

The V3 is extremely user friendly, and is a hassle free product. With an Information Screen that offers instant feedback, you can monitor your progress as you work without having to remove or dismantle the Slide. It additionally boasts power-off and power-saving modes for better power management, meaning you don’t have to worry about constantly having to charge your equipment

Motor Type

Step motor with ultra high-res encoder

Power inputs

x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately)

Shutter trigger cable socket

2.5 mm (Shutter trigger cable is sold separately)

Mobile device connection

2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive centre, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

Materials

CNC machined aluminium and stainless steel components
High contrast sharp OLED screen

Compatibility

SliderPLUS, SliderPLUS PRO, previous generation SliderPLUS, SliderPLUS Pro, SliderPLUS X, SliderPLUS M and SliderPLUS v5 series

Incline Capacity

Up to 22.5° with 2.5 kg

Minimum step size on tripod

22.4 µm

Minimum step size on ground

11.2 µm

Maximum speed on tripod

6.42 cm/sec

Maximum speed on ground



Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 2 hours (continuously at full speed)
Shoots 12000 photographs (in Time-Lapse mode)

Weight

0.85kg

Dimensions (L x W x H)

135 x 81 x 66mm

  • Slide Module
  • Connection Screws for Slide Module
  • Allen Key
