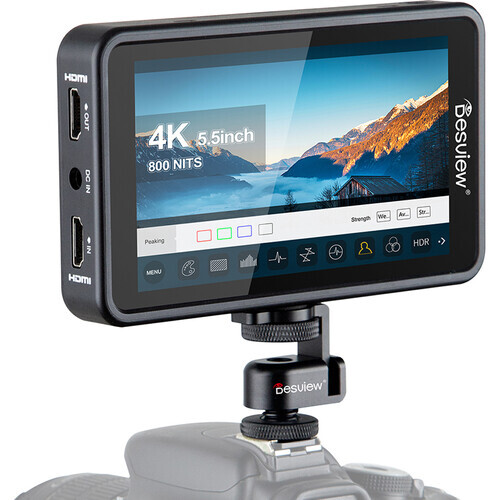

Desview's R5II 5.5" On-Camera Touch Monitor is a thin, light on-camera monitor with a bright 800 cd/m2 screen, a 178-degree viewing angle, and a 1920 x 1080 resolution. The R5II has an HDMI input that can handle up to DCI 4K24 and an HDMI loop out, along with a tonne of other practical features and tools like touchscreen and pinch-to-zoom. Additionally, it has a 3.5mm headphone jack and a USB input that can be used to load customised 3D LUTs from the provided USB thumb drive.

HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.

Features:

Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m2 brightness.

Slim, lightweight design with a touchscreen IPS LCD panel.

HDMI supports video input up to DCI/UHD 4K30.

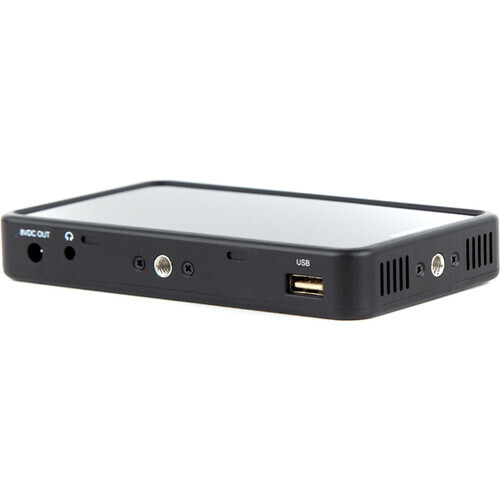

There are two 1/4"-20 mounting threads on the side and bottom of the monitor.

Touchscreen:

The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image.

The 800 cd/m2 high brightness provides a clear display, even when filming in bright environments.

Display Tools:

Pixel pinch-zoom

Aspect ratios: preset and customizable

Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x

Image flip: Auto and manual

Image rotation: auto and manual

Colour focus assistance, with adjustable style and intensity

Peaking, with adjustable intensity

False colour

Zebra, customizable

Luma and RGB, customizable with region-of-interest highlighting

Vectorscope

RGB parade, customizable

Histogram: Luma and RGB

LUT import via the USB storage device

Audiometer display

Screen Size 5.5 inch
Resolution 1920 X 1080
Display Ratio 120.96 (W) X 68.04 (H)mm
Colour Depth 16.7M
Pixel Pitch 0.021 X 0.063 (HXV)
Brightness 800nits
Contrast Ratio 1000:01:00
Aspect Ratio 16:09
Backlight LED
Viewing Angle 178°(89°/89°L/R) 178°(89°/89°U/D)
Input HDMI/USB
Output HDMI
Audio Output 3.5mm Stereo Headphone
HDMI Signal Format 720x480i&720x480p@59.94, 60Hz     720x576i&720x576p@50Hz
1280x720p@50, 59.94, 60Hz
1920x1080i@50, 59.94, 60Hz     1920x1080psf@24, 25, 29.97, 30Hz
1920x1080p@23.93, 24, 25, 29.97, 30, 50, 59.94,60Hz
3840x2160p@24, 25, 30Hz     4096x2160p@24Hz
Power ≤9W
Voltage DC7-24V
Working Temperature -20°C~55°C
Storage Temperature -30°C~65°C
Packing Size 102x120x85mm
Unit Weight 200g
Standby Power Consumption ≤0.1 W

* Specifications subject to change by the manufacturer without notice

  • Desview R5II 5.5" On-Camera Touch Monitor
  • Micro-HDMI Cable
  • Mini HDMI Cable
  • Snail Cold Shoe
  • USB Thumb Drive
  • Sun Hood
  • Sun Shield
  • Microfiber Cloth

Manufacturer Warranty


This product comes with a

12month Australian warranty

from Desview Australia
