1" Exmor RS CMOS Sensor and BIONZ X Processor

The Sony HXR-NX80 features a 1-inch stacked RS CMOS image sensor. The high sensitivity, back-illuminated sensor is capable of utilising light more efficiently to capture images with low noise and low rolling shutter. Shoot with stunning clarity and realistic colours even in dimly lit light conditions, without relying on additional external lighting.

The large sensor size of the NX80 also enables beautiful defocused backgrounds in spectacular 4K resolution. Coupled to a high performance BIONZ X image processor, the camcorder achieves high-resolution, high frame rate continuous recording with fast, precise autofocus.

4K and Full HD Recording

The camcorder records 4K (3840 x 2160) and HD (1920 x 1080) using the advanced XAVC-S H.264 codec that combines stunning picture quality with workflow flexibility and storage efficiency. For compatibility with legacy systems, the camera also offers AVCHD recording.

120fps Slow Motion Recording in Full HD

Using Sony’s Slow & Quick Motion recording, the HXR-NX80 can record at 1 to 120 frames per second in Full HD without a time limit to deliver gorgeous 5x slow motion and beautiful time lapse sequences. Additionally, Burst mode recording at frame rates of up to 960fps for super slow motion sequences are also possible using S&Q motion cache recording.

Hybrid Auto Focus with Advanced Features

The HXR-NX80 incorporates Sony’s Fast Hybrid Auto Focus system. Using 273 focus points covering 84% of the frame, the system combines the strengths of both Phase Detection and Contrast Detection for amazingly fast and precise auto focus. In addition, 4K face detection and object tracking technology make it easy to lock-on and hold focus on fast-moving subjects such as sports or children at play.

The AF Drive Speed, Tracking Depth Range and Subject Switching Sensitivity can be configured as required for different subjects and content styles.

Instant HDR Workflow with Hybrid Log Gamma

The camcorder records 4K High Dynamic Range (HDR) content for breath-taking imagery with a wide colour gamut and colour range. To deliver HDR content quickly with minimum post-production work and additional colour grading, the camcorder offers Hybrid Log-Gamma (HLG) recording in HDR, and supports S-Log3 encoding for added versatility.

Zeiss Vario-Sonnar Wide Angle Zoom Lens

Optimised for 4k recording, the Zeiss Vario-Sonnar lens with the Sony’s T* coatings offers impressive contrast and resolution. The 29 mm wide-angle focal length (35 mm equiv.) features a 12x optical zoom that extends seamlessly to 18x (in 4K) or 24x (in Full HD) using Sony’s Clear Image. The Digital Extender doubles this range to 48x in Full HD. The versatile focal range allows capturing a wide range of photographic scenarios from sweeping landscapes to intimate close-ups.

Integrated ND Filters

Built-in 2, 4 and 6 stop ND filters let you control depth of field and exposure under various lighting conditions. The filters can be electronically activated so you do not have to stop shooting and screw on a filter on the lens.

High-Resolution OLED Viewfinder and LCD Monitor

A 1cm 2359K dot highly responsive OLED EVF eliminates colour breaking and offers stunning brightness and contrast to enable precise manual focusing and easy viewing in bright daylight conditions. For added compositional versatility the camcorder is supplemented by a 3.5" 1550K dot touchscreen LCD monitor.

Dual Storage Media Slots for Recording Flexibility

To endure long recording time without worrying about memory status, the NX80 is equipped with double memory card slots that accept readily-available SDHC/SDXC cards. The slots are also compatible with the Memory Stick PRO Duo (Mark 2) / PRO-HG Duo. In case the first memory card is full, the Relay mode automatically switches recording to the second card. For an instant back-up, the Simul mode enables simultaneous recording to both memory cards, adding instant security and redundancy to your workflow.

Multi-Interface (MI) Shoe

Sony’s flexible Multi-Interface Shoe provides the convenience of power, signal connections and coordinated on/off switching with compatible Sony accessories such as flashes, wireless microphones or video lights without additional connecting cables.

Remote Operations and Multi Camera Control

Using the included wired remote commander enables you to remotely control the focus, zoom, start/stop and review recording. When used in conjunction with Sony’s MCX-500 switcher (available separately), the system creates a simple yet efficient live solution, enabling a single operator to easily operate a multi-camera live production.

You can also synchronise timecode of multiple camcorders using the optional Wireless Timecode Link (CBKZ-WTCL) through the Content Browser Mobile smartphone app.

Wi-Fi Streaming and NFC Connectivity

Using Sony’s Content Browser Mobile app, live camera feed can be monitored and camera functions such as start/stop recording, zoom, iris control and touch auto focus can be remotely controlled from a smartphone or tablet over a Wireless connection. Built-in NFC connectivity helps easy pairing with NFC-enabled devices for fast, convenient set up.

Versatile Connections for Professional Work Flow

Two balanced XLR audio inputs with 48V phantom power deliver high quality audio input options, equipping you with the ability to add professional grade microphones. The NX80 features a built-in microphone and speaker, headphone output, AV USB port and an HDMI video output terminal for HD footage to be fed to an external monitor.

Lightweight and Compact Design for high mobility

Weighing a little over 1kg, the palm sized Sony’s HXR NX 80 enables efficient handheld shooting with minimum fatigue. Its compact form factor and detachable handle enable shooting in environments where large cameras cannot be used or in situations that demand mobility, such as event coverage, electronic news gathering or documentary film making.

General

Weight

Approx. 955g (with lens hood, eyecup)

Approx. 1320g (with lens hood, handle, eyecup, NP-FV70A battery)

Dimensions (W x H x D)

121.0×104.0×274.5 (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)

Power Requirements

DC In: 8.4V

Battery: 7.4V

Power Consumption

Approx. 5.7 W (while recording with viewfinder and XAVC S 4K 2160/30p 60Mbps)

Approx. 6.1 W (while recording with LCD and XAVC S 4K 2160/30p 60Mbps)

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to +60°C

Battery Operating Time

Approx. 155min. with NP-FV70A battery (while recording with LCD, XAVCS 4K 2160/30p, 60Mbps)

Approx. 265 min. with NP-FV70A battery (while playing with LCD, XAVCS 4K 2160/30p, 60Mbps)

Recording Format (Video)

XAVC S 4K : MPEG-4 AVC/

XAVC S HD : MPEG-4 AVC/

XAVC S Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile

AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible

Recording Format (Audio)

XAVC S 4K : Linear PCM 2ch 16bit, 48kHz

XAVC S HD : Linear PCM 2ch, 16bit, 48kHz

XAVC S Proxy : Linear PCM 2ch, 16bit, 48kHz

AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz

Recording Frame Rate

XAVC S 4K (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps

XAVC S HD (1920 x 1080) @120p, 100p 100Mbps/60Mbps

XAVC S HD (1920 x 1080) @59.94p, 50p 50/25Mbps

XAVC S HD (1920 x 1080) @29.97p, 25p 50/16Mbps

XAVC S HD (1920 x 1080) @23.98p 50Mbps

XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps

XAVC S Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps

AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)

AVCHD (1920 x 1080) @59.94i/50i FX mode (24 Mbps) FH mode(17 Mbps)

AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24 Mbps)

AVCHD (1440 x 1080) @59.94i, 50i LP mode (5Mbps)

AVCHD (1280 x 720) @59.94p, 50p, HQ mode (9 Mbps)

Recording/Playback Time

XAVC S 4K, HD @LPCM 2ch 100 Mbps: Approx. 75 min with 64 GB memory card

XAVC S 4K, HD @LPCM 2ch 60 Mbps: Approx. 125 min with 64 GB memory card

XAVC S HD @LPCM 2ch 50 Mbps: Approx. 150 min with 64 GB memory card

XAVC S HD @LPCM 2ch 25 Mbps: Approx. 300 min with 64 GB memory card

XAVC S HD @LPCM 2ch 16 Mbps: Approx. 465 min with 64 GB memory card

AVCHD @LPCM 2ch PS Mode: Approx. 305 min with 64 GB memory card

AVCHD @LPCM 2ch FX Mode: Approx. 360 min with 64 GB memory card

AVCHD @LPCM 2ch FH Mode: Approx. 495 min with 64 GB memory card

AVCHD @LPCM 2ch HQ Mode: Approx. 880 min with 64 GB memory card

Recording/Playback Time (continuous)

AVCHD @LPCM 2ch LP Mode: Approx. 1540 min with 64 GB memory card

Lens

Lens Mount

Fixed

Zoom Ratio

12x (optical), servo

Focal Length

f=9.3 - 111.6mm

equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9)

equivalent to f=32.8 - 393.6mm on 35mm lens(3:2)

Aperture

F2.8 - F4.5

Focus

AF/MF selectable, 10 mm to 8 (Wide), 1000 mm to 8 (Tele)

Image Stabilizer

ON/OFF selectable, shift lens

Filter Diameter

M62 mm

Camera

Imaging Device (Type)

1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor

Effective Pixels

Approx.14.2M pixels (16:9) / Approx.12.0M pixels (3:2)

Built-in Optical Filters

OFF: Clear, 1 : 1/4ND, 2: 1/16ND, 3: 1/64ND

Minimum Illumination

Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)

Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)

LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)

LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)

Shutter Speed

[60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p) (1/125 - 1/10,000 when shooting with 120p) [50i]: 1/6 -1/10,000 (1/100 - 1/10,000 when shooting with 100p)

Slow & Quick Motion Function

[60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps

[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps

[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps

[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps

Super Slow Motion

[60i]1080p:Frame rate selectable 240,480,960fps

[50i]:1080p:Frame rate selectable 250,500,1000fps

White Balance

Pre-set (Indoor:3200K, Outdoor:5600K ± 7 steps, Colour temperature set range:2300-15000K) One push A, B, Auto selectable

Gain

-3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC

Gamma Curve

Selectable

Monitoring

Viewfinder

1.0cm (0.39 type) OLED Approx. 2.36M dots

LCD

8.8cm (3.5 type) Approx. 1.56M dots

Media

Type

Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1

Wi-Fi/NFC

Supported format

IEEE 802.11 b/g/n

Frequency band

2.4 GHz bandwidth

Security

WEP/WPA-PSK/WPA2-PSK

NFC

NFC Forum Type 3 Tag compliant

Input / Output

Audio Input

2 x XLR-type 3-pin (female), line/mic/mic +48 V selectable

Video Output

Integrated into Multi/Micro USB jack (×1), Composite 1.0Vp-p, 75O

Audio Output

Integrated into Multi/Micro USB jack

USB

Multi/Micro USB jack

Headphone Output

Stereo mini jack

Speaker Output

Monaural

DC Input

DC jack

Remote

Integrated into Multi/Micro USB jack, Stereo mini-mini jack (F2.5mm)

HDMI Output

1 x Type A

Built-in Microphone

Omni-directional stereo electret condenser microphone


* Specifications subject to change by the manufacturer without notice

  • Sony HXR-NX80 Camcorder
  • XLR Handle
  • Lens hood
  • Lens Cap
  • Large Eyecup
  • Accessory Shoe Kit
  • USB Cable
  • Rechargeable Battery Pack (NP-FV70A)
  • AC Adaptor (AC-L200D)
  • Power Cord
  • Wireless Remote Commander (RMT-845)
  • Lithium Battery (CR2025) for Wireless Remote Commander
  • Operating Guide
  • CD-ROM

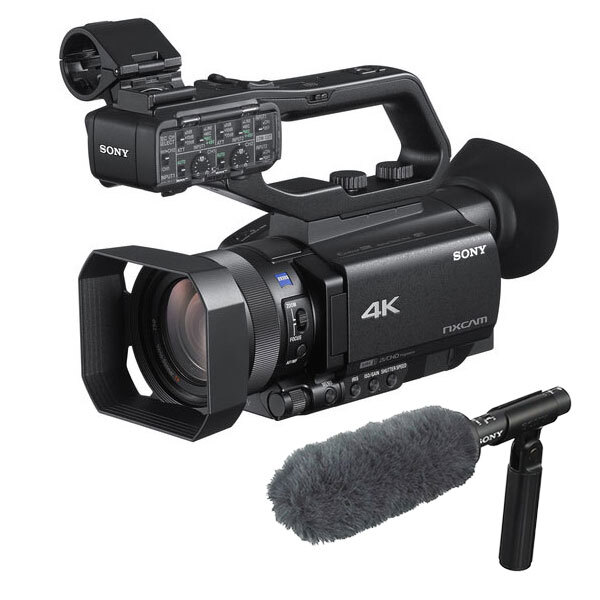

  • Sony Lightweight Shotgun Microphone ECM-VG1
  • 1 x Windscreen
  • 2 x Stand adaptor
  • Mic Spacer
  • Mic Holder
