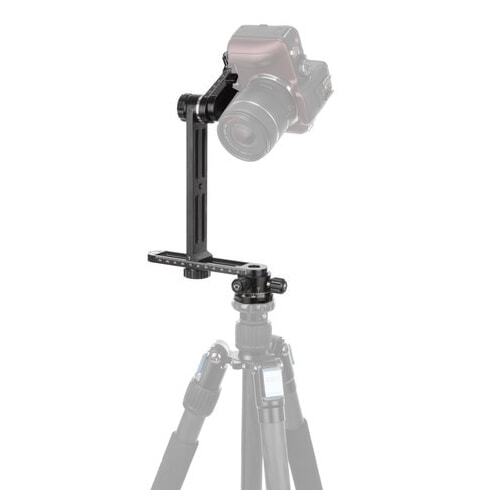

Create Multi-Axial Panoramas

The Sirui PB-10 Panoramic Head is comprised of three independently adjustable sliding arms that allow your camera to rotate horizontally and vertically around the nodal point. This helps you capture parallax and distortion-free images that can be used to create multi-row spherical or classic single-row cylindrical panoramas.

Arca Compatible Mounting Base

The Arca Swiss compatible base can be attached to compatible ball head and quick release clamps or it can also be directly attached to a tripod using its 3/8-inch thread. The base pans 360° and offers step-less rotation or click-stops at 15° intervals for precise panoramic shooting.

Quick Release Mechanism

For easy mounting and removal of the camera, an Arca-Swiss compatible quick release clamp and a rubber-surfaced QR plate are included.

Engraved Scales and Bubble Level

Each of the rails feature laser engraved index rulers that allow you to precisely repeat previous set-ups to create similar images, perfect for doing night and day panoramas. The PB-10 also includes a handy integrated spirit level for easier alignment.

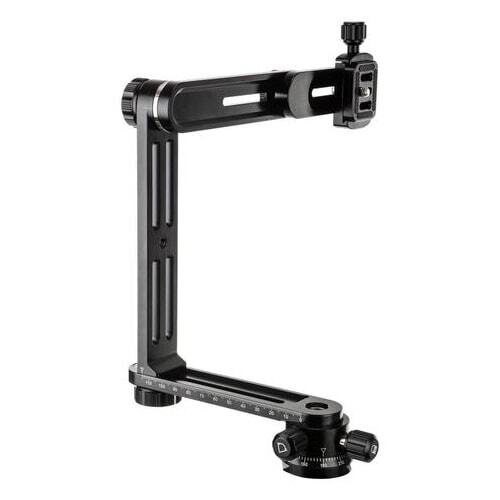

Foldable and Compact Design

Made with lightweight aluminium, the system weighs 420g and can be quickly collapsed without any tools, making it convenient to carry and stow in almost any photo bag. With a maximum load capacity of 3kgs, the Sirui PB-10 Multiaxial Panorama Head is suitable for a range of different cameras.
  • 3kg Maximum Load Capacity
  • Horizontal /Vertical Camera Rotation around Nodal Point
  • Parallax Free Images for Virtual Reality Panoramas
  • 360° Panoramic Base with and without Click-Stops
  • Arca Compatible Base with 3/8-Inch Thread
  • Quick Release Clamp and Camera Plate Included
  • Indexed Scale and Bubble Level

Material

Aluminium Alloy

Base Diameter

43mm

Panning Range

360° Smooth panning or 15° click stops

Tilting Range

360°

Load Capacity

3kg

Camera Screw

1/4-inch

Base Diameter

Arca Swiss compatible with 3/8-inch socket

QR Plate Model

TY-C10 (38 x 30mm)

Spirit Level

Yes

Scaled markings

Yes

Dimensions - Open

170 x 170 x 210mm

Dimensions - Closed

210 x 50 x 85mm

Weight

420g


* Specifications subject to change by the manufacturer without notice
  • Sirui PB-10 Multi-Axial Panoramic Head
  • Sirui TY-C10 Camera Plate
