The Sigma fp is a cutting-edge mirrorless camera that can capture 14-Bit RAW still images and 4K RAW video with 12-bit colour in the CinemaDNG format to an external recorder. Sigma have jam packed this little guy with features and functionality that are all built-it around the L-mount. With the fp Sigma are pioneering a modular system that allows users to customise the camera with additional accessories depending on their requirements.

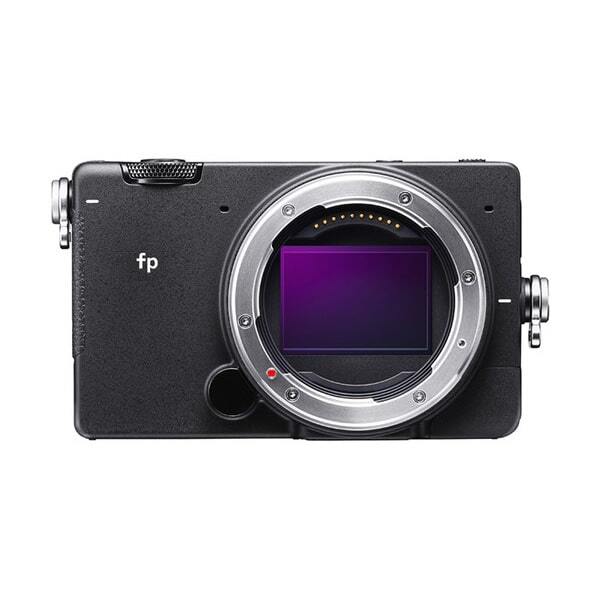

Back-Illuminated 24.6-Megapixel Full Frame Sensor

Housed inside the deceptively tiny fp is a large 24.6-megapixel full frame sensor with a back-illuminated construction designed to capture more light. Unlike previous Sigma cameras the fp uses a Bayer sensor design which produces images that are significantly more compatible with editing software and the sensor does not have a low-pass filter to ensure that image sharpness is optimised.

Compact Cinema & Stills Camera

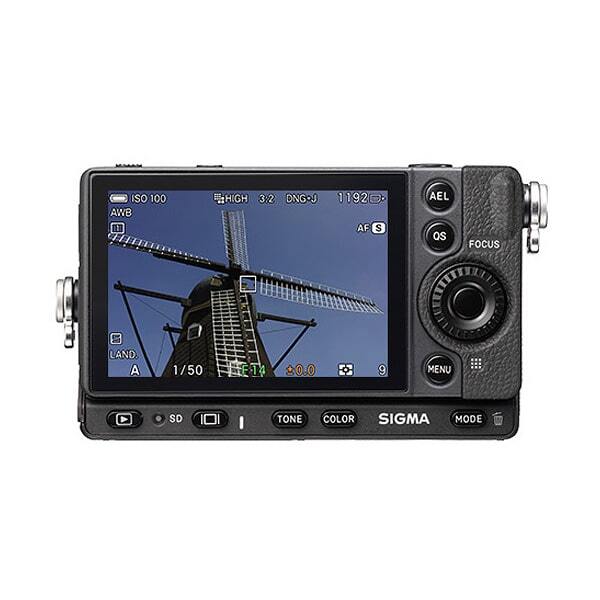

Weighing in at only 370g, the Sigma fp is the world’s smallest and lightest interchangeable lens camera with a full frame image sensor. It is both portable enough for casual everyday snapshots and powerful enough to be built into a professional cinema or studio setup. Even though the camera is super compact it still has a 3.5-inch LCD display with touch functionality for super intuitive control.

Built-in Heat Sink & Robust Construction

With a rugged die-cast aluminium build, the Sigma fp also boasts 42 points of weather sealing that ensures the camera is protected against dust and splash damage when combined with a weather sealed L-mount lens. The camera also has a large heat sink designed to effectively dissipate heat from inside the camera, which is ideal for shooting in hot conditions or for long periods of time.

Designed for L-Mount Lenses

The Sigma fp is designed for lenses created as part of the L-mount alliance that are constructed by Leica, Panasonic as well as Sigma. L-mount lenses are premium quality glass designed to take advantage of the short flange distance of the system. The camera also supports Sigma SA mount lenses with the use of the Sigma MC-21 mount converter.

Extended ISO from 6-102400 & Dedicated Controls

Although the native ISO range of the SIGMA fp is 100-51200, the ISO can be extended as high as 102400 and dropped as low as 6 for more extensive exposure control. The camera also features dedicated buttons for quick access to the tone and colour menus as well as a customisable quick set menu.

14-Bit RAW Photography

Designed to be both a high-quality stills and cinema camera, the fp has several features that ensure it can deliver results, like the ability to capture images with an impressive lossless 14-bit RAW colour depth and an electronic shutter that can shoot up to 1/8000th of second. In additional to the standard AF-S, AF-C and MF focus modes it also has face and eye detection for sharp portraits, as well as a low-light AF mode for focusing in -5EV conditions.

HDR and Cinemagraph Modes

The camera also boasts an innovative HDR shooting mode that uses the cameras electronic shutter to capture 3 images at different exposure levels that are blended in camera for a more balanced result. It also has a ‘Cinemagraph’ feature which you may have guessed from the name, which is a portmanteau of cinema and photograph, is a still image with animated features.

Record 12-Bit 4K RAW & ALL-Intra Compression

Using the Cinema DNG format you can capture 4K RAW video at 24fps with a 12-bit colour depth with an external recorder or 4K RAW video internally using the UHS-II card slot in 25 and 30fps with a 10-bit and 8-bit colour depth. But the video capabilities of the camera don’t stop there, it also records h.264 video with all-intra compression to save space and make editing easier and can capture full HD video at up to 120fps, perfect for slow-motion capture.

Professional Cine Functionality

The fp has some high-end video functions you might not expect from a camera this size, it seems that Sigma have taken the time to add the little things that can make a big difference in video production. Features like waveform display, peaking and zebra guides but also the option to use shutter angles rather than shutter speeds, timecode recording, and a USB-C port for external SSD recording as well as live streaming.

Additional Accessories

The functionality and handling of the camera can be modified and customised by adding accessories like the hot shoe unit that allows you to mount an external flash, the LCD viewfinder that cuts out light and adds a 2.5x magnification to the rear screen. There is also a selection of two different hand grips that improve the handling of the camera, useful when shooting with larger lenses as well as a base grip for hand-grip style shooting.

Format



Type

Interchangeable-lens Mirrorless Type Digital Camera

Storage Media

SD / SDHC / SDXC memory card(UHS-II supported) /Portable SSD (USB 3.0 connection, USB bus power supported)

Lens Mount

L-Mount

Image Sensor



Type

35mm full-frame (35.9mm x 23.10mm) Back-illuminated Bayer CMOS sensor

Camera effective pixels / Total pixels

Approx. 24. 6MP / Approx. 25.3MP

Aspect Ratio

3:2

Color, filter System

RGB Primary color filter

Still Image File Format

Lossless compression RAW(DNG) data12/14 bit, JPEG(Exif2.3), RAW(DNG)+JPEG:recording is possible

Image aspect ratio

[21:9] / [16:9] / [3:2] / [A Size (v2:1)] / [4:3] / [7:6] / [1:1]

File Size



RAW

HIGH:6000×4000 (3840x2560) LOW:3008x2000 (1920x1280)*() In DC Clop Mode

JPEG

[21:9]



HIGH:6,000×2,576 (3,840×1,648)



MED:4,240×1,824 (2,736×1,168)



LOW:3,008×1,288 (1,920×824)



[16:9]



HIGH:6,000×3,376 (3,840×2,160)



MED:4,240×2,392 (2,736×1,536)



LOW:3,008×1,688 (1,920×1,080)



[3:2]



HIGH:6,000×4,000 (3,840×2,560)



MED:4,240×2,832 (2,736×1,824)



LOW:3,008×2,000 (1,920×1,280)



[A Size (v2:1)]



HIGH:5,664×4,000 (3,616×2,560)



MED:4,000×2,832 (2,560×1,824)



LOW:2,832×2,000 (1,808×1,280)



[4:3]



HIGH:5,344×4,000 (3,408×2,560)



MED:3,776×2,832 (2,416×1,824)



LOW:2,672×2,000 (1,712×1,280)



[7:6]



HIGH:4,672×4,000 (2,992×2,560)



MED:3,312×2,832 (2,112×1,824)



LOW:2,336×2,000 (1,488×1,280)



[1:1]



HIGH:4,000×4,000 (2,560×2,560)



MED:2,832×2,832 (1,824×1,824)



LOW:2,000×2,000 (1,280×1,280)

Crop

Equivalent to approx.1.5times the focal length of the lens (on 35mm cameras)

Color Space

sRGB / Adobe RGB

Movie Recording Format [Camera Internal Record]



Movie Format

CinemaDNG(8bit / 10bit/ 12bit) / MOV:H.264 (ALL-I/ GOP)

Audio Format

Linear PCM (2ch 48kHz/16bit)

Recording Pixels / Frame Rate

3,840×2,160 (UHD 4K) /23.98p, 25p,29.97p,FHD (1,920x1,080) / 23.98p, 25p, 29.97p, 59.94p, 100p, 119.88p

Movie Recording Format [HDMI External Output]



Movie Format

HDMI Loop out “External recorder record: ATOMOS Ninja Inferno, Blackmagic Video Assist 4K supported

Audio Format

Linear PCM (2ch 48kHz/16bit)

Focus



Auto Format / Focus Mode

Contrast detection system, Single AF, Continuous AF (with moving object prediction function), Manual Focus

AF Measurement DistanceDetecton Range / AF mode

-5EV~18EV(F1.4:ISO100) / Auto, 49-points selection mode, Free Movement mode, Face/Eye Detection AF mode, Tracking AF mode

AF Lock

Half-press the shutter button, or press the AEL button

Other Focus Functions

AF+MF, MF Assist, MF Guide, Focus Peaking, Release Focus Function, AF-ON, Quick AF, Pre-AF,AF during Image Magnification

Exposure Control



Metering System

Evaluative, Spot, Center Weighted Average

Metering Range

-5~18EV (50mm F1.4: ISO100)

Still Image Shooting Mode

(P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE,(M) Manual

Movie Shooting Mode

(P) Program AE, (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual

ISO Sensitivity

ISO 100-25600, Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400

Exposure Compensation

±5EV (in 1/3-stop increments)

AE Lock

Half-press the shutter button or press the AEL button (setting change required).

Exposure Bracket

3-frame/5-frame stage exposure 3EV (1/3 Step, Standard?Underexposure?Overexposure) (Sequence changeable)

Image Stabilisation System



Image Stabilisation System

Electronic system

White balance



Settings

12types



( Auto, Auto[Lighting Source Priority], Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash,Color Temperature, Custom 1, Custom 2, Custom 3 )

Shutter



Shutter Type

Electronic shutter

Shutter Speed

30 - 1/8,000sec., Bulb

Self-Timer / Remote control

2sec. / 10sec. (Self-Timer)

Drive



Drive Modes

Single shooting, Continuous shooting, Self-timer, Interval shooting

Continuous shooting speed

HI:18fps, MED:5fps, LO:3fps

Maximum number of shots

HIGH: 12frame, MED: 12frame, LOW: 24frame

Monitor



Type / Coverage

TFT color LCD monitor Aspect Ratio 3:2, 3.15, Approx. 2,100,000 dots /Electrostatic capacitance system touch panel / Approx. 100%

Flash (when to use external flash)



Light Emission Mode

S-TTL automatic light control, Manual, Wireless flash, Multi-emission Flash (when to use external flash)

Flash Mode

Red-eye effect reduction / Slow synchronization, 2nd Curtain synchronization

Exposure correction

Max. ±3EV in 1/3EV-step increments

Flash Tuning Speed

Max. 1/30sec.* 1/15 sec. or less at 14bit

External Flash Support

Available when the Hot Shoe Unit HU-11(supplied with this product) is mounted.* S-TTL, Wireless support, Xcontact

Interval shooting



Interval shooting

Available

Color Mode



Color Mode

12types



( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Teal & Orange, Sunset Red, Forest Green,FOV Classic Blue, FOV Classic Yellow, Monochrome )

Other Functions



Recording Mode

STILL Mode: FillLight / Shading Correcton / HDR shooting



CINE Mode: Still image shooting during movie shooting / HDR shooting / Director's view finder

Playback Mode

STILL: Mode In-camera DNG Development



CINE Mode: Cinemagraph / still image cut-out

Built-in Microphone / Speaker



Type

Stereo microphone, Monaural speaker

Language



Display Language

English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese /Korean / Russian / Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish

Interface



USB

USB3.1 GEN1 Type C

HDMI

Type D (Ver.1.4)

Release Terminal

Also used as an external microphone terminal

External Microphone

Available(Plug-in power support)

Headphone output

Unavailable

Flash-synchro Terminal

Dedicated terminal (with hot shoe unit HU-11 (supplied with this prodct) mounted)

Power Source



Power

Li-ion Battery BP-51 *USB power supply available (when the power is turned off)

Dimensions and Weight



Dimensions

112.6 x 69.9 x 45.3mm

Weight

422g (including battery and SD card), 370g (Camera Body Only)

Operating Environment



Operating Temperature

0~+40?

Operating Humidity

86%or less* no condensing


* Specifications subject to change by the manufacturer without notice

  • Sigma fp Mirrorless Camera
  • Li-ion Battery (BP-51)
  • Strap
  • Strap Holder
  • USB AC Adapter (UAC-11)
  • USB Cable (A-C) (SUC-11)
  • HOT SHOE UNIT (HU-11)
  • Body Cap
  • Instruction Manual
