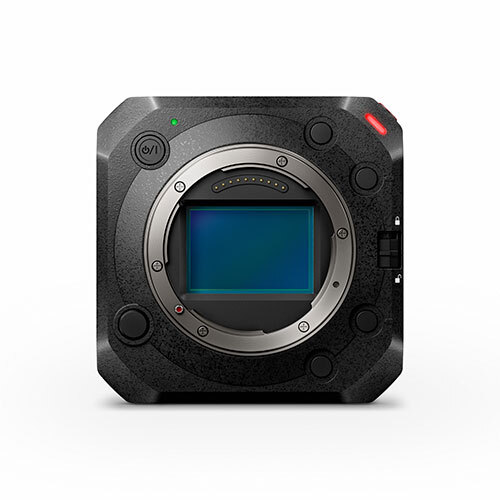

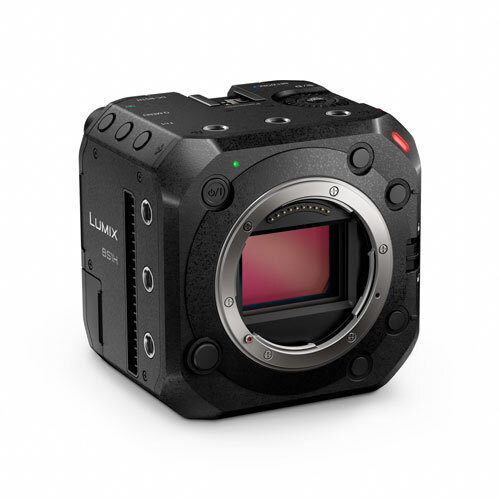

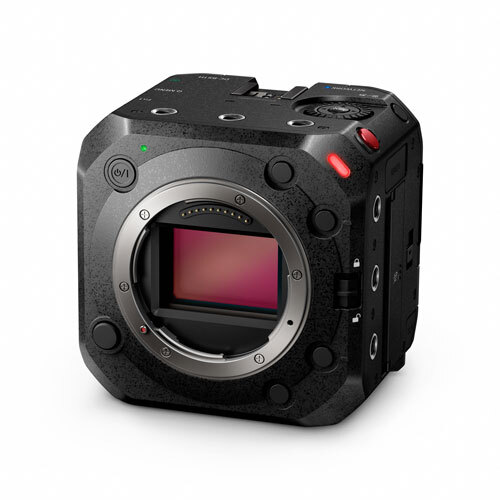

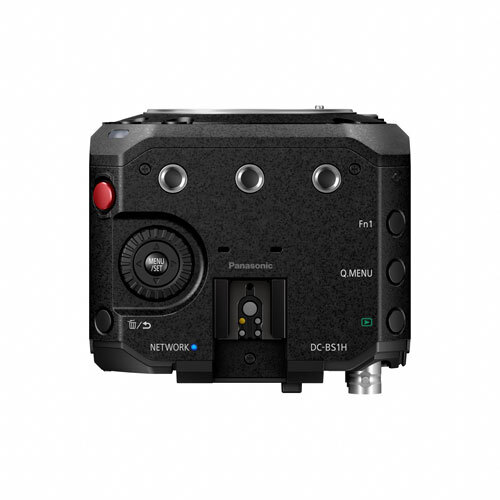

The Panasonic LUMIX BS1H is a full-frame camera developed for video professionals, combining the cinematic video capabilities of the LUMIX S1H with enhanced live stream functionality in a box-style body that is easily deployable. The LUMIX BS1H incorporates a 24-megapixel full-frame sensor and expands its capabilities by integrating 6K full-area high-resolution video with unlimited recording, exceptional depth of field and low-light performance, a broad dynamic range of 14+ stops, V-Log, and more.

Unbox Your Creativity

The BS1H, similar to the S1H full-frame mirrorless camera or the EVA1 portable cinema camera, delivers the colour reproduction and imaging of the VariCam range of Panasonic production cameras with V-Log and V-Gamut.

Box-Style Live & Cinema Full-frame Camera

A full-frame sensor and 6K 24p video recording performance packed into a surprisingly small box-style for anything from live streaming to multi-camera control and drone filming. A system that will improve the workflow of video creation.

24.2MP full-frame sensor with Dual Native ISO technology

The LUMIX BS1H 24.2-megapixel full-frame CMOS sensor provides excellent sensitivity and picture quality in both still images and movies. Dual Native ISO technology improves video performance even further.

6K video recording performance and multiple recording modes

In addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit, and anamorphic 4K recording, The Panasonic BS1H is equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit. With a variety of recording modes, it meets the various video production demands of professionals. In S35mm and PIXEL/PIXEL modes.

Heat management = unlimited recording

In all modes, the LUMIX BS1H allows for limitless video recording. The cooling fan can be operated indefinitely within the specified working temperature range to reduce the camera's temperature rise.

Flexible expandability with wired LAN connection

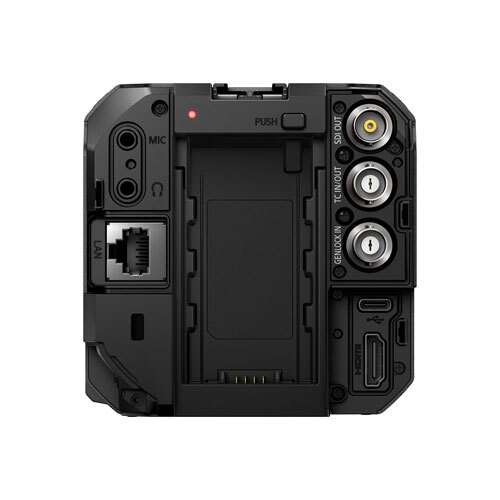

The LUMIX BS1H is small and lightweight, yet sturdy enough for field use, thanks to a body frame made of aluminium and magnesium alloy. This box-style camera has several useful ports including HDMI, SDI, Timecode I/O, and Genlock IN, as well as LAN with PoE+ for power and control.

Simultaneous internal/external recording supported

The LUMIX BS1H supports simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording.

Lens Mount

Leica L

Interchangeable Lens Mount

None

Lens Communication

Yes

Sensor Resolution

Effective: 24.2 Megapixel

Sensor Type

35.6 x 23.8 mm (Full-Frame) CMOS

Sensor Windowing

6K (5952 x 3968) in 3:2
 5K (5888 x 3312) in 16:9
 5K (5376 x 3584) in 3:2
 4K (4096 x 2160) in 17:9
 4K (3840 x 2160) in 16:9
 1080p (1920 x 1080) in 16:9

Built-In ND Filter

None

ISO Sensitivity

100 to 51,200 (Native)
 80 to 204,800 (Expanded)

Shutter Speed

1/16000 to 1/2 sec

Advertised Dynamic Range

14 Stops

White Balance

2500 to 10,000K

Recording Modes

H.265/H.265 Long GOP/MOV 4:2:2 10-Bit:
 4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
 3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
 3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s)
 1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s)
 1920 x 1080i at 50/59.94 fps (50 to 100 MB/s)
 H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
 5952 x 3968p at 23.98/24/25 fps (200 Mb/s)
 5376 x 3584p at 25/29.97 fps (200 Mb/s)
 5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s)
 4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s)
 H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
 1920 x 1080p at 100/119.88 fps (150 Mb/s)
 1920 x 1080p at 47.95/48 fps (100 Mb/s)

Gamma Curve

Panasonic V-Gamut, Panasonic V-Log

Audio Recording

MOV: 24-Bit 48 kHz LPCM Audio
 MOV: 24-Bit 96 kHz LPCM Audio
 MP4: 24-Bit 48 kHz LPCM Audio
 MP4: 24-Bit 96 kHz LPCM Audio

Still Image Support

None

Video Output

4:2:2 10-Bit via HDMI:
 4096 x 2160p at 24/25/30/50/60 fps
 3840 x 2160p at 24/25/30/50/60 fps
 3240 x 2160p at 24/25/30/50/60 fps
 2880 x 2160p at 24/25/30/50/60 fps
 1920 x 1080p at 24/25/30/50/60 fps
 4:2:2 8-Bit via HDMI:
 4096 x 2160p at 24/25/30/50/60 fps
 3840 x 2160p at 24/25/30/50/60 fps
 3240 x 2160p at 24/25/30/50/60 fps
 2880 x 2160p at 24/25/30/50/60 fps
 1920 x 2160p at 24/25/30/50/60 fps
 4:2:2 10-Bit via SDI/BNC:
 1920 x 1080p at 24/25/30/50/60 fps
 1920 x 1012p at 24/25/30/50/60 fps
 1620 x 1080p at 24/25/30/50/60 fps
 1440 x 1080p at 24/25/30/50/60 fps
 4:2:2 8-Bit via SDI/BNC:
 1920 x 1080p at 24/25/30/50/60 fps
 1920 x 1012p at 24/25/30/50/60 fps
 1620 x 1080p at 24/25/30/50/60 fps
 1440 x 1080p at 24/25/30/50/60 fps

Raw Output

HDMI In Full Frame Mode:
 5888 x 3312 12-Bit at 23.98/25/29.97 fps
 HDMI In Super35 Mode:
 4128 x 2176 12-Bit at 23.98/25/29.97/50/59.94 fps
 3536 x 2656 12-Bit at 23.98/25/29.97/50 fps

IP Streaming

RTP, RTSP: 1280 x 2160 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 50.00 Mb/s)

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

Video Connectors

1 x BNC (3G-SDI) Output
 1 x HDMI (HDMI 2.0) Output

Audio Connectors

1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input on Camera Body
 1 x 1/8" / 3.5 mm Stereo Headphone Output on Camera Body

Built-In Microphone Type

Stereo

Other I/O

1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
 1 x BNC Timecode Data Input/Output
 1 x BNC Genlock Data Input/Output
 1 x RJ45 LAN Control, Monitor, Video Input/Output
 1 x 2.5 mm LANC Control Input

Wireless Interfaces

2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control

Battery Type

Panasonic AG-VBR Series

Power Connectors

1 x Weipu SF610/S2 (12 VDC) Input

PoE Support

PoE+ 802.3at

Operating Temperature

14 to 104°F / -10 to 40°C

Operating Humidity

10 to 80%

Accessory Mount

9 x 3/8"-16 Female
 1 x Hot Shoe Mount

Tripod Mounting Thread

2 x 3/8"-16 Female (Bottom)

Material of Construction

Aluminium

Dimensions

9.3 x 9.3 x 7.8 cm (Without Protrusions)

Weight

585 g


* Specifications subject to change by the manufacturer without notice

  • Panasonic LUMIX BS1H Body
  • AC Adaptor
  • AC Cable,
  • Cable Lock Band
  • Body Cap
  • Hot Shoe Cover
  • AUDIO Terminal Cover
  • DC IN Terminal Cover
  • BNC Terminal Cover
  • HDMI Terminal Cover
  • REMOTE Terminal Cove

Manufacturer Warranty


This product comes with a

12month Australian warranty

from Panasonic Australia
