Zoom V3 Vocal Effect Processor

Make your vocals shine in your next livestream, home recording, or onstage performance with the Zoom V3 Vocal Effect Processor a vocal processor teeming with exciting effects and easy-to-use controls.

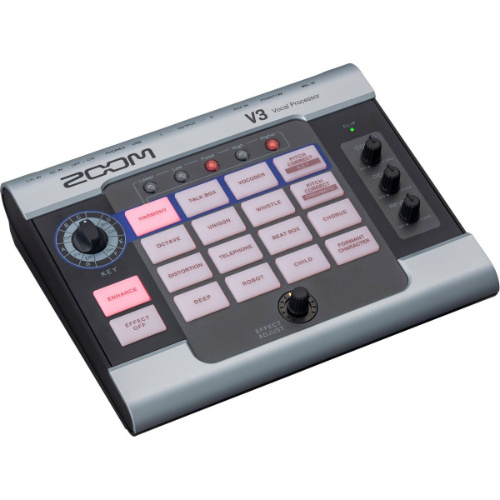

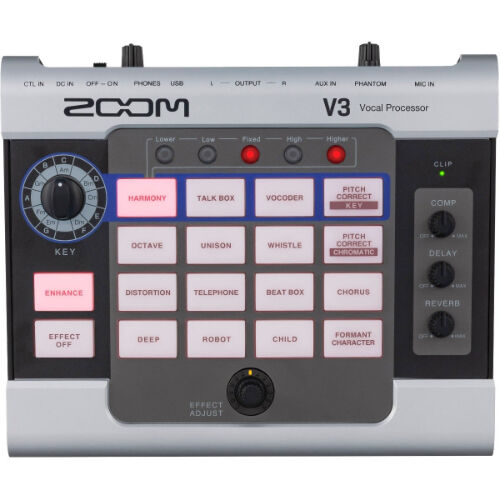

You'll never have to enter a menu to access the V3's powerful functions thanks to the large, clearly-labeled knobs and illuminated buttons, letting your focus remain on being creative and entertaining. Instantly switch between 16 onboard effects, ranging from chromatic or key-based pitch correction to a talk box, vocoder, beat box, and more. Add up to two voices to produce thick 3-part harmonies. Compression, reverb, and delay are also provided with their own separate controls for further refinement of your sound.

The Zoom V3 Vocal Effect Processor inputs features a high-quality mic preamp with a switchable 48V phantom power XLR input plus a special Enhance function that elevates vocal clarity. 3.5mm stereo aux input ensures that you can easily play along to music from your smartphone or backing tracks from a computer. Stereo line and headphone outputs allow simultaneous hookup to a PA system and headphones with independent volume control.

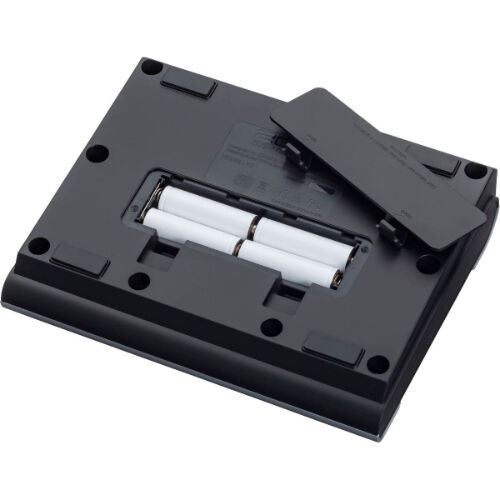

Additionally, the V3 offers USB audio interface functionality, should you want to record directly to your computer for creating podcasts, song demos, YouTube videos, or more. Run the V3 for up to 3.5 hours with the supplied AA batteries, power it via USB, or connect the separately available Zoom AD-16 AC adapter for long-running projects.

Effects 16 (up to Five Concurrent Effects)
Sample Rate 44.1 kHz
Bit Depth Signal Processing: 32-Bit
  AD/DA Conversion: 24-Bit, 128x Oversampling

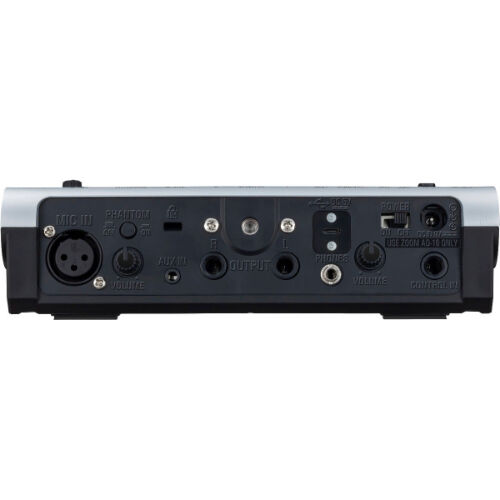

Inputs XLR 3-Pin Female Balanced Mic Input
  1/8" / 3.5 mm TRS Female Unbalanced Stereo Aux Input
Outputs 1/4" TS Female Unbalanced Line Outputs
  1/8" / 3.5 mm TRS Female Unbalanced Stereo Headphone Output
Control Input 1/4" TS (Compatible with Zoom FS01 and FP02M )
USB Port Micro-USB 2.0
Audio Interface 2-Input / 2-Output USB 2.0 Full Speed at 44.1 kHz / 16-, 24-, or 32-Bit
Frequency Response 20 Hz to 20 kHz (+1 dB / −3 dB, 10-Kilohm Load)
Input Gain Mic Input: +3 to +40 dB
Input Level Mic Input: +4 dBu (Maximum)
  Aux Input: -10 dBu (Rated)
Output Level Line Outputs: +6 dBu (Maximum)
Headphone Output Power 20 mW + 20 mW into 32-Ohm Load (Maximum)
Input Impedance Mic Input: 3 Kilohms or Greater (1 kHz)
  Aux Input: 22 Kilohms
Output Impedance Line Outputs: 100 Ohms
Equivalent Input Noise Mic Input: -125 dBu or Less (Phantom Power Off, A-Weighted, 150-Ohm Input, +40 dB Input Gain)
Noise Floor -75 dBu
Phantom Power +48 VDC
Power Requirements 4 x AA Batteries (Included), 5 VDC via USB Bus Power, or 9 VDC via AC Power Adapter (Available Separately)
Power Adapter 9 VDC, 500 mA (Center-Positive) via Zoom AD-16 AC Adapter (Available Separately)
Battery Life Up to 3.5 Hours
Security Kensington Lock Slot

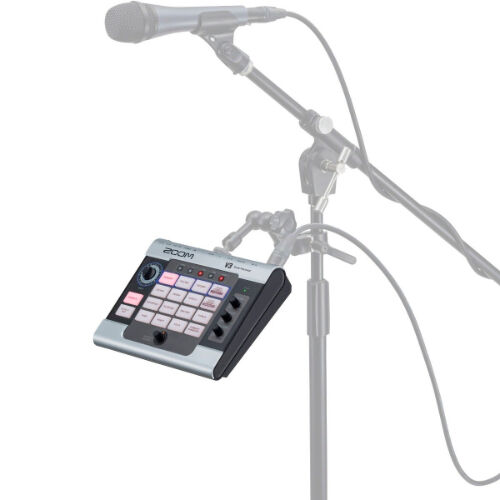

Mounting 1/4"-20 Female Thread
Dimensions (D x W x H) 15 x 19 x 5 cm
Weight 0.6 kg


* Specifications subject to change by the manufacturer without notice.

  • Zoom V3 Vocal Effect Processor
  • AA Batteries
