Key Features:
- Musicians, Podcasters, Streamers
- Bus-Powered Mac/Windows
- 2 F-Series Mic/Line/Hi-Z Preamps
- 1 Headphone Out, 2 Line Out
- 32-Bit Float / 192 kHz AD/DA Conversion
- Music- and Streaming-Mode Routings
- 48V, Zero-Latency Direct Monitoring
- Loopback Mode for Streaming
- MIDI I/O on 5-Pin DIN Jacks
- Works with Mix Control Software
Zoom UAC-232 USB-C Audio Interface
SKU code: 60586

Australian Owned, Online Since 2001

Local Contact Centre

Industry Experts, Knowledgeable Team

Australia Wide Delivery

From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- Musicians, Podcasters, Streamers
- Bus-Powered Mac/Windows
- 2 F-Series Mic/Line/Hi-Z Preamps
- 1 Headphone Out, 2 Line Out
- 32-Bit Float / 192 kHz AD/DA Conversion
- Music- and Streaming-Mode Routings
- 48V, Zero-Latency Direct Monitoring
- Loopback Mode for Streaming
- MIDI I/O on 5-Pin DIN Jacks
- Works with Mix Control Software
You May Also Like
The Essentials:
Bags, Cases & Straps:
Audio Equipment:
Cables & Connectivity:
Zoom UAC-232 USB-C Audio Interface

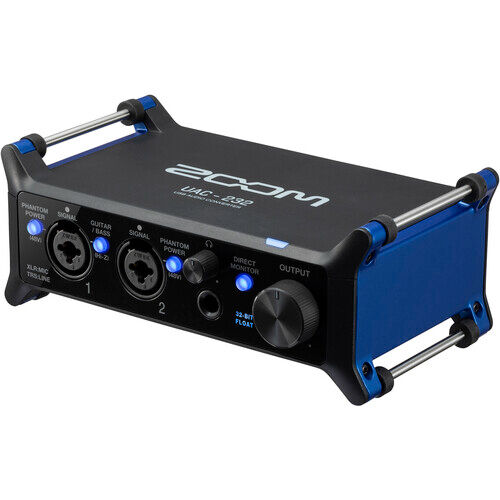

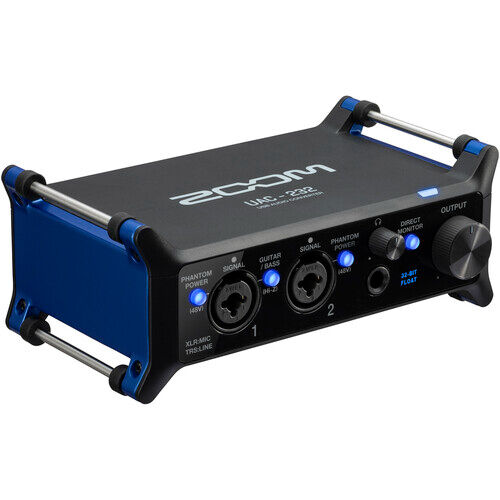

Perfect for content creators, podcasters, streamers, and musicians, the Zoom UAC-232 is a 2-in / 2-out USB-C audio interface featuring 32-bit float recording and professional-grade preamps, making it easy to capture pristine audio without worrying about gain levels. With dual AD converters and support for up to 192 kHz resolution, it delivers low-noise, distortion-free recordings even in unpredictable volume conditions. The UAC-232 eliminates the need for a gain knob, allowing you to focus entirely on your performance or content creation without the risk of clipping or dropouts.

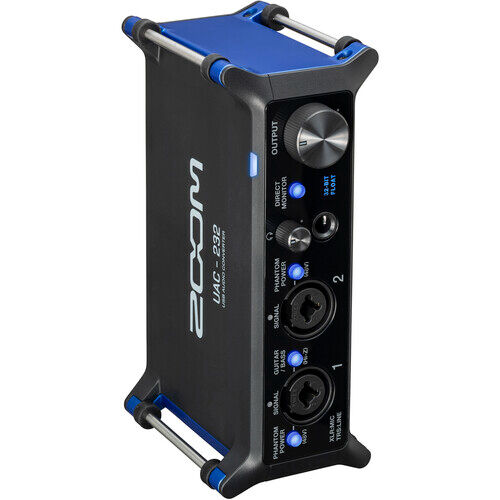

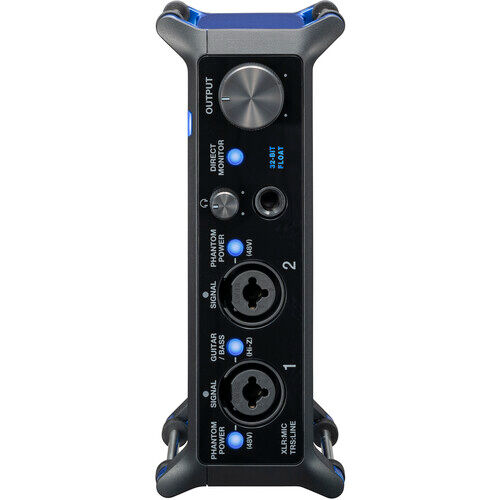

With its compact design, the UAC-232 can be easily transported and placed anywhere. Set it up vertically, horizontally, or even mount it to a mic stand with the included hook-and-loop straps. The unit is bus-powered via your computer or requires an external USB-C power source (available separately) when operating with a Lightning-enabled iOS device.
Compatibility
Connect the UAC-232 via USB-C when recording and streaming in 32-bit float on a Windows/Mac computer running software like Cubase, Pro Tools, OBS, and more.
Record and stream in 24-bit with iOS devices using apps such as GarageBand, YouTube, and Instagram.
32-Bit Float: No Need to Set Gain
32-bit float is ideal for content creators and journalists who are recording out in the field, or for documentary filmmakers who are capturing unique events with unpredictable volume changes, and which they can only get once.
Zoom's Finest Preamps
The UAC-232 is equipped with two, low-noise preamps, equivalent to the preamps found in the company's professional F-Series recorders and known for delivering crisp and clean recordings no matter your mic or instrument.

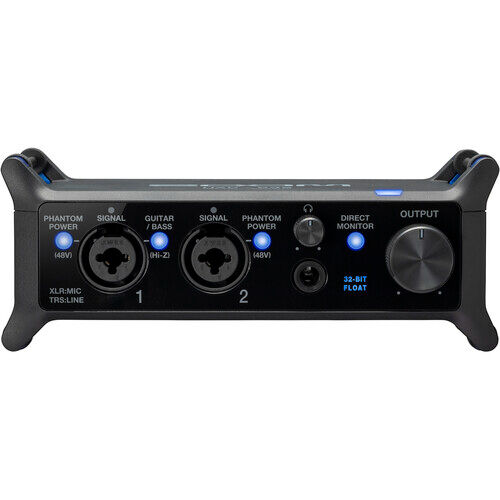

The two XLR-1/4" combo inputs (with switchable 48V phantom for condenser mics) can accept microphone-, instrument-, and line-level signals.
Activate Hi-Z for recording guitar directly to your computer.
Main Outputs with Volume Knob
Two 1/4" balanced line outputs on the back and a volume control knob on the front panel enable you to listen to your audio on studio monitors.
Powerful Headphone Output
Monitor loud and clear with the 100mW headphone output and volume knob on the front panel.
The headphone amp delivers enough power to drive the most demanding headphones-with no distortion.
Mix Control Software with Music Mode and Streaming Mode
After plugging the UAC-232 to your Windows/Mac computer or iOS device, open up the Mix Control software (free download available separately) to complete your setup.
Select either Music or Streaming mode. Music Mode will route the inputs separately to your DAW for recording. Most DAWs are compatible with 32-bit float recording, including Pro-Tools, Ableton, Cubase, and more.
Switch to Streaming Mode and both inputs will be combined into a single signal to seamlessly route the audio for streaming on twitch, YouTube, or Facebook via software such as OBS.
Loopback Function
If you want to add audio from a web browser or music player to your stream or recording, you can activate Loopback to combine the input audio with playback from your computer and route it back to your DAW. Perfect for adding background music to your stream or singing live with an instrumental track.
Latency-Free Monitoring
Use the Direct Monitor Switch to send the input signals directly to your headphones, while routing the same signals to your DAW or streaming software.
Mix Control allows you to adjust volume and pan for your direct monitor feed.

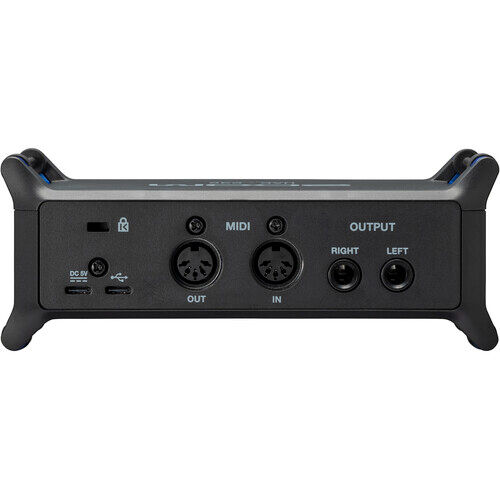

5-Pin MIDI Interface
The 5-pin MIDI in/out enables you to connect to external MIDI gear such as drum machines, synths, and keyboards.
Channels of I/O
|
2 Inputs / 2 Outputs
|
Maximum Sampling Rate |
192 kHz / 32-Bit Float
|
Number of Microphone Inputs |
2
|
Analog Audio I/O |
Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
|
1/4" TRS Balanced Line Output | |
1/8" / 3.5 mm TRS Headphone Output | |
Host Connection |
USB-C
|
OS Compatibility |
macOS
|
Windows | |
Power Requirements |
USB Bus Power
|
Channels of I/O
|
2 Inputs / 2 Outputs
|
Maximum Sampling Rate |
192 kHz / 32-Bit Float
|
Number of Microphone Inputs |
2
|
CONNECTIVITY | |
Analog Audio I/O |
Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input
|
1/4" TRS Balanced Line Output | |
1/8" / 3.5 mm TRS Headphone Output | |
Phantom Power |
48 V, Selectable On/Off
|
Host Connection |
USB-C
|
Host Connection Protocol |
USB 2.0
|
USB (Non-Host) |
USB-C (Power Input)
|
MIDI I/O |
1x DIN 5-Pin Input
|
1x DIN 5-Pin Output | |
PERFORMANCE | |
Frequency Response |
20 Hz to 60 kHz /-1 (at 192 kHz)
|
20 Hz to 40 kHz /-1 (at 96 kHz) | |
20 Hz to 20 kHz /-1 (at 44.1 kHz) | |
Maximum Input Level |
XLR Mic/Line:
|
+6 dBu | |
1/4" Mic/Line: | |
+24 dBu | |
1/4" Hi-Z: | |
+11.5 dBu | |
Maximum Output Level |
1/4" Line:
|
+18 dBu | |
Headphone Output Power |
1/4":
|
100 mW per Channel into 32 Ohms | |
Impedance |
XLR Mic/Line Inputs:
|
2.7 Kilohms | |
1/4" Mic/Line Inputs: | |
4 Kilohms | |
1/4" Line Outputs: | |
100 Ohms | |
1/4" Hi-Z Inputs: | |
1 Megohm | |
1/8" / 3.5 mm Headphone Outputs: | |
12 Ohms | |
EIN |
< 127 dBu
|
Sample Rates |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
|
Bit Depths |
32-Bit Float / 24-Bit
|
COMPATIBILITY | |
OS Compatibility |
macOS / Windows
|
OS Compatibility |
macOS
|
Windows | |
Mobile Device Compatibility |
iPhone (with Lightning Connector)
|
iPad (with Lightning Connector) | |
POWER | |
Power Requirements |
USB Bus Power
|
Power Consumption |
5 W (Maximum)
|
PHYSICAL | |
Dimensions |
16.4 x 10.5 x 6.5 cm
|
Weight |
0.355 kg
|
* Specifications subject to change by the manufacturer without notice.
- Zoom UAC-232 USB-C Audio Interface
- USB-C Cable
- Flat Cable Fastener
