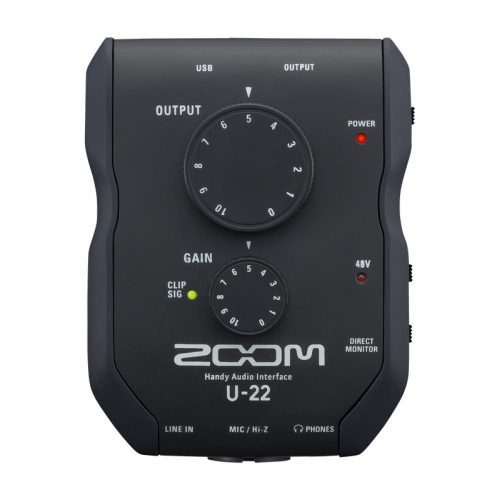

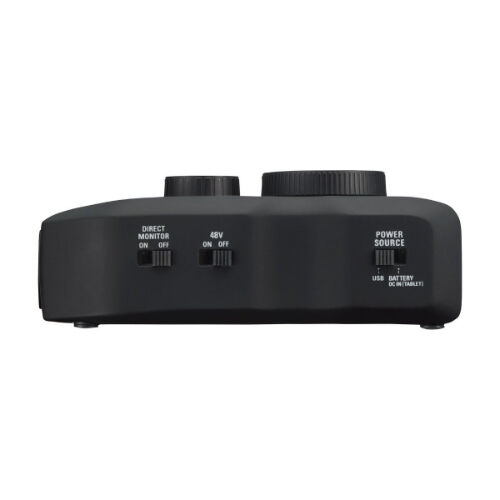

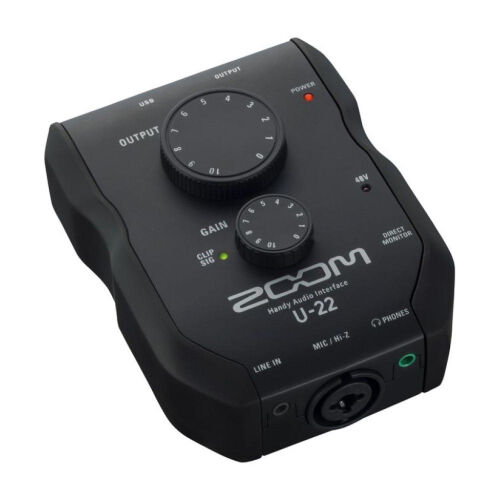

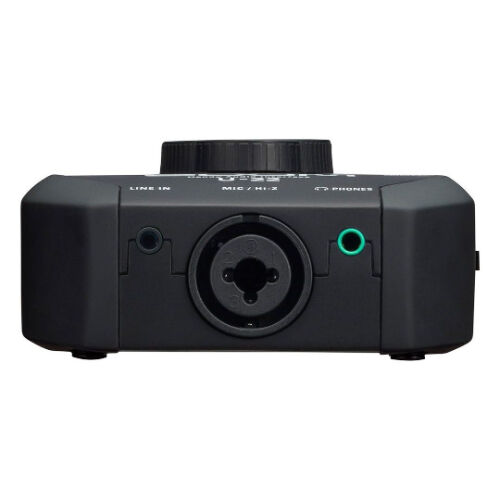

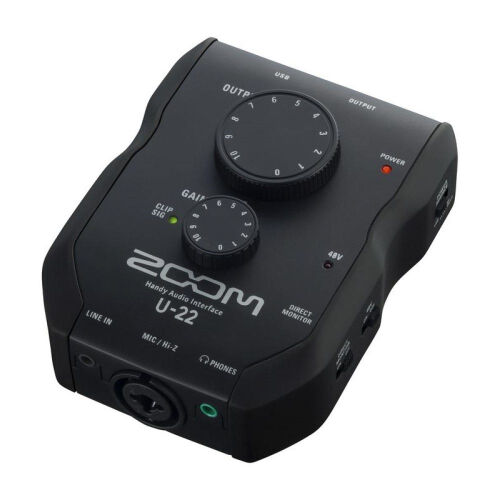

Zoom U-22 Handy Audio Interface

The Zoom U-22 Handy Audio Interface is a compact and versatile solution for mobile recording and performance, featuring a 2-in/2-out design that easily connects to a laptop or iPhone/iPad, allowing you to capture high-quality audio wherever you go.

The interface features a high-performance, low-noise mic preamp so you can record vocals, instruments, and more with pristine sound quality-at resolutions up to 24-bit/96 kHz. The U-22 delivers the same excellent sound as our U-44 and U-24, with an even more compact form factor.

GENERAL

Connector xlr/trs combo jack (xlr: 1 hot, trs: tip hot)
Input gain 0 – 43 db
Input impedance 2.6 k ω (mic) 484 k ω (hi-z)
Maximum input level -0.8 dbu (mic) /+8.7 dbu (hi-z)
Phantom power +48v

ANALOG IN

Connector stereo mini jack
Input impedance 22 kω
Maximum input level +1.0 dbu

ANALOG OUT

Connector rca (coaxial)
Maximum output level -0.8 dbu (at 0 dbfs) (into 10 kω load)
Output impedance 1 kω

ADDITIONAL SPECS

Frequency characteristics at 44.1 khz: ±1.5db: 20 hz - 20 khz at 96 khz: ±2 db: 20 hz - 40 khz
Input conversion noise measured ein: -120 db or less (ihf-a) at 43 db, 150 ω input
Number of audio recording and playback channels recording: 2 channels playback: 2 channels
Sampling frequencies 96 khz, 88.2 khz, 48 khz, 44.1 khz
Bit depth 24-bit
Interface usb 2.0
Power source usb bus power (type b) zoom ad-17 (micro-b) dc 5v power supply (micro-b) 2 aa batteries (about 5 hours continuous operation with phantom power off)
  Power consumption:    5w maximum
Dimensions 11.9 x 9.1 x 4.4 cm
Weight 0.151 kg




* Specifications subject to change by the manufacturer without notice.



  • Zoom U-22 Handy Audio Interface
  • Operation manual
  • USB Cable
  • Ableton Live Lite software download code
