Zoom AMS-24 USB-C Audio Interface

Designed for musicians who need a portable and flexible solution, the Zoom AMS-24 is a compact USB-C audio interface that makes recording and streaming easy on Mac, Windows, iOS, and Android devices. It features two TRS/XLR combo inputs, two TRS outputs, dual headphone jacks, and dedicated modes for both streaming and recording, offering a streamlined setup that's perfect for creating high-quality audio content on the go.

Channels of I/O
Analog:
  2 Inputs / 2 Outputs
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2x Knob
Gain/Trim Range
+8 to +54 dB

CONNECTIVITY

Analog Audio I/O Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
  Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
  1/4" TRS Balanced Line Output
Phantom Power
48 V, Selectable On/Off
Host Connection
USB-C
Host Connection Protocol
USB 2.0

PERFORMANCE

Frequency Response
20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz)
  20 Hz to 40 kHz +0/-3 dB (at 96 kHz)
Maximum Input Level
Combo XLR-1/4" Mic Inputs:
  +6 dBu
  Combo XLR-1/4" Line Inputs:
  +22 dBu
  Hi-Z:
  +8.5 dBu
Maximum Output Level
1/4" Line Outputs:
  +10 dBu at 0 dBFS
Headphone Output Power
1/8" / 3.5 mm:
  30 mW per Channel into 32 Ohms
Impedance
Mic Inputs:
  2.7 Kilohms
  Line Inputs:
  18 Kilohms
  Line Outputs:
  100 Ohms
  Hi-Z Inputs:
  330 Kilohms
  Headphone Outputs:
  10 Ohms
EIN
≤ -120 dBu (150-Ohm Source)
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Bit Depths
24-Bit
OS Compatibility
Windows / macOS
OS Compatibility
Windows
  macOS

POWER

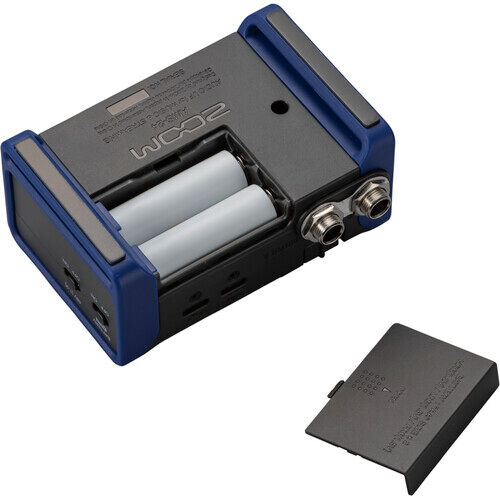

Battery Type
AA
Approximate Battery Life
4 Hours (Alkaline, 32-Ohm Load, Phantom Off)

PHYSICAL

Dimensions
9.4 x 7.4 x 4.6 cm
Weight
0.134 kg




* Specifications subject to change by the manufacturer without notice.



  • Zoom AMS-24 USB-C Audio Interface
  • USB-C Cable
