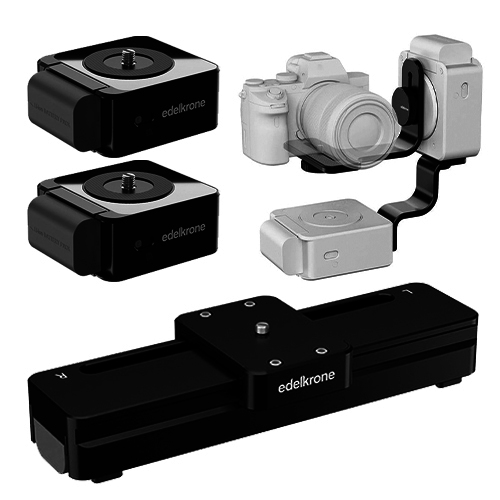

The Edelkrone Pan, Tilt and Slide Bundle include 2x HeadONE 1 x Tilt Kit for HeadONE and 1 x SliderOne v2. This kit adds programmed slides, pans and tilts to your video capture with your camera and provides you smooth motion control functionality.

The edelkrone SliderONE V2

The edelkrone SliderONE V2 is a super-compact motorised slider that creates easily repeatable camera movement to increase the production value of your shots and take your filmmaking to the next level. Great for product videos, time-lapses, and interviews. The V2 builds on the success of previous models with improved motors that can perform a smooth vertical movement with a payload up to 2.3kg and horizontally with up to 4.5kg. Using a combination of step motor technology and backlash-free gears the slider is not only quiet but incredibly reliable.

Ultra-Portable Design
Designed to be a super versatile addition to your setup, the SliderONE V2 is smaller than the original and weighs a mere 1.1kg. This means it’s highly likely the SliderONE V2 will live in your camera bag, so you are ready to capture professional camera movement at any time. Like the rest of the system, it supports a range of other modular edelkrone devices so you can scale your setup based on the production.

Quiet Achiever with Super Silent Stepping Motor
The SliderONE V2 uses advanced step motor technology for an ultra-quiet operation that delivers reliable results in silence. Perfect for weddings, interviews and filmmaking where the audio is just as important as the visuals.

Backlash Free Gear Design for Payloads up to 4.5kg
Using a completely new mechanical design, the motorised slider uses backlash-free gears to improve the power and performance of the unit. This design gives the motors enough grunt to vertically lift camera rigs that weigh up to 2.3kg as well as an impressive 4.5kg for horizontal movement.

Aluminium and Stainless-Steel Build Quality
Built to last, the edelkrone SliderONE V2 is constructed out of CNC machined aluminium and stainless-steel components, ensuring that it is hardly enough to handle the rigours of daily use. Even though it is built to be robust, the system still only weighs 1.1 kg, making it as portable as it is reliable.

Edelkrone Mobile App for Wireless Control
The edelkrone Slider One V2, like other Edelkrone gear, can be controlled via Bluetooth from a mobile device. This provides one point from which all units can be controlled, allowing complex movements to be programmed and repeated with pinpoint accuracy over and over again.

Edelkrone HeadONE

Built to be taken anywhere, the HeadONE weighs less than 600g and can fit easily in a camera shoulder bag or backpack. The unit is powered by the ever-popular LP-E6-style batteries and has a 3/8-inch screw for a tripod head as well as the 3/8-inch port at the bottom to mount the unit to tripod legs. The HeadONE can also be used on a desktop or flat floor without requiring a stand.

Single or Dual Head Setups
One device can be used to create a panning left-to-right motion or combined with an extra HeadONE unit with the tilt kit, so you can capture a combination of left-to-right pans as well as up-and-down tilting movements. Perfect for time-lapse and astrophotography, using two units can add eye-catching two-axis cinematic movement.

Smooth Video and Time-lapse Motion
Once you’ve set up your movement it is possible to switch between capturing live motion video or time-lapse, giving you the ability to capture a range of different footage that can be merged. One of the best features about motorised motion control is that it can allow you to re-create the same motion again and again, with precise accuracy.

Step Motor for Silent Operation with Backlash-Free Gears
The HeadONE uses ultra-silent step motor technology that provides a fine level of control over your shot, combined with a backlash-free gear design that ensures that motions can be repeated accurately and consistently.

Edelkrone Tilt Kit for HeadONE

The edelkrone tilt-kit for HeadONE is made like most of the edelkrone gear is, from precisely machined aluminium and stainless steel, ensuring it is robust and super sturdy. Even though it’s built tough though, the kit only weighs 500g, making it easy to add your camera bag.

HeadONE

Size (L x W x H)

99 x 95 x 47.5 mm

Weight

580 g

Recommended camera load Pan

6.8 kg

Mounting options

3/8"-16 mounting screw on top. 3/8"-16 mounting port on bottom. (3/8"-16 to 1/4"-20 reducer bushing for mounting port are provided.)

Min. step size

0.00061 degree

Max. speed

25.7 degree/sec

Number of axes

Single

Max. rotation

8 x 360°

Motor type

Step motor with ultra-high-res encoders.

Supported fps

All

Power input

Requires x1 Canon LP-E6 type battery to operate. Battery bracket included. Battery not included.

Battery life

With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 3 hours (continuously at full speed)

Shoots 15000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Can be paired

SliderONE v2, Slide Module v2 / v3, DollyONE, DollyPLUS

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminium & stainless steel components.

Tilt Kit

Size

L Bracket (L x W x H) 117 x 94 x 105 mm

Tilt Piece

166 x 67 x 60 mm

Weight

500 g

Recommended camera load

3.1 kg or less

Mounting options

1/4" -20 mounting screw on L-Bracket.

Number of axes

2 (Pan & Tilt) (with second HeadONE)

Compatibility

HeadONE

Materials

CNC machined aluminium & stainless-steel components.

SliderONE v2

Size (L x W x H)

10.6 x 3.7 x 1.9 in (270 x 95 x 50 mm)

Weight

2.4 lb (1.1 kg)

Recommended load

20 lb (9 kg) or less, works on incline 5 lb (2.3 kg) or less carrying capacity on vertical operation

Mounting options

3/8"-16 mounting screw on top, 3/8"-16 mounting port on bottom

Camera Travel

7.87 in (20 cm)

Min. step size

0.222 µm

Max. speed

0.52 in/sec (1.33 cm/sec)

Supported fps

All

Number of axes

Single (Slide motion)

Motor type

Step motor with ultra-high-res encoder

Power input

Canon LP-E6 type battery (Battery NOT included)

Battery life

With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 1.5 hours (continuously at full speed)

Shoots 9000 photographs (in Time-Lapse mode)

Shutter trigger socket

2.5 mm (Shutter trigger cable sold separately)

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

Can be paired

HeadONE (Both in single or dual modes), HeadPLUS, HeadPLUS PRO

App compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminium & stainless-steel components.


* Specifications subject to change by the manufacturer without notice

  • 2 x HeadONE
  • 1 x Tilt Kit
  • 1 x SliderOne v2
