The Sony’s FDR-AX700 camcorder shows off a new 4K-capable 1-inch CMOS sensor that can capture HDR footage with Hybrid Log-Gamma with an impressively realistic colour and brightness range. The versatile 12x optical zoom ZEISS Vario-Sonnar T* lens starts from an ultra-wide 29mm (35mm equivalent) and combined with Sony’s clear image zoom technology can easily record far away subjects. Combined with lightning fast hybrid autofocus with 273 phase detection AF points and a massive 84% frame coverage the AX700 can shoot anything and everything from home videos, family holidays, weddings and events to professional productions with multi-camera setups.

1.0 Type Exmor RS CMOS Stacked Sensor

With a massive 1-inch 14.2-megapixel image sensor the AX-700 captures full 4K footage and uses a stacked design to achieve the ultra-fast readout speeds required for UHD and super slow-motion footage. The large sensor creates a shallow depth of field for beautiful cinematic footage and Sony’s back-side-illumination (BSI) technology enhances low light performance to minimise image noise when shooting at higher ISO settings.

Enhanced BIONZ X Image Processor

The huge amount of data captured by the sensor is fed into a BIONZ X image processor that crunches the numbers to deliver the ability to capture high resolution HDR/HLG video and super slow-motion recording of up to 960/1000 fps. The processor also enables the camcorders ultra-fast autofocusing speeds for incredibly accurate AF performance.

29mm Wide-Angle Lens with 12x Optical Zoom

Using a Zeiss Vario-Sonnar lens with a T* coating, the camera delivers excellent image quality with an incredibly versatile 12x optical zoom that allows you to capture a range of cinematic shots without needing to change lenses. The lens uses advanced aspherical as well as extra-low dispersion glass elements to ensure that image contrast and resolution is exceptional, even when shooting backlit subjects. Controlling your framing is easy with a large zoom rocker for variable speed control.

Optical Image Stabilisation and Clear Image Zoom

Built-in Optical SteadyShot with Active Mode minimises vibrations and camera shake when shooting handheld to deliver consistently smooth footage across the entire focal range. The active mode is especially useful when shooting while walking and can be combined with the zoom modes to produce steady footage, even at the impressive 24x clear image maximum zoom.

XAVC-S Recording in 4K and Full HD

Thanks to the high-quality image sensor, the camcorder captures 4K and Full HD video and can record in Sony’s XAVC-S format for high bit-rate recording as well as AVCHD. The XAVC-S format combines quality with workflow flexibility and storage efficiency, and captures footage with bit rates of up to 100Mbps for 4K and 50Mbps for Full HD. It also supports 100Mbs recording at 120fps in Full HD for slow-motion shooting with no time limits.

High-Resolution OLED Viewfinder with 3.5-inch LCD Touchscreen

The bright 2359K dot OLED EVF eliminates colour breaking for sharp accurate visibility, even in sunny conditions. Combined with the 3.5-inch touchscreen this lets you easily frame your shot and manually focus with confidence. The 1555k dot screen articulates fully so you can compose shots from more creative angles and the touch function lets you change autofocus by tapping the screen.

Quick Motion and Super Slow Motion

The camcorder not only records 120fps slow motion in Full HD with no time limits, but using Sony’s slow & quick (S&Q) mode can also shoot with a range of different frame rates from as low as 1fps for creating time-lapses and as high as 960/1000fps, depending on whether the camera is set to PAL or NTSC mode. This ultra-fast capture mode allows you to shoot 40x super slow-motion sequences in bursts.

Instant HDR Footage with Hybrid Log Gamma

HDR (High Dynamic Range) technology is fast becoming the standard for delivering true-to-life footage due to its wide colour gamut and colour range that more accurately captures what our eyes see. The AX700 shoots HDR footage with HLG (Hybrid Log-Gamma) which provides a realistic picture quality without requiring colour grading, just connect to a HLG-compatible TV for playback. If you prefer more control the camera shoots S-Log2 and S-Log3 colour profiles for a significantly wider dynamic range once it has been colour graded.

Wide Coverage Hybrid Auto Focus System

The FDR-AX700’s ultra-fast hybrid focus system combines the best of phase and contrast detection autofocus for amazingly fast and accurate results. 273 AF points cover 84% of the frame which combined with Sony’s Lock-on AF capabilities and wide area coverage ensure that fast moving subjects remain in focus, even while panning and tracking. The tracking depth range and subject switching sensitivity can be adjusted for different conditions for absolute autofocus precision.

Integrated ND Filters

Built-in 1/4, 1/8 and 1/64 ND filters allow you to control the light level without changing camera settings for better exposure control. This allows you to shoot in bright outdoor conditions with the aperture wide open to capture beautiful shallow depth of field shots without risking over-exposure.

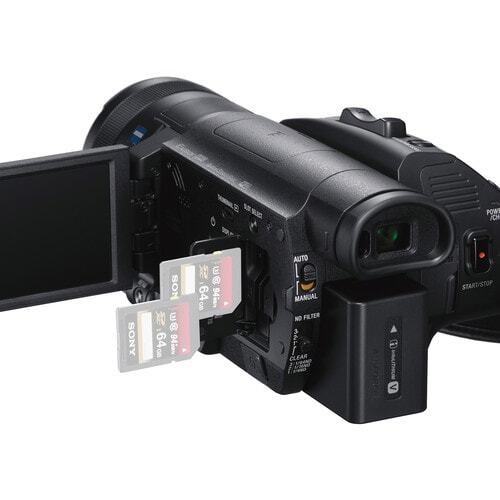

Dual Storage Media Slots for Recording Flexibility

For longer recording sessions the camcorder is equipped with double SD card slots that allow you to record simultaneously on both cards to create an identical backup, or alternatively the dual card system can be set up as an overflow in the relay recording mode, which automatically switches from one card to the next when space runs out.

Customisable Manual Lens Ring and Control Buttons

A manual control ring around the lens barrel can be set to control either focus or zoom using a dedicated toggle button, and the cameras iris, gain/ISO, and shutter speed can be quickly adjusted using the buttons conveniently located on the side.

Built-in Wi-Fi, NFC, LANC Port and Wireless Remote Control

The cameras built-in Wi-Fi with one-tap NFC setup unlocks a world of creative possibilities that allows you to preview your composition from your phone, start and stop recording, and transfer files to your mobile device. A built-in LANC port allows you to control the camcorder with a LANC compatible accessory and a wireless controller is also included.

Assisted Workflow Tools

Designed to offer professional recording features in a compact portable body the AX700 supports standard SMPTE timecode to embed crucial information for significantly easier multi-camera editing. 8-digit user bit code support is also included for improved file management on large scale projects and the camera can be setup to record lightweight proxy files at the same time as the high-resolution files for less CPU intensive editing.

Multi-Interface Shoe

The camcorder is equipped with Sony’s Multi-Interface (MI) Shoe that supports a range of accessories like wireless microphones, LED lights and more. The multi-interface shoe can work as an audio input from the UWP series of wireless receivers in combination with the 3.5mm stereo mic input and headphone port to increase the audio production value of your project.

Lightweight and Ergonomic Design

Weighing in at just 1kg, the Sony FDR AX 700 is designed for easier handheld shooting and more ergonomic operation. A comfortable handgrip with an adjustable hand strap helps you keep the camera steady even when shooting for long periods.


Sensor Type

1.0-type (13.2mm x 8.8mm) stacked Exmor RS CMOS sensor

Effective Pixels (Video)

Approx.14.2 M pixels(16:9)

Effective Pixels (Still Image)

Approx. 14.2M pixels(16:9)/Approx. 12.0M pixels(3:2)


Image Processor

BIONZ X image processor


Lens Type

ZEISS Vario-Sonnar T*

Filter Diameter

2.44 in

Lens Cover

Lens Cap


f/2.8 -f/4.5

Focal Distance

f = 9.3 - 111.6mm

Focal Length (35mm equivalent)

Video: f=29.0 - 348.0mm (16:9)

Focal Length (35mm equivalent)

Still Image: f=29.0 - 348.0mm(16:9), f=32.8 - 393.6mm(3:2)

Minimum Focus Distance

Approx. 10.3 mm (Wide), approx. 100.0 cm (Tele), Approx. 1 cm , Approx. 100 cm (Tele)

Iris Diaphragm

7 blades

ND Filter

OFF, 1/4, 1/16, 1/64


Optical Zoom


Digital Zoom


Clear Image Zoom

4K: 18x, HD: 24x

View Finder

Viewfinder Type

1.0 cm (0.39 type) OLED/Colour 2,359,296 dots equivalent

Field of View


Dioptre adjustment



Screen Type

8.8 cm(3.5 type) Xtra Fine LCD display (1,555K) Wide (16:9)

Touch Panel


Brightness Control


Marker/Grid Display


Angle Adjustment

Opening Angle: max. 90 deg., Turning Angle: max. 270 deg.

Image Stabilisation

Image Stabilisation Type

Optical SteadyShot image stabilisation with Active mode (Wide to Tele)


Focus Type

Fast Hybrid AF (phase-detection AF/contrast-detection AF)

Focus Points

Max. 273 points (phase-detection AF)

AF Drive Speed

Yes (7 steps)

AF Subject Track Set

Yes (AF Tracking Depth(5 steps), AF Subject Switching Sensitivity(5 steps))

Focus Mode

Auto/Manual(Touch Panel/Dial)

Focus Area

Wide/Zone/Centre/Flexible Spot

Phase AF Frames

Yes (On/Off)

Fast Intelligent AF


Lock-On AF


Manual Focus Assist

Magnified display for precise manual focus (x4/x8), Peaking Display



Auto, Flexible Spot(Touch Panel), Manual(Dial/Menu)

Metering Modes


Exposure Compensation

AE Shift (Dial/Touch Panel)



Auto Iris Control

F2.8 - F11

Manual Iris Control

F2.8 - F11

Manual Exposure Assist

Zebra Pattern Display

Backlight Compensation

Yes (Auto)

Gain Control


AGC Limit


Minimum Illumination

[NTSC] Standard: 3 lux(1/60 Shutter Speed), Low Lux 1.7 lux(1/30 Shutter Speed), NightShot: 0 lux(1/60 Shutter Speed), [PAL] Standard: 3 lux(1/50 Shutter Speed), Low Lux 1.7 lux (1/25 Shutter Speed), NightShot: 0 lux(1/50 Shutter Speed)

Shutter Speed

Auto Control Range

[NTSC] 1/8-1/10000 [PAL] 1/6-1/10000


[NTSC] 1/60-1/10000 [PAL] 1/50-1/10000

Manual Iris Control(Photo Mode)

[NTSC] 1/60-1/10000 [PAL] 1/50-1/10000

Manual Shutter

[NTSC] 1/8-1/10000 [PAL] 1/6-1/10000

Smooth Slow


White Balance

White Balance Modes

Auto/Onepush A/Onepush B/Outdoor/Indoor/WB Temp

White Balance Shift

Yes (Outdoor -7 to +7 15 steps)

Storage Media

Media Type

AVCHD, Still: Memory Stick PRO Duo (Mark 2), Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD/SDHC/SDXC Memory Card (Class 4 or Higher), XAVC S 4K (100 Mbps): SDXC Memory Card(UHS-I U3), XAVC S 4K(60 Mbps): SDXC Memory Card(Class 10 or Higher), XAVC S HD: SDXC Memory Card(Class 10 or Higher)

Internal Media



Recording Format (Video)

AVCHD format ver. 2.0 compatible: MPEG4-AVC/H.264, XAVC S format: MPEG4-AVC/H264, XAVC S Proxy: MPEG-4 AVC/H.264

Video Resolution

[NTSC] XAVC S 4K: 3840 x 2160/30p, 24p XAVC S HD: 1920 x 1080/120p, 60p, 30p, 24p AVCHD: 1920 x 1080/60i (FX, FH), 1440 x 1080/60i (LP) XAVC S Proxy: 1280 x 720/60p, 30p, 24p, 640 x 360 60p, 30p, 24p [PAL] XAVC S 4K: 3840 x 2160/25p XAVC S HD: 1920 x 1080/100p, 50p, 25p AVCHD: 1920 x 1080/50i (FX, FH), 1440 x 1080/50i (LP) XAVC S Proxy: 1280x720/50p,25p, 640x360/50p,25p

Slow & Quick Motion (S&Q)

[NTST] Rec Format 4K: 30p, 24p/HD: 60p, 30p, 24p Frame Rate 4K: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps Frame Rate HD: 1fps, 2fps, 4fps, 8fps,15fps, 30fps, 60fps, 120fps [PAL] Rec Format 4K: 25p/HD: 50p, 25p Frame Rate 4K: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps/HD: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps

Super Slow Motion (SS)

[NTSC] Rec Format HD: 60p, 30p, 24p Frame Rate HD: 240fps, 480fps, 960fps [PAL] Rec Format HD: 50p, 25p Frame Rate HD: 250fps, 500fps, 1,000fps

Video Recording Rate (ABR / VBR)

XAVC S 4K: Approx. 100 Mbps, 60 Mbps , XAVC S HD: Approx. 100 Mbps (1,920 x 1,080/120p, 100p), 60 Mbps (1,920 x 1,080/120p, 100p), 50 Mbps, 25 Mbps, 16 Mbps/ AVCHD FX: Approx. 24 Mbps, FH: Approx. 17 Mbps, LP: Approx. 5 Mbps , XAVC S Proxy: Approx. 9 Mbps (1,280 x 720)/Approx. 3 Mbps (640 x 360)

Recording Format (Still Image)

JPEG (DCF Ver. 2.0, Exif Ver. 2.3, MPF Baseline-compliant)

Picture Profile

Yes (Off/PP1-PP10) Parameters: Black level, Gamma (Standard, Still, Cine1-4, ITU709, ITU709(800%), S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Colour Mode (Standard, Still, Cinema, Pro, ITU709 Matrix, B/W, S-Gamut, S-Gamut3.Cine, S-Gamut3), Saturation, Colour Phase, Colour Depth, Colour Correction, WB Shift, Detail, Copy, Reset

Proxy Recording


Still Image Size (Photo Mode)

12.0 megapixels 3:2 (4,240 x 2,824), 14.2 megapixels 16:9 (5,024 x 2,824)



Built-in Stereo Microphone

Audio Recording Format

Dolby Digital 2ch Stereo, Dolby Digital Stereo Creator , MPEG-4 AAC-LC 2ch , MPEG-4 Linear PCM 2ch (48 kHz/16 bit)

Mic Level Control

Yes (31 steps)

Auto Wind Noise Reduction


My Voice Cancelling



Monaural Speaker

Advanced Features

High Speed Rec


Scene Selection

Night Scene/Sunrise & Sunset/Fireworks/Landscape/Portrait/Spotlight/Beach

NightShot infrared System


Time Code/User Bit


Other Functions

Face Detection, Intelligent Auto(Portrait/Baby/Walk/Tripod/Backlight/Landscape/Spotlight/Twilight/Macro/Low light)

Play Back

Fast Playback

About 5 times/10 times/30 times/60 times

Slow Playback

Forward: 1/5 speed, Reverse: 1/2 speed

Trimming Playback


Motion Shot Video


Slide Show (Still Image)


Wireless Function


Yes (Wi-Fi Compatible, IEEE 802.11b/g/n (2.4 GHz band))


Yes (NFC forum Type 3 Tag compatible)

Terminal / Shoe

Accessory shoe

Yes (Multi Interface Shoe)

HDMI Terminal


Projector Input


Multi/Micro USB Terminal


Remote Terminal

Integrated into Multi/Micro USB Terminal /Stereo mini-mini jack (2.5mm)

STD Output

Composite Video Out(AV Cable(sold separately))

Microphone Input

Stereo mini jack

Headphone Jack

Stereo mini jack

Memory Card Slot

Slot A:Memory Stick PRO Duo and SD/SDHC/SDXC cards compatible, Slot B:SD/SDHC/SDXC cards compatible




Battery Type

InfoLITHIUM with AccuPower Meter System (V Series)

Power Consumption (LCD)


Power Consumption (Viewfinder)


Power Requirements

7.4V (battery pack), 8.4V (AC Adaptor)

Charge on Camcorder

Yes (Approx. 2h 50min) (charging time with supplied battery)

USB Charging


USB Power Supply


Size and Weight

Dimensions (WxHxD)

Main unit only (Approx.) : 116 x 89.5 x 196.5mm

Including supplied battery (Approx.): 116 x 89.5 x 196.5mm


Main unit only : 935g (including Lens Hood and Large Eyecup)

Including supplied battery : 1030g

* Specifications subject to change by the manufacturer without notice

  • Sony FDR-AX700 4KCamcorder
  • Lens hood
  • Lens Cap
  • Large Eyecup
  • Rechargeable Battery Pack (NP-FV70A)
  • AC Adaptor (AC-L200D)
  • Power Cord
  • Wireless Remote Commander (RMT-835)
  • Lithium Battery (CR2025) for Wireless Remote Commander
  • Operating Guide
