TYPE	Type			Digital mirrorless interchangeable lens system camera (ILC)
	Recording Media			SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards)
	Image Sensor Size			17.3 x 13.0 mm (in 4:3 aspect ratio)
	Lens Mount			Micro Four Thirds mount
IMAGE SENSOR	Type			Live MOS Sensor
	Total Pixels			16.68 Megapixels
	Camera Effective Pixels			16.0 Megapixels
	Color Filter			Primary color filter
	Dust Reduction System			Supersonic wave filter
RECORDING SYSTEM	Recording File Format				JPEG (DCF, Exif 2.3), RAW
					MPO (When attaching 3D lens in Micro Four Thirds System standard)
					AVCHD (Audio format: Dolby Digital 2ch) / MP4 (Audio format AAC 2ch)
	Aspect Ratio			4:3, 3:2, 16:9, 1:1
	Image Quality			RAW, RAW+Fine, RAW+Standard, Fine, Standard
				MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard)
	Color Space			sRGB, Adobe RGB
	File Size (Pixels)	Still Image		[4:3] 4,592 x 3,448 (L) [16M], 3,232 x 2,424 (M) [8M], 2,272 x 1,704 (S) [4M], 1,824 x 1,368 (When attaching 3D lens in Micro Four Thirds System standard)
				[3:2] 4,576 x 3,056 (L) [14M], 3,232 x 2,160 (M) [7M], 2,272 x 1,520 (S) [3.5M], 1,824 x 1,216 (When attaching 3D lens in Micro Four Thirds System standard)
				[16:9] 4,576 x 2,576 (L) [11.5M], 3,232 x 1,824(M) [6M], 1,920 x 1,080 (S) [2M], 1,824 x 1,024 (When attaching 3D lens in Micro Four Thirds System standard)
				[1:1] 3,424 x 3,424 (L) [11.5M], 2,416 x 2,416 (M) [6M], 1,712 x 1,712 (S) [3M], 1,712 x 1,712 (When attaching 3D lens in Micro Four Thirds System standard)
		Motion Image	MP4	[Full HD] 1,920 x 1,080, 25fps (sensor output is 25p) (Approx. 20Mbps)
				[HD] 1,280 x 720, 25fps (sensor output is 25p) (Approx. 10Mbps)
				[VGA] 640 x 480, 25fps (sensor output is 25p) (Approx. 4Mbps)
			AVCHD	[Full HD] 1,920 x 1,080, 50i (sensor output is 25p) (FSH: 17 Mbps)
				[HD] 1,280 x 720, 50p (sensor output is 25p) (SH: 17 Mbps)
	Continuous Recordable Time (Motion Image)*			AVCHD with picture quality set to [FSH]: Approx. 130 min with H-FS014042 / Approx. 140 min with H-PS14042 / Approx. 150 min with H-H014
	Actual Recordable Time			AVCHD with picture quality set to [FSH]: Approx. 65 min with H-FS014042 / Approx. 70 min with H-PS14042 / Approx. 75 min with H-H014
	(Motion Image)*
FOCUS	Type			Contrast AF system
	Focus Mode			AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
	AF Mode			Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint
				Touch (1-area-focusing in Face detection / AF Tracking / Multi-area-focusing / 1-area-focusing / Pinpoint)
	AF Detective Range			EV 0 - 18 (ISO100 equivalent)
	AF Assist Lamp			YES
	AF Lock			Set the Fn button in custom menu to AF/AE lock or shutter button halfway pressed in AFS mode
	Others			Quick AF, Continuous AF (during motion image recording), AF+MF, Touch shutter, Touch MF Assist
EXPOSURE CONTROL	Light Metering System			144-zone multi-pattern sensing system
	Light Metering Mode			Intelligent Multiple / Center Weighted / Spot
	Metering Range			EV 0 - 18 (F2.0 lens, ISO100 equivalent)
	Exposure Mode			Program AE / Aperture Priority AE / Shutter Priority AE / Manual / Auto
	ISO Sensitivity			Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
	(Standard Output Sensitivity)
	Exposure Compensation			1/3 EV Step, ±5 EV
	AE Lock			Set the Fn button in custom menu to AF/AE lock
	AE Bracket			3, 5, 7 frames, in 1/3, 2/3 or 1 EV Step, ±3 EV
WHITE BALANCE	White Balance			Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Color temperature setting
	White Balance Adjustment			Blue/amber bias, Magenta/green bias
	Color Temperature Setting			2,500 K - 10,000 K in 100 K
	White Balance Bracket			3 exposures in blue/amber axis or in magenta/green axis
SHUTTER	Type			Focal-plane shutter
	Shutter Speed			Still Images: 1/4,000 - 60 and Bulb (up to approx. 120 seconds)
				Motion Image: 1/16,000 - 1/30 (NTSC), 1/16,000 - 1/25 (PAL)
	Self Timer			10 sec, 3 images / 2 sec / 10 sec
	Remote Control			Remote control with bulb function by DMW-RSL1 (Optional)
SCENE MODE	Still Image SCN Mode			Portrait / Soft Skin / Scenery / Architecture / Sports / Peripheral Defocus / Flower / Food / Objects / Night Portrait / Night Scenery / Illuminations / Baby 1, 2 / Pet / Party / Sunset
	Video SCN Mode			Portrait / Soft Skin / Scenery / Architecture / Sports / Flower / Food / Objects / Low-light / Party / Sunset
				(Activated by selecting Still Image SCN mode then pressing Video Button. Still Image SCN modes without corresponding Video SCN mode is recorded in mode suitable for the recording situation.)
CREATIVE CONTROL	Creative Control			(Still image & Motion image) Expressive / Retro / High Key / Low Key / Sepia / High Dynamic / Toy Effect / Miniature Effect
BURST SHOOTING	Burst Speed			SH: 20 frames/sec, H: 4.2 frames/sec (When AFS mode), M: 3 frames/sec (with Live View), L: 2 frames/sec (with Live View)
	Number of Recordable Images			9 images (when there are RAW files with the particular speed)
				Unlimited consecutive shooting (when there are no RAW files)
				(depending on memory card size, battery power, picture size, and compression)
BUILT-IN-FLASH	Type			TTL Built-in-Flash, GN7.6 equivalent (ISO160 · m), Built-in Pop-up
	Flash Mode			Auto, Auto / Red-eye Reduction, Forced On, Forced On / Red-eye Reduction, Slow Sync., Slow Sync. / Red-eye Reduction, Forced Off
	Synchronization Speed			Less than 1/160 second
	Flash Output Adjustment			1/3 EV Step, ± 2 EV
	Flash Synchronization			1st Curtain Sync., 2nd Curtain Sync.
	Hot Shoe			TTL Auto with FL220 / FL360 / FL500 (Optional)
LCD MONITOR	Type			TFT LCD with Touch panel
	Monitor Size			3.0 inch (7.5 cm) / 3:2 Aspect / Wide-viewing angle
	Pixels			460,000 dots
	Field of View			Approx. 100%
	Monitor Adjustment			Brightness (7 levels), Contrast and Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels)
	Live View Functions			Guide Lines (3 patterns)
				Real-time Histogram
ZOOM	Additional Zoom Operation			Touch Zoom (when use power zoom lenses*)
				*H-PS14042 lens and H-PS45175 lens
	Digital Zoom			2x, 4x
EXTRA TELE CONVERSION				Still image: Max. 2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.)
				Motion image: Max. 4.8x (Magnification ratio depends on the recording quality and aspect ratio.)
LEVEL GAUGE				Yes (Built-in 3 shaft accelerometer sensor)
DIRECTION DETECTION FUNCTION				Yes
FUNCTION BUTTON	Fn1, Fn2, Fn3*, Fn4*			One Push AE / Preview / Level Gauge / Focus Area Set / Photo Style / Aspect Ratio / Picture Size / Quality / Metering Mode / Flash / Flash Adjust. / I. Resolution / I. Dynamic / EX. Tele Conv. / Digital Zoom / Stabilizer / Sensitivity / White Balance / AF Mode / Drive Mode / Motion Pic. Set / Picture Mode / Histogram / Guide Line / Rec Area
	*Fn3 and Fn4 are Touch icons on LCD monitor.
CUSTOM MENU	C1, C2-1/2/3			Yes (Registering personal menu settings)
PLAYBACK	Playback Mode			Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (duration & effect is selectable), Playback Mode (Normal / Picture / Video / 3D Play / Category / Favorite), Title Edit, Text Stamp, Video Divide, Resize, Cropping, Aspect Conversion, Rotate, Rotate Display, Favorite, Print Set, Protect, Face Recognition Edit
IMAGE PROTECTION / ERASE	Protection			Single / Multi, Single in Burst Group / Multi in Burst Group, Cancel
	Erase			Single / Multi / All / Except Favorite
PRINT	Direct Print			PictBridge compatible (Print size, Layout and Date settings are selectable)
INTERFACE	USB			USB 2.0 High Speed
	HDMI			mini HDMI TypeC
				Video: Auto / 1080i / 720p / 480p (576p in PAL system)
				Audio: Linear PCM
	Audio Video Output			Monaural Type, NTSC / PAL, NTSC only for North America
				*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
	Remote			Remote socket
	Microphone			Stereo, Wind-cut: Off / Auto
				Microphone level adjustable: Lv1 / Lv2 / Lv3 / Lv4
	Speaker			Monaural
LANGUAGE	OSD Language			English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Russian, Chinese (Traditional), Chinese (Simplified), Dutch, Thai, Korean, Turkish, Portuguese, Arabic, Persian, Japanese, Swedish, Danish, Finnish, Greek, Vietnamese
				*Check the website of the Panasonic sales company in your country or region for details on the OSD languages on the products that are available in your market.
POWER	Battery			Li-ion Battery Pack (7.2V, 1,010mAh) (Included)
				Battery Charger
	Battery Life (CIPA Standard**)			Approx. 300 images with H-FS014042
				Approx. 310 images with H-PS14042
				Approx. 340 images with H-H014
DIMENSIONS / WEIGHT	Dimensions (W x H x D)			116.3 x 67.8 x 39.4 mm / 4.58 x 2.67 x 1.55 inch (excluding protrusions)
	Weight			Approx. 318g / 11.22 oz (SD card, Battery, Body)
				Approx. 272g / 9.59 oz (Body only)
				Approx. 373g / 13.16 oz (SD card, Battery, H-H014 lens included)
				Approx. 413g / 14.59 oz (SD card, Battery, H-PS14042 lens included)
				Approx. 483g / 17.04 oz (SD card, Battery, H-FS014042 lens included)
OPERATING ENVIRONMENT	Operating Temperature			0 °C to 40 °C (32 °F to 104 °F)
	Operating Humidity			10%RH to 80%RH
STANDARD ACCESSORIES	Software			PHOTOfunSTUDIO 7.0 HD Edition,
				SILKYPIX® Developer Studio 3.1 SE,
				LoiLoScope (trial version),
				USB Driver
	Standard Accessories			Battery Charger, Body Cap, USB Connection Cable, Shoulder Strap, CD-ROM

- These are standard times taken at a temperature of 23 °C (73.4 °F) and a humidity of 50%RH.
- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.

• Continuous recording exceeding 4GB or 29 minutes 59 seconds is not possible when recording MP4. Remaining time for continuous recording is displayed on the screen.
• Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures
* SD Speed Class is the speed standard regarding continuous writing.


**Recording conditions by CIPA standard
- CIPA is an abbreviation of [Camera & Imaging Products Association].
- Temperature: 23 °C (73.4 °F) / Humidity: 50%RH when LCD monitor is on.
- Using a Panasonic SD Memory Card (32 MB).
- Using the supplied battery.
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
- Recording once every 30 seconds with full flash every second recording.
- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
- Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases.
- The number of recordable pictures decreases in Auto Power LCD Mode and Power LCD Mode.

* Specifications subject to change by the manufacturer without notice

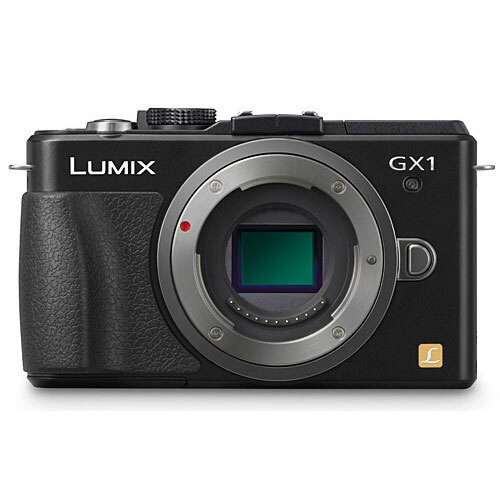

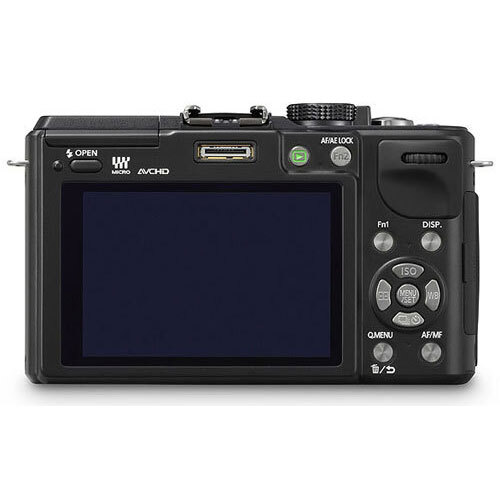

Panasonic Lumix DMC-GX1 Digital Camera – Body
Battery Charger
Body Cap
USB Cable
Shoulder Strap
Instruction Manual
Software Suite CD-ROM - PHOTOfunSTUDIO 7.0 HD Edition, SILKYPIX® Developer Studio 3.1 SE, LoiLoScope (trial version), USB Driver
