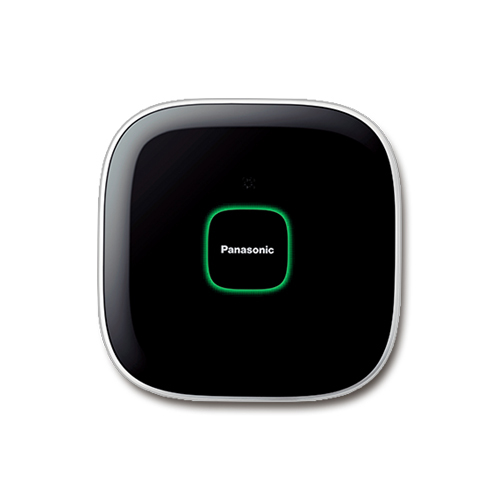

The Panasonic Connected Home Hub forms the base station for the Panasonic Home Network System. The central processing unit for all your Panasonic Home Monitoring handsets, cameras, sensors, sirens and more, the hub is the key component required in the Home Monitoring ecosystem.

DECT Wireless Technology

The DECT (Digital Enhanced Cordless Telecommunication) technology operates at 1.9Ghz to deliver a long range of up to 300m (line of sight). Its impressive range allows you to integrate a broad range of cameras, sensors and other Home Monitoring devices throughout your home for maximum security and peace of mind.

Easy Installation

The Connected Home Hub can be setup up easily through your smart phone or tablet eliminating complicated computer hardware and messy cables. Once set up, adding additional sensors and telephone handsets can be connected by a simple push button pairing method.

Versatile Monitoring Methods

The different sensors compatible with the Connected Home Hub allow you to set custom alerts and improve the quality of surveillance. Wide variety of optional accessories including alarms, motion sensors, window sensors, sound sensors and smart plugs can be chosen from the Panasonic Home Network system for thorough monitoring from a remote location.

Instant Voice and Text Alerts

The Panasonic system supports up to 8 different phones including home phone and mobile on which pre-programmed alerts (voice or text) can be sent instantly, enabling you to initiate a suitable action.

MicroSD Card Support

The Panasonic Connected Home Hub features a microSD card slot that supports a memory card of up to 32GB capacity. The footage from the paired cameras and other sensors is recorded when movement or a sensor is triggered, ensuring peace of mind for your family and your property.

Hub - General


W (White)

Frequency range

DECT: 1.88 GHz - 1.90 GHz

Frequency range

Wi-Fi: 2.412 GHz – 2.472 GHz

Wireless Network Standard

Wi-Fi: IEEE 802.11 b / g / n


WPA2-PSK (TKIP / AES), WPA-PSK (TKIP / AES), WEP (128 / 64 bit)

SD Card Slot for Recording Video

Y (microSD Max2GB / microSDHC Max32GB)

Status Indication

LED (Red / Yellow / Green)

Alert Tone Volume

6 step + OFF

Wall Mountable


Operating Conditions


Operating Conditions

20%–80% relative air humidity (dry)

Easy Setup

One Push Pairing Button (Handset, Camera, Other Device)

Wi-Fi Setup Button


Digital Cordless Handset (KX-HNH100); Up to 6

Camera (KX-HNC600 / HNC200); Up to 4

Sensor / Smart Plug (KX-HNS101 / HNS102 / HNA101); Up to 50

Smartphone / Tablet; Up to 8

Phone Feature

Landline Telephone Function

Smartphone Connect

Answering System

Call Block

Camera Feature (Indoor Camera)

Recording Time; Up to 15min

Camera Feature (Outdoor Camera)

Recording Time; Up to 15min

Sensor Detect Notification (Window Sensor / Motion Sensor / Motion Sensor in Camera)

Via Landline Call

Via Home Network System Application

HUB Buzzer

Digital Cordless Handset

Power Consumption

Standby Power Consumption; Approx. 4.0 W

Dimensions/ Weight

Dimensions (W x D x H); Approx. 130mm x 130mm x 42mm

Weight; Approx. 220g

Application - General

Smart Control


Device Error Notification


Alert Volume


* Specifications subject to change by the manufacturer without notice

  • 1 Home Monitoring System Hub Unit KX-HNB600
  • Power and connection cables
