Panasonic AW-UN70KEJ 4K Professional PTZ Camera - White
SKU code: 46643
Australian Owned, Online Since 2001
Local Contact Centre
Industry Experts, Knowledgeable Team
Australia Wide Delivery
From Beginner to Pro, Affordable Gear
Secure Payment Methods
Key Features:
- 4K video via HDMI, USB & LAN
- HD video via 3G-SDI
- 20x optical zoom
- iA zoom
- 1/2.3-type MOS sensor
- High Dynamic Range functionality
- Supports PoE+
You May Also Like
The Essentials:

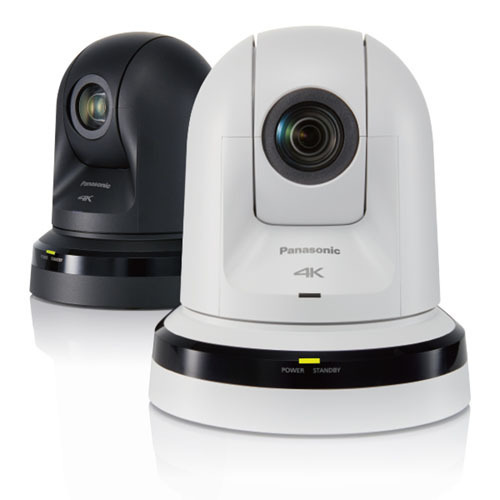

The Panasonic AW-UN70 White is an integrated remote camera with a wonderful zoom, pan and tilt and a superb 4K resolution.
Expanded Options for Broadcast
The AW UN70 can record in camera footage at 4K as well as stream 4K over IP - perfect for remote video applications such as live events, live screen signage, video conferencing and other remote video production. It's expansive feature set makes it a great choice for professional broadcasts and streams. With Power over Ethernet (PoE+) just one ethernet cable is needed to supply power, for control and to stream audio and video. This simplifies the setup and will lower overall installation costs. Both the 4K and Full HD stream can be set to work with different bit-rates up to 50Mbps with up to four channels of IP streaming in HD (H.264 encoding). Audio can be captured via a mic or line input with an equaliser function and audio embedding to IP, HDMI, SDI, USB and microSD recording.
Control via IP
IP Control allows for image monitoring with PC, Mac and mobile terminals with the ability to control up to 100 cameras via IP from a single controller. Through the remote access you can start and stop recording, download clips and even control FTP transfer - all over IP. The unit is equipped with RS422 and RS232C (in/out) remote remote terminals. Camera control is even possible with an iPad with the optional Control Assist Camera AW-HEA10. As well as remote capture/streaming, the UN70 takes a microSD card for video and audio recording in camera and with support for USB Video/Audio Class, the camera can even be used as a webcam with high-quality output.
4K & HD
Designed with the current and future requirements of the streaming industry in mind this camera utilises a range of outputs including USB, HDMI & Local Area Network. As well as an ultra-high resolution of the 4K footage, this camera is adaptable and supports High Definition at 1080/50p with 3G-SDI output.
Expanded Capabilities
The unit is driven by impressive internal technology with a 1/2.3-type MOS sensor, 20x optical zoom with an extendable iA Zoom that will go out to 22x in 4K and 30x in HD. The optical image stabalisation (OIS) will compensate for vibration from things like audio speakers and closing doors. The output quality is top of its class with HDR (High Dynamic Range) for varying light conditions such as backlighting. An ND filter with various options (Auto, Thru, 1/4, 1/16, 1/64) will reduce light while a Night Mode makes shooting possible under IR light (automatic switching supported). Paired with the 4K (3840 x 2160 25p) and HD resolutions the professional light control will make for a amazing footage. Both BB and Tri-level external synchronisation inputs are supported.
If you are looking for a high-end broadcast and streaming camera the Panasonic AW-UN70KEJ 4K Professional PTZ Camera White - AW-UE70 is an excellent choice that expands the applications and capabilities of integrated remote camera systems.
* MicroSD card is sold separately *An iPad is required (sold separately). The "PTZ Cntrl" app for iPad (free download from the App Store) is required.
Power Requirements | DC 12 V (Supplied AC adaptor) |
DC 42 V to 57 V (PoE+ power supply) | |
Current Consumption | 1.3 A (Supplied AC adaptor) |
0.5 A (PoE+ power supply) | |
Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
Allowable Humidity Ranges | 20 % to 90 % (no condensation) |
Mass | Approx. 1.5 kg (3.30 lb) |
Dimensions (W x H x D) | 160 mm x 186 mm x 179 mm |
(6-5/16 inches x 7-41/128 inches x 7-3/64 inches) [excluding protrusions, direct ceiling mount bracket] | |

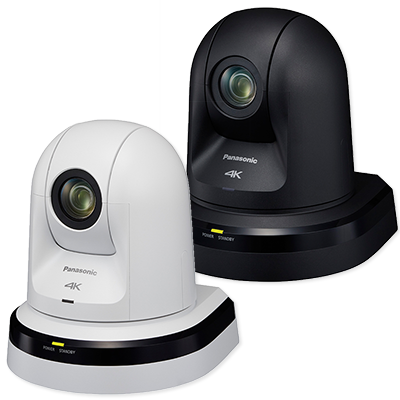

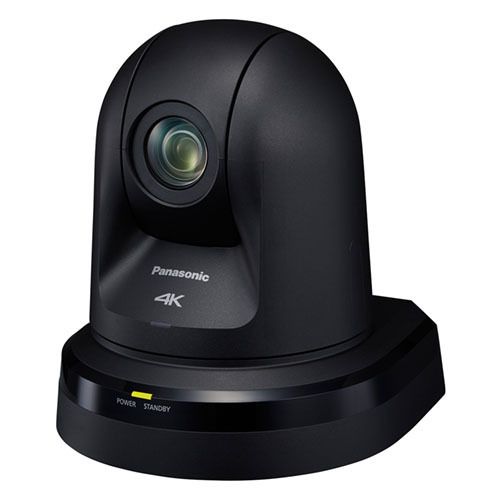

Finish | [AW-UE70W] Pearl white [AW-UE70K ] Metallic black |
Controller Supported* | AW-RP50, AW-RP120G, AK-HRP200G |
Imaging Sensors | 1/2.3-type MOS |
Lens | Motorized 20x zoom, F1.8 to F3.6 |
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches)equivalent: 29.5 mm (1-5/32 inches) to 612.0 mm (24-3/32 inches)] | |
Focus | Switching between auto and manual |
Focus Distance | Entire zooming range:1.5 m (4.92 ft) Wide end: 10 cm (0.33 ft) |
Color Separation Optical System | On-chip color filter system |
Minimum Illumination | 59.94 Hz: |
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation) | |
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation [Frame Mix 6 dB]) Pv6: | |
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), | |
MultiCast/UniCast | |
Horizontal Resolution | 4K : 1300 TV lines Typ (Center area) HD: 1000 TV lines Typ (Center area) |
Gain Selection | Auto, 0 dB to 48 dB (3 dB step) |
Frame Mix*3 | Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
ND Filter | Auto 4, Through, 1/4, 4/16, 1/64 |
Electronic Shutter Speed | During Full Auto: |
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz] | |
During Auto: | |
1/60 to 1/2000 [59.94 Hz] | |
1/50 to 1/2000 [50 Hz] | |
During Manua: | |
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz] | |
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] | |
Synchro Scan | 59.94 Hz: |
59.94 Hz to 660.09 Hz (255 step) | |
Gamma | Off, Normal (Low, Mid, High), Cinema |
White Balance | ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
Scene File | Full Auto, Manual1, Manual2, Manual3 |
Synchronization System | Internal synchronization/External synchronization (BBS, Tri-level sync) |
Image Stabilization | Optical (FHD, 4K)/4-axis hybrid image stabilizer (FHD) for stable |
Power | DC 12 V IN, PoE+ (IEEE802.3at standard) |
MIC/Line Input | Stereo mini-jack (?3.5 mm) Input impedance: Approx. 2 k |
G/L In | Compatible with BBS (Black Burst Sync) signals and ternary synchronizing signals (BNC x 1) |
Video Output | HDMI connector |
HDCP is not supported. | |
VIERA Link is not supported. 3G/HD SDI OUT: | |
Compliant with the SMPTE424/SMPTE292M standards/75 | |
Input/Output Connector | LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function |
RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) RS-422: CONTROL IN RS422A (RJ-45) | |
USB: Mini-B port | |
SD Card: microSD card slot | |
Video Output (USB) | USB Video Class Ver1.0 |
Video Compression Format | Motion JPEG |
Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
Frame Rate | max 30 fps (59.94 Hz) |
max 25 fps (50 Hz) | |
Audio Output | USB Audio Class Ver1.0 |
Audio Compression Format | Linear PCM, 48 kHz, 16-bit, 2 channels |
Transfer Modes (JPEG) | 3840 x 2160 |
59.94 Hz: 5fps, 50 Hz: 5fps | |
Supported Models | Devices standardly equipped with a USB 2.0 compatible port |
Installation Method | Stand-alone (Desktop) or suspended (Hanging) 5 |
Pan/Tilt Operation Speed | Maximum speed during preset: 300 |
Tilting Range*5 | –30° to 90°*6 |
Quietness | During preset: NC40 or less During manual: NC35 or less |
IP Connecting Cable | • When connecting through a PoE+ hub: |
LAN cable*7 (category 5e or above), max. 100 m (328 ft) | |
• When a PoE+ hub is not used: | |
LAN cable*7 (category 5 or above) max.100 m (328 ft) | |
AW Protocol Connecting Cable | LAN cable (category 5 or above,straight cable), max. 1000 m (3280 ft) |
Standard Protocol Connecting Cable | Mini DIN 8-pin cable, male |
SD Card Recording | MPEG-4 AVC file standard compliant (.MP4) |
Video Compression Format (SD) | MPEG-4 AVC/H.264 High Profile |
Audio Compression Format (SD) | AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
Recording Format/Bit Rate | 59.94 Hz: |
3840 x 2160/29.97p (Up to 72 Mbps), | |
1920 x 1080/59.94p (Up to 28 Mbps), 1920 x 1080/29.97p (Average 15 | |
Mbps/Average 10 Mbps/Average 6 Mbps), | |
1280 x 720/59.94p (Average 15 Mbps), | |
1280 x 720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps) | |
Transfer Modes | JPEG: |
1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (30fps/15fps/5fps)*8, 50 | |
Hz (25fps/12.5fps/5fps)*8 H.264: | |
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz | |
(60fps*9/30fps/15fps/5fps)*8, 50 Hz (50fps*9/25fps/12.5fps/5fps)*8 | |
Supported Protocol | Pv4: |
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), | |
MultiCast/UniCast | |
iOS, Android Support | JPEG image display |
Standard Accessories | Mount bracket for installation surface (Hanging*10 / Desktop): 1, Drop-prevention wire (already attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1, Power cable (1.5 m [4.92 ft]): 1, AC adaptor: 1, CD-ROM: 1 |
Note
*1: It may be necessary to upgrade the version of the controller so that the controller will support the unit.
*2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting.
* Specifications subject to change by the manufacturer without notice
