Perfect for Macro Photography

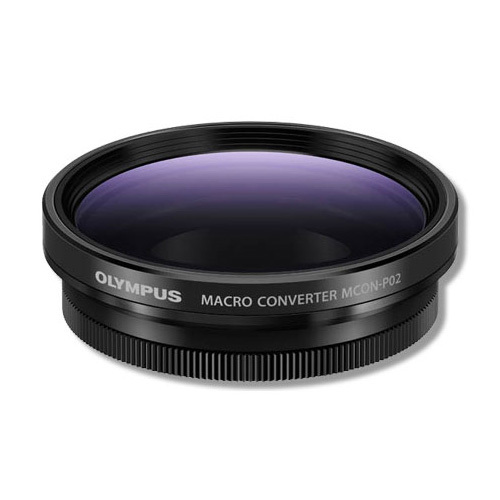

The Olympus Macro Conversion Lens MCON-P02 attaches to the front of M.Zuiko lenses to achieve closer minimum focus distances for better close-up shots. Take macro photos of flowers, food and nature with this convenient macro converter.

Retains High Image Quality

Featuring two glass elements, the conversion lens is designed to retain a high image quality even at close magnified distances.

Achieve Macro Capabilities with Existing Lenses

The convertor is natively compatible with 46mm filter ring threads, but includes a step-up ring for use with lenses that have a 37mm diameter.

The adapter is compatible with the following Olympus lenses:

• M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ Lens
• M.Zuiko Digital ED 14-42 f/3.5-5.6 II R Lens
• M.Zuiko Digital ED 45mm f/1.8 Lens
• M.Zuiko Digital 25mm f/1.8 Lens
• M.Zuiko Digital 17mm f/1.8 Lens
• M.Zuiko Digital ED 12mm f/2.0 Lens
Master lens M.Zuiko Digital ED 12mm F2.0
M.Zuiko Digital 17mm F1.8
M.Zuiko Digital 25mm F1.8
M.Zuiko Digital 45mm F1.8*1
M.Zuiko Digital ED 14-42mm F3.5-5.6 EZ*1
M.Zuiko Digital 14-42mm F3.5-5.6 II*1
M.Zuiko Digital 14-42mm F3.5-5.6 II R*1
Lens construction 1 group, 2 elements
Attaching method Screw
Size: maximum diameter x length Ø53 x 15.1mm*2
Weight 52g*2
Box contents LC-53 Lens Cap, LR-4 Rear Lens Cap, SUR-3746 Step-up Ring, Instruction Manual
• 1: The included step-up ring is required.
• 2: Comes with a step-up ring.

When attached to a M.Zuiko Digital 14-42 mm F3.5-5.6 II, M.Zuiko Digital 14-42 mm F3.5-5.6 II R (focal length 42mm).
Closest focusing distance 0.22m
Maximum image magnification 0.38x (35mm equivalent maximum image magnification: 0.76x)
Shooting range 0.22 to 0.36m


When attached to a M.Zuiko Digital 45mm F1.8

Closest focusing distance 0.24m
Maximum image magnification 0.30x (35mm equivalent maximum image magnification: 0.60x)
Shooting range 0.24 to 0.33m


When attached to a M.Zuiko Digital ED 12mm F2.0

Closest focusing distance 0.16m
Maximum image magnification 0.13x (35mm equivalent maximum image magnification: 0.26x)
Shooting range 0.16 to 0.32m


When attached to a M.Zuiko Digital 17mm F1.8

Closest focusing distance 0.17m
Maximum image magnification 0.15x (35mm equivalent maximum image magnification: 0.30x)
Shooting range 0.17 to 0.32m


When attached to a M.Zuiko Digital 25mm F1.8

Closest focusing distance 0.17m
Maximum image magnification 0.22x (35mm equivalent maximum image magnification: 0.44x)
Shooting range 0.17 to 0.32m


When attached to a M.Zuiko Digital ED 14-42mm F3.5-5.6 EZ (focal length 42mm).

Closest focusing distance 0.18m
Maximum image magnification 0.38x (35mm equivalent maximum image magnification: 0.76x)
Shooting range 0.18 to 0.33m

* Specifications subject to change by the manufacturer without notice
  • Olympus MCON-P02 Macro Conversion Lens
  • Step-up Ring 37mm-46mm
  • Front and Rear Lens Cap
