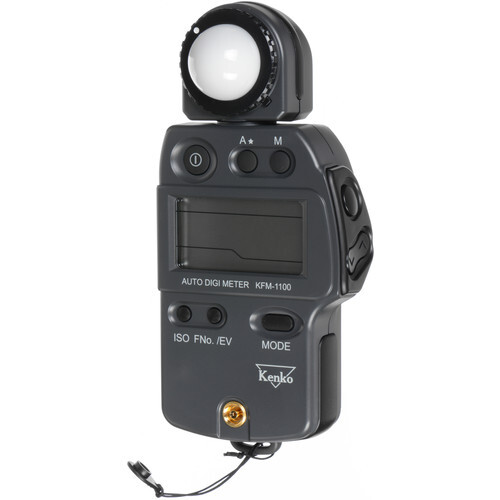

For most people the minimal, clearly marked buttons will make using the Kenko KFM-1100 second nature in very little time. The side of the meter only has 3 buttons; the largest is for taking measurements, the other two set on a rocker are UP/DOWN input buttons for changing F no., shutter speed or ASA/ISO. This simple, easy-to-use ergonomic design feels comfortable in your hand and its logical control layout will please photographers who want to concentrate on the subject; not their equipment.

Large, easy to read LCD_displays measurements in F no. format with large numbers in 1/10 stop increments and in more common 1/2 stop increments in a pointer scale across the top of the LCD display.

The meter is sensitive enough for ambient (existing) light to be measured for a shutter speed range from 30 minutes to 1/8000 of a second. In Cine mode it can be used to read frame-rates of 8 to 128 frames/sec.

For measuring flash, the meter has modes to either trigger the flash using a sync-cord or set to non-sync cord for manual flash triggering. The aperture range that can be displayed is from f/1.0 to f/128.

Useful in mixed flash/ambient lighting situations, the “Analyze” function can determine the ratio of ambient to flash light in a scene. This feature is very handy in scenes where a flash is being used to “open up” a shadowed area left by ambient (natural) light.

The meter’s “Calculation” function can be used to average measurements that have been stored in memory, very useful in reflected light measurements to capture highlight or shadow detail more accurately. The KFM-1100 has two memory “slots” to store previous measurements that can be recalled for reference or for averaging. Just press the “M” button after each reading to store it in memory. If the memory has two readings stored, it will delete the oldest reading to store the current information.



Optional Accessories (sold separately)




Flat Diffuser



This diffuser is used to measure the lighting ratio between main and auxiliary light sources to determine illuminance values, and to take exposure readings for flat surfaces such as paintings.




Reflected-Light Attachment II




The reflected-light attachment has 40° angle of acceptance, which corresponds to the angle of view seen with a 50mm lens on a 35mm SLR camera.


Type: Hand-held Exposure meter for incident and flash light
Reception Method: Incident-light readings
Receptors: Incident- Spherical diffuser, 270&Mac251; Rotating receptor head
Receptor Elements: Silicon photocell
Measuring Modes: AMBI- Ambient light,
CORD- Flash w/sync cord
NON-CORD- Flash without sync cord
Measuring Range: Ambient light- EV +/- 2.0 to 19.9, Flash- Incident light reading
+/- 0.1 stop
Flash for incident light: F No. 1.0 to 128 + 0.9 Stop
For 40° Reflected light: F No. 1.0 to 90 + 0.9 stop
For 5° Spot Viewfinder: F No. 1.0 to 90 + 0.9 stop
Repeatability: +/- 0.1 EV
Display Range: -
F Number: F No. 1.0 to 128 + 0.9 stops (0.1 stop incr.)
EV value: -17 to 40.8 (0.1 stop incr.)
Shutter speed: -
Ambient: 30 minutes to 1/8000 sec.
Flash 1 to 1/1000 sec.
Frame Rate: 8 to 128 frames/sec
ISO sensitivity: 3 to 8000
Exposure Difference: -10 to +10 (0.1 stop)
Analog Scale: F No. 1.0 to 90 (1/2 Stop)
Analyze Scale: Ratio between Flash and Ambient, 0 to 100% in 25% increments
Power: one AA_Alkaline dry-cell battery
Battery Life: Approx. 50 hours continuous reading in AMBI mode.
Operation Temperature range: 15 to 120° (-10 to + 50 C) with 85% relative humidity
Dimensions: 2.25 in (57mm) W x 6.2 in (157mm) H x 1.0 in. (26mm) D
Weight: 4.7 oz. (135g) w/o battery
Standard Accessories: Spherical diffuser, neck strap, case

* Specifications subject to change by the manufacturer without notice
