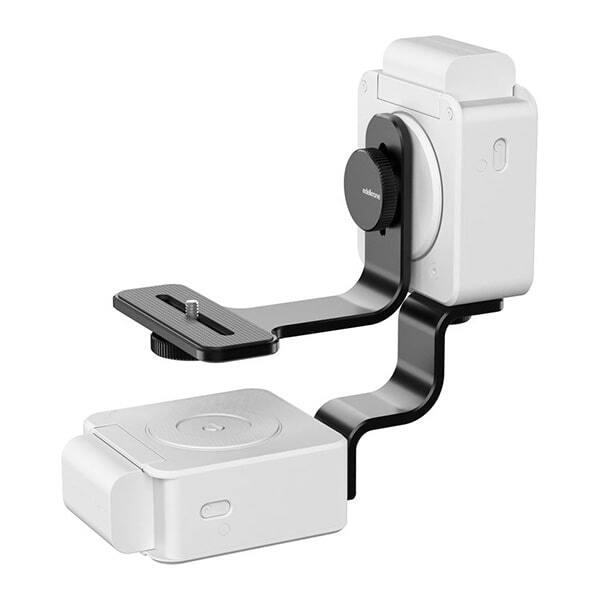

The Edelkrone Pan and Tilt Bundle include 2x HeadONE and Tilt Kit for HeadONE. It is designed to create smooth pans for epic panoramic videos, 360° photos and smooth movements. The edelkrone Tilt Kit for HeadONE allows you to combine two HeadONE units so you can take full advantage of their motion control functionality with control over the pan and tilt axis of your cinematic motion setup.

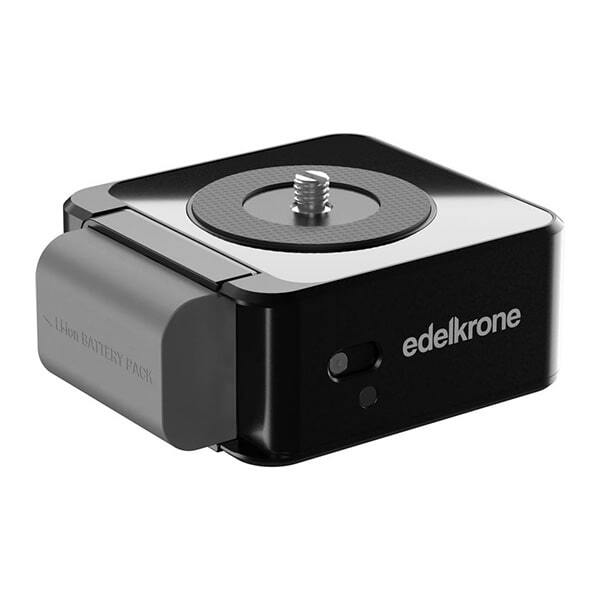

Super Compact Motion Control

Built to be taken anywhere, the HeadONE weighs less than 600g and can fit easily in a camera shoulder bag or backpack. The unit is powered by the ever-popular LP-E6-style batteries and has a 3/8-inch screw for a tripod head as well as the 3/8-inch port at the bottom to mount the unit to tripod legs. The HeadONE can also be used on a desktop or flat floor without requiring a stand.

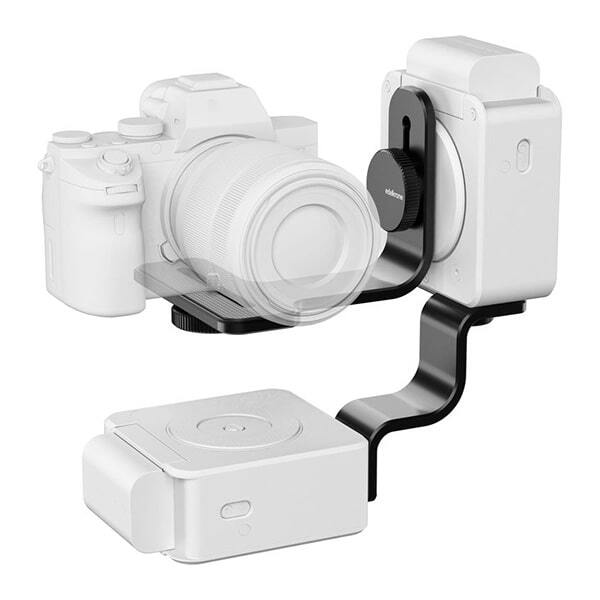

Single or Dual Head Setups

One device can be used to create a panning left-to-right motion or combined with an extra HeadONE unit with the tilt kit, so you can capture a combination of left-to-right pans as well as up-and-down tilting movements. Perfect for time-lapse and astrophotography, using two units can add eye-catching two-axis cinematic movement.

Smooth Video and Time-lapse Motion

Once you’ve set up your movement it is possible to switch between capturing live motion video or time-lapse, giving you the ability to capture a range of different footage that can be merged. One of the best features about motorised motion control is that it can allow you to re-create the same motion again and again, with precise accuracy.

One App to Control Them All

The star of the show is undeniably the edelkrone mobile app, a one-stop-shop for controlling every part of the edelkrone system. The interface is designed to be super simple and straight-forward while also providing you with a detailed level of control over your camera movements.

Step Motor for Silent Operation with Backlash-Free Gears

The HeadONE uses ultra-silent step motor technology that provides a fine level of control over your shot, combined with a backlash-free gear design that ensures that motions can be repeated accurately and consistently.

Supports edelkrone FlexTILT Head 2, StandONE & Product Turntable

The HEADONE is compatible with the range of edelkrone accessories like the FlexTILT Head 2 that provides additional camera positioning options, the StandONE, an all-terrain platform. It can also be combined with the edelkrone Product Turntable to capture 360° product images with a white matt or back glossy base plate.

Supports edelkrone SliderONE v2, Slider Module & DollyONE

The edelkrone Head One is also compatible with the SliderONE that can be used to add side-to-side motions, as well as the Slider Module with the SliderPLUS system. It can be also combined with the DollyONE and DollyPLUS systems for linear or curved movements on flat surfaces. This expandable modular product design provides a huge range of options for cinematographers and videographers to grow their kit as their needs change.

Robust Construction

The edelkrone tilt-kit for HeadONE is made like most of the edelkrone gear is, from precisely machined aluminium and stainless steel, ensuring it is robust and super sturdy. Even though it’s built tough though, the kit only weighs 500g, making it easy to add your camera bag.

HeadONE

Size (L x W x H)

99 x 95 x 47.5 mm

Weight

580 g

Recommended camera load Pan

6.8 kg

Mounting options

3/8"-16 mounting screw on top. 3/8"-16 mounting port on bottom. (3/8"-16 to 1/4"-20 reducer bushing for mounting port are provided.)

Min. step size

0.00061 degree

Max. speed

25.7 degree/sec

Number of axes

Single

Max. rotation

8 x 360°

Motor type

Step motor with ultra-high-res encoders.

Supported fps

All

Power input

Requires x1 Canon LP-E6 type battery to operate. Battery bracket included. Battery not included.

Battery life

With 14.4 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 3 hours (continuously at full speed)

Shoots 15000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Can be paired

SliderONE v2, Slide Module v2 / v3, DollyONE, DollyPLUS

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum & stainless-steel components.

Tilt Kit

Size

L Bracket (L x W x H) 117 x 94 x 105 mm

Tilt Piece

166 x 67 x 60 mm

Weight

500 g

Recommended camera load

3.1 kg or less

Mounting options

1/4" -20 mounting screw on L-Bracket.

Number of axes

2 (Pan & Tilt) (with second HeadONE)

Compatibility

HeadONE

Materials

CNC machined aluminum & stainless-steel components.


* Specifications subject to change by the manufacturer without notice

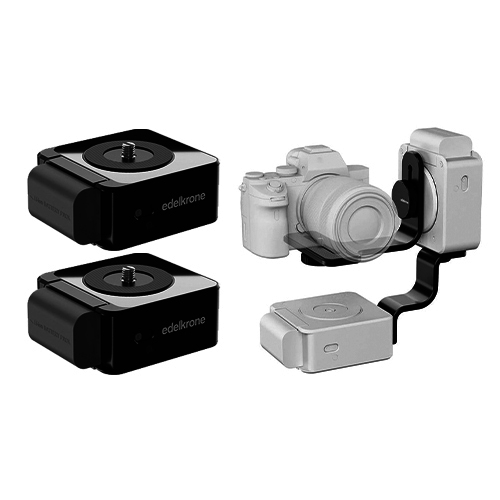

  • 2 x HeadONE
  • 1 x Tilt Kit
