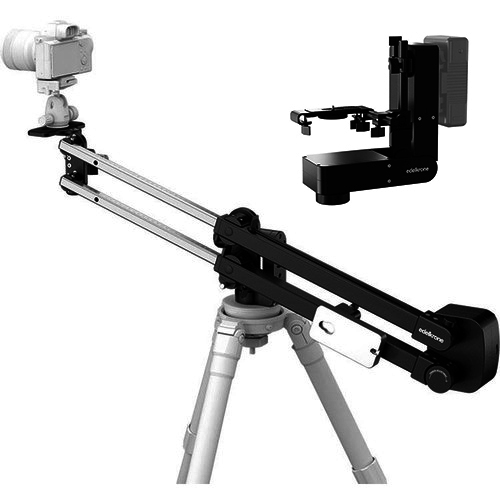

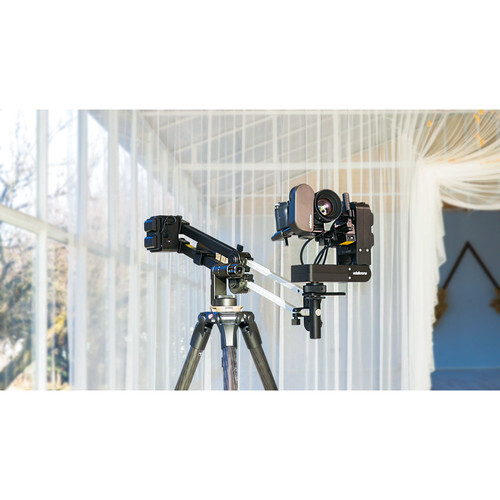

Edelkrone JibONE and HeadPLUS Pro is a motorised pan & tilt kit that can create camera movements to capture smooth, tilt, sweeping pan, and diagonal shots that are repeatable again and again with pinpoint accuracy.

Silent Motorised Pan and Tilt Movement

Using step motors and a backlash-free gear design, the system can perform ultra-smooth tilting and pan movements in complete silence, making it perfect for wedding shooters or on film sets when absolute silence is required. Adding a pan and tilt movement to your shot creates the parallax effect that dramatically increases the production value of your shot.

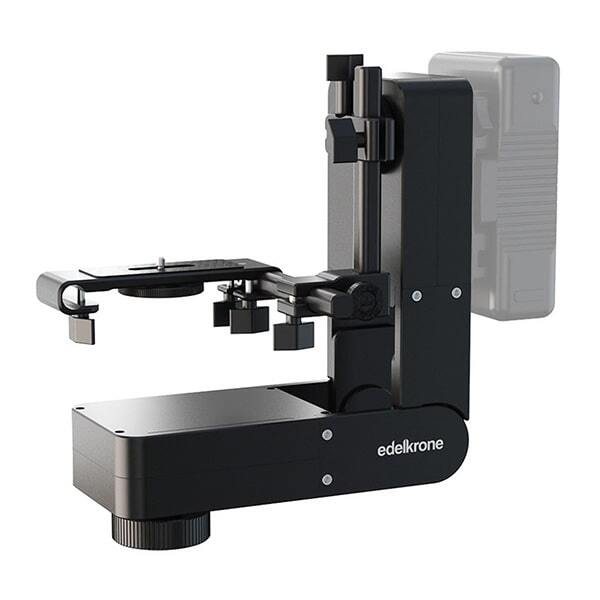

Auto Target Tracking with Real-time Switching

The HeadPLUS PRO can learn 3 different targets and can automatically track them even while moving on one of the edelkrone sliders or dollies. This creates slick looking camera movements that are great for product shots and dramatical storytelling. You can even use the edelkrone mobile app to switch in real-time between 3 preset targets for an ultra-smooth transition.

Perfect for Time-lapse Photography

Adding camera movement takes a time-lapse to the next level and it’s as simple as adding a shutter release cable and setting the parameters on the mobile app. The time warper function also allows you to change the speed of your time-lapse while keeping the speed of the motion constant essentially speeding up time in the shot without affecting the camera movement speed. You can also use a motion warper function to keep the speed of your time-lapse constant but change the speed of the camera motion.

Freedom of Movement

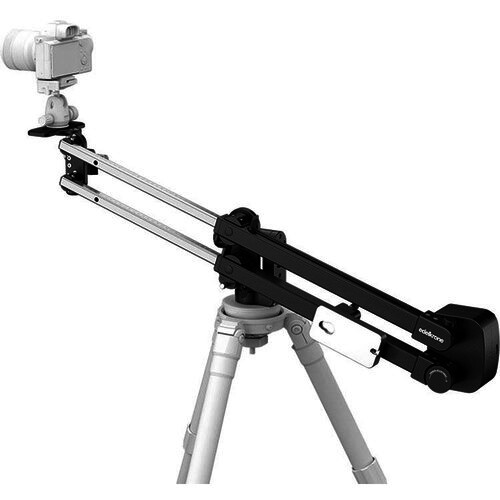

The Edelkrone JibONE delivers smooth, tilt, sweeping pan, and diagonal shots. It allows you to capture incline shots by mounting the JibONE vertically or set it horizontally to get slider-like shots. Besides, you are able to mix both axes to get diagonally shots at every 22.5 degrees (Pan and Tilt axes of JibONE are coupled). JibONE delivers 50 cm motion in any direction when fully extended and the motion can be looped for interview shots.

Maintains the Camera Angle

JibONE allows you to move horizontally, vertically or diagonally at any angle while maintaining a forward-facing camera. To capture motion shots, you can easily use a tripod head to set the tilt & pan angle of your camera.

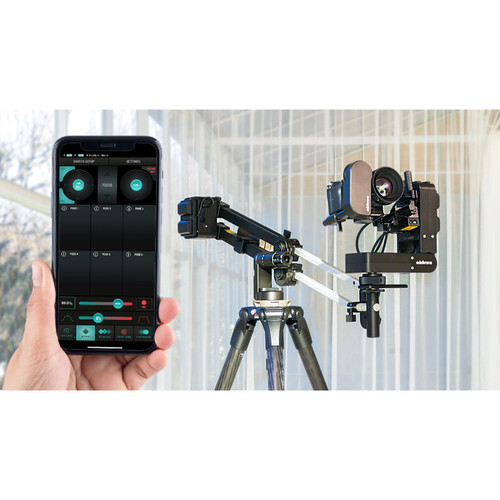

One App to Control Them All

The star of the show is undeniably the edelkrone mobile app that is a one-stop-shop for controlling every part of their system. The interface is designed to be super simple and straight-forward while also providing you with a detailed level of control over your camera movements.

JibONE

Min. size (Folded)

61 x 17 x 15cm

Weight

5.5 kg (with 1kg counterweight)

Mounting options

3/8"-16 mounting port on bottom, 3/8"-16 mounting screw on camera plate.

Recommended maximum setup load

5 kg or less (Camera + motorized head / tripod head)

Recommended minimum setup load

1.4 kg (Camera + motorized head / tripod head)

Camera travel (Full length)

50cm

Additional features

Safety lock , adjustable Jib lenght & angle

Min. cont. speed

50 cm in 140 sec

Max. cont. speed

50 cm in 8 sec

Supported fps

All

Motor type

Step motor with ultra high-res encoder.

Power inputs

x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets are sold separately.)

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)



Operates 2 hours (continuously at full speed)



Shoots 12000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (Shutter trigger cable is sold separately).

Can be paired

HeadONE (Both in single or dual modes), HeadPLUS

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

Counterweight

Box Contents

Counterweight

Size

115 x 55 x 19 mm

Weight

1kg

Mounting options

Easy attach & lock system

Compatibility

JibONE, Counterweight for JibONE

Materials

CNC machined aluminum and stainless steel components.

HeadPLUS PRO

Size

HeadPLUS PRO: (L x W x H) 432 x 103 x 78 mm L Bracket (folded) (L x W x H) 174 x 150 x 80 mm

Weight

HeadPLUS PRO: 3.62kg L Bracket: 450 gr

Recommended Camera Load

9kg

Mounting options

3/8"-16 mounting port on bottom. 1/4"-20 mounting screw on L bracket (also 3/8"-16 mounting screw is included for compatible cameras)

Min. step size

0.022 degree

Max. speed

360° in 20 sec

Number of axes

2 (Pan & Tilt)

Motor type

2 x ultra precise step motors with ultra high-res encoders.

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 4 hours (continuously at full speed)

Shoots 28800 photographs (in Time-Lapse mode)

1 Anton Bauer Digital 90 Gold Mount Battery is 93 Wh

1 Anton Bauer Digital 90 V-Mount Battery is 93 Wh

Power input

V-Mount type battery, Gold Mount type battery, AC/DC adapter (NOT included)

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Compatibility

Slide Module, Focus Module, Laser Module, SliderPLUS PRO, SliderONE PRO, DollyPLUS and previous generation SliderPLUS, SliderPLUS PRO.

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm


* Specifications subject to change by the manufacturer without notice
  • Edelkrone JibONE
  • 4 x Counterweight
  • Shutter Extension Cable
  • HeadPLUS PRO,
  • L Bracket for cameras up to 9 kg
  • Width extenders for SliderPLUS legs
  • Link cable, Allen keys
