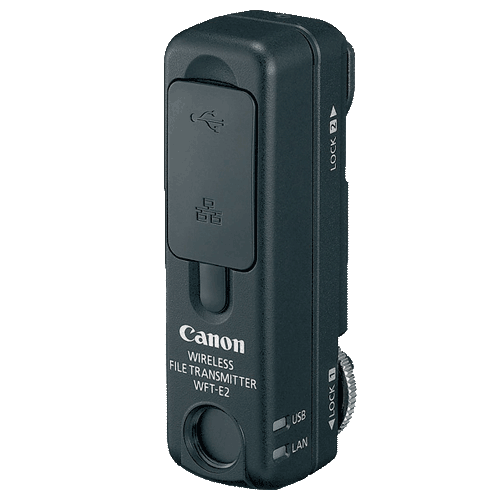

The new WFT-E2/E2A/E3/E3A/E4/E4A Wireless Transmitter allows you to connect to wireless and wired LANs, and supports FTP, PTP, and HTTP. Thanks to a connection wizard with broad compatibility, network access is sharply improved. The new WFT-E2/E2A/E3/E3A/E4/E4A is a premier work tool with expanded capability to link up with external storage media and GPS devices and others.

Type
Type Image transfer accessory compatible with IEEE 802.11b/g wireless LAN and Ethernet (wired LAN). Can be connected via USB to external media and GPS devices.
Network protocols FTP, PTP, and HTTP
Wireless LAN
Standards compliance ARIB STD-T66 (Low-Power Data Communication System/Wireless LAN System), IEEE 802.11b, and IEEE 802.11g
Transmission method DS-SS modulation (IEEE 802.11b) and OFDM modulation (IEEE 802.11g)
Transmission range Approx. 150 m / 492 ft.
• With no obstructions between the transmitting and receiving antennas and no radio interference
• With a large, high-performance antenna attached to the wireless LAN access point
Transmission frequency WFT-E2: 2412 - 2472 MHz (central frequency, 13 channels total)
WFT-E2A: 2412 - 2462 MHz (central frequency, 11 channels total)
Connection method Infrastructure or ad hoc (IEEE 802.11b/g)
Security Authentication method: Open, shared key, WPA-PSK, and WPA2-PSK
Encryption: WEP, TKIP, AES, and IPsec
Wired LAN
Standards compliance IEEE 802.3u (Ethernet 100 Base-TX)
USB Connection
Connectable Devices External media or GPS devices
Interfaces
Camera Extension system terminal
Wired LAN Ethernet RJ-45 port
External device USB 2.0 Hi-Speed port (for connecting external media and GPS devices)
Image Capture Capacity (Approx. number of images)
At Normal Temperature (23°C / 73°F): 1400
At Low Temperature (0°C / 32°F): 1100
• Using a fully charged LP-E4.
• Testing based on Camera & Imaging Products Association (CIPA) standards.
• The number of possible shots will be fewer when images are continuously transferred via wireless LAN.
• The number of possible shots will be fewer when the external media or GPS device is being bus-powered.
Power Source
None Powered by the camera
Dimensions and Weight
Dimensions
(W x H x D)		 26 x 90 x 29 mm / 1.0 x 3.5 x 1.1 in.
Weight Approx. 75 g / 2.7 oz.
Operating Environment
Temperature 0°C - +45°C / 32°F - +113°F
Humidity 85% or less


* Specifications subject to change by the manufacturer without notice
