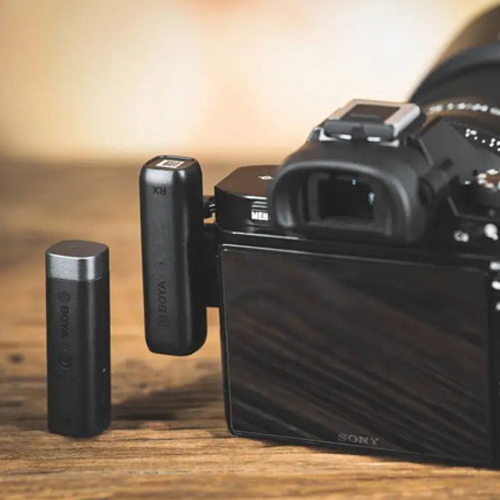

The BOYA BY-WM3D is an easy-to-use, digital true-wireless microphone system designed to capture clear, intelligible speech to your iPhone/iPad, DSLR/mirrorless camera, or any smartphone/tablet equipped with a headphone jack. It is a great choice for journalists, YouTube/Instagram creators, TikTok personalities, and vloggers.

Tiny Microphone Yet Powerful on Functions

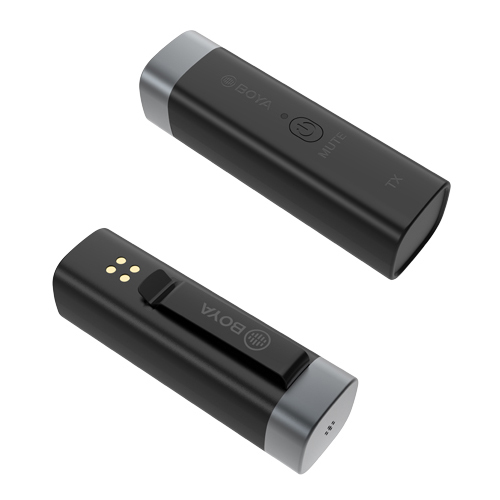

With no bodypack and no cables, the system provides a true cable-free experience. For demonstrations, presentations, and performances, this gives the user complete freedom of movement. The transmitter's miniature housing allows you to clip it to clothing, slide it into a shirt pocket, place it on a podium, or hold it in your hand. When compared to DSLR and mobile device built-in microphones, this allows you to position the microphone closer to the speaker's mouth, resulting in significantly improved sound quality.

Easy to Use with 4.5 Hours Running Time

The BY-WM3D can be used right out of the box by anyone, regardless of their level of experience. When you remove the microphone from the included charging case, plug it in, and turn it on, it's ready to use, so you can concentrate on creating your content. The system runs on rechargeable batteries and can transmit clear sound for up to 4.5 hours at a distance of up to 20 metres.

Using in Different Environment

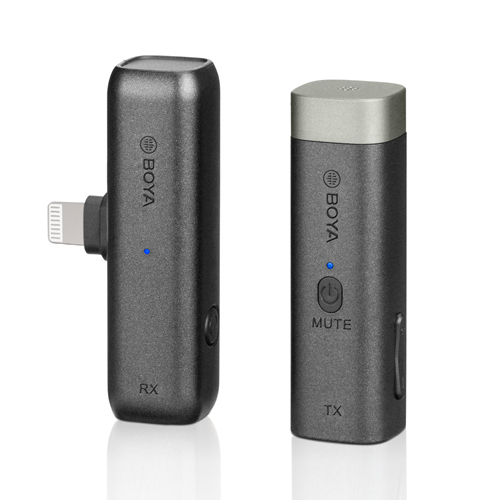

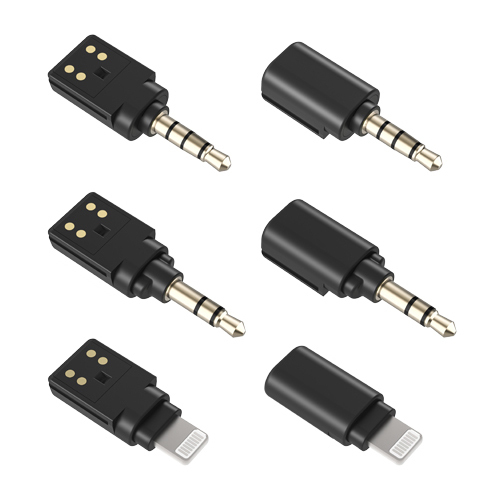

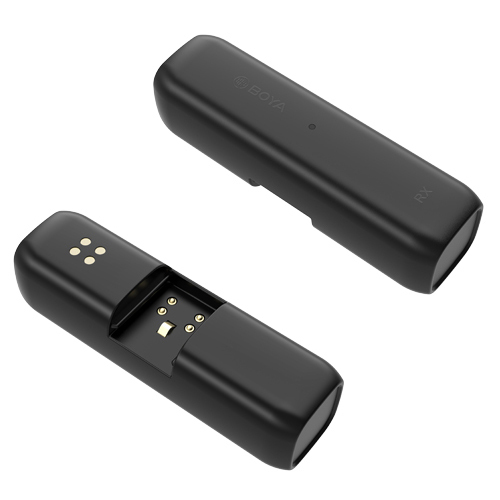

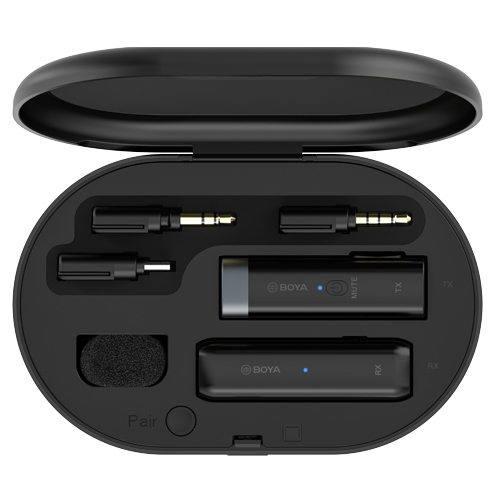

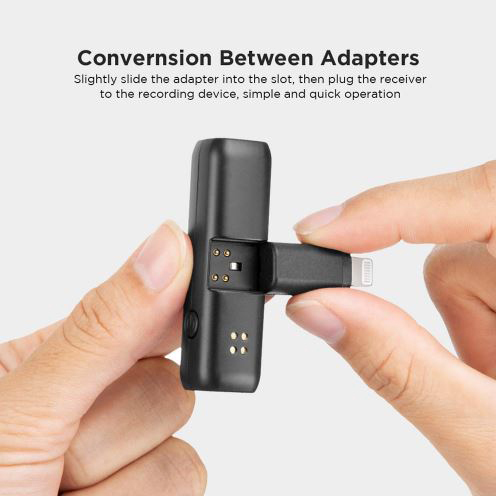

Everything you'll need to record crystal-clear speech in any situation is included with the BY-WM 3D. In addition to the clip-on transmitter with built-in microphone and the plug-in receiver with three types of interchangeable audio adapters, you get a foam windscreen and a furry windshield to reduce wind noise when working outdoors. A charging case is included to recharge the batteries and transport your equipment safely.

Transmission Type:

2.4GHz

Polar Pattern:

Omnidirectional

Frequency Response:

20Hz-20KHz (±3dB)

Distortion:

<0.1%

Sampling Rates:

48kHz

Bit Depth:

16Bit

Signal-to noise ratio:

75db or more

Sensitivity:

-42dB±3dB (1dB=1V/Pa@1kHz)

Operating Distance:

20m (without obstacle)

Power Consumption:

TX: 80mW RX: 60mW

Working Time:

TX: 4.5 hours * two times

RX: 8 hours * two times

Charing Time:

TX:2 hours
RX:2 hours

Charging Case:2 hours

Charging Port (Charging Case):

Type-C

Battery Capacity:

TX:100mA
RX:100mA

Charging Case:1000mA

Size:

Charging Case:120*77*30.5m (4.7*3*1.2")

TX:51.8*15.6*18mm (2*0.6*0.7")
RX:54*15.6*15.6mm (2*0.6*0.6")

Weight:

TX+RX+Charging Case: 129g (4.5 oz)

TX:10.5g

RX:9.5g


* Specifications subject to change by the manufacturer without notice
  • Charging Case
  • Clip-on Minature Transmitter
  • Professional Compact Receiver
  • MFI Certified Lightning Adapter
  • 3.5mm TRS Adapter
  • 3.5mm TRRS Adapter
  • Foam Windshield
  • Fur windscreen
  • 30cm Type-C to USB-A Charging Cable
