Key Features:
- Simultaneous SDI to HDMI & HDMI to SDI
- Supports up to DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI Timecode
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
You May Also Like
Bags, Cases & Straps:
Black Magic Micro Converter BiDirect SDI/HDMI 3G 20 Pack
Easily combine SDI and HDMI components in your video setup with the Micro Converter Bidirectional SDI/HDMI 3G from Blackmagic Design. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter Bidirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

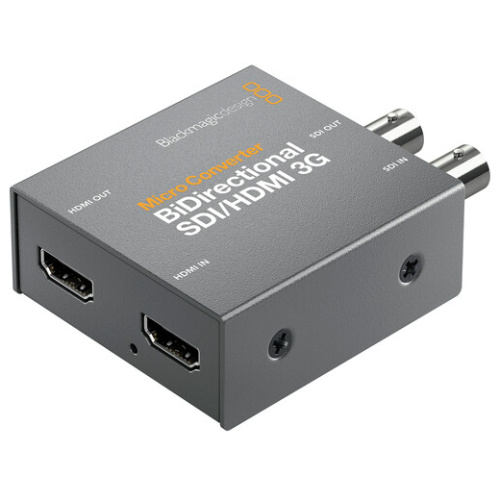

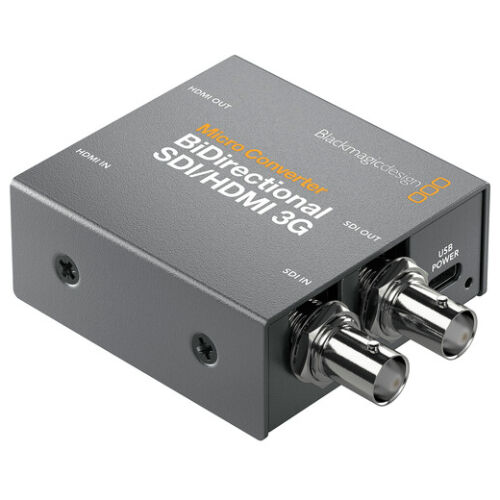

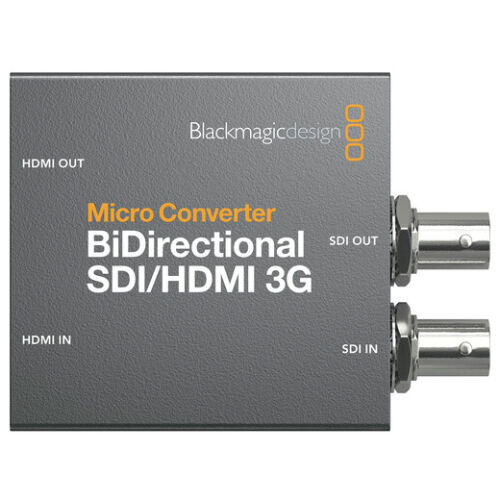

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the Bidirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.
Compact, Rugged Design
Robust metal housing and rugged connectors.
USB Type-C port for powering via a compatible component like a monitor or laptop.
Updatable via the USB Type-C port and your Mac or PC.
Simultaneous Conversion
Use the bidirectional Micro Converter to convert HDMI to 3G-SDI and 3G-SDI to HDMI simultaneously.
Ideal for connecting HDMI consumer components to professional 3G-SDI equipment.
HDMI Camera Control
Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher.
SDI & HDMI Timecode
HD and SD timecode support.
Converts HDMI timecode to SDI and vice versa.
SDI Re-Clocking
Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs.
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B.
Wider Resolution Support
SDI support from NTSC and PAL up to DCI 2Kp60.
HDMI support from NTSC and PAL up to 1080p60.
Embedded Audio
Supports embedded SDI and HDMI input and output.
LED Indicators
LED indicators for video and power signals.
Versatile Power Options
Power from a monitor, laptop, or other component using the USB Type-C port.
INPUTS/OUTPUTS | |
Video Inputs |
1x BNC (3G-SDI)
|
1x HDMI (2.0) | |
Video Outputs |
1x BNC (3G-SDI)
|
1x HDMI (2.0) | |
Other I/O |
1x USB-C Input
|
FORMAT SUPPORT | |
Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF at 25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF at 25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
480i / 525 lines at 59.94 fps | |
576i / 625 lines at 50 fps | |
HDMI (8/10-Bit 4:2:2 RGB, YUV) | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
480i / 525 lines at 29.97 fps | |
576i / 625 lines at 25 fps | |
Output Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
|
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
DCI 2KPsF at 25/29.97/30 fps | |
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
1080PsF at 25/29.97/30 fps | |
1080i at 50/59.94/60 fps | |
720p at 50/59.94/60 fps | |
480i / 525 lines at 29.97 fps | |
576i / 625 lines at 25 fps | |
Embedded Audio |
HDMI/SDI
|
STANDARDS | |
Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M-A/425M-B
|
HARDWARE | |
OS Compatibility |
macOS 10.15
|
macOS 11.1 or Later | |
Windows 10 (64-Bit Only) | |
POWER | |
Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
Power Consumption |
2.5 W
|
ENVIRONMENTAL | |
Operating Temperature |
32 to 72°F / 0 to 40°C
|
Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Operating Humidity |
0 to 90%
|
GENERAL | |
Dimensions |
7.95 x 4.57 x 2.48 cm
|
Weight |
0.167 kg
|
* Specifications subject to change by the manufacturer without notice.
