Audio-Technica System 10 Camera-Mount Wireless Microphone System
SKU code: 28226
- Hot/Cold Shoe Mount
- Reliable Wireless Audio Solution
- 3.5mm Headphone Monitoring
- 2.4GHz Frequency Operation
- Includes Transmitter and Receiver
Versatile Wireless Recording System
The Audio-Technica System 10 Camera Mount Wireless Microphone system was designed specifically for DSLR and Mirrorless filmmakers, video bloggers and content creators. It delivers convenient, high fidelity wireless audio without the restriction of cumbersome cables equipping you with a versatile overall recording solution.

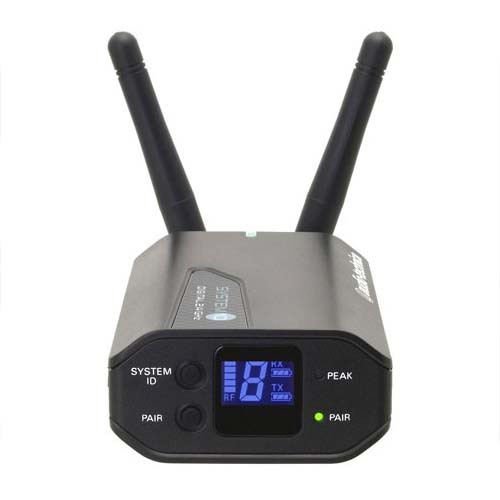

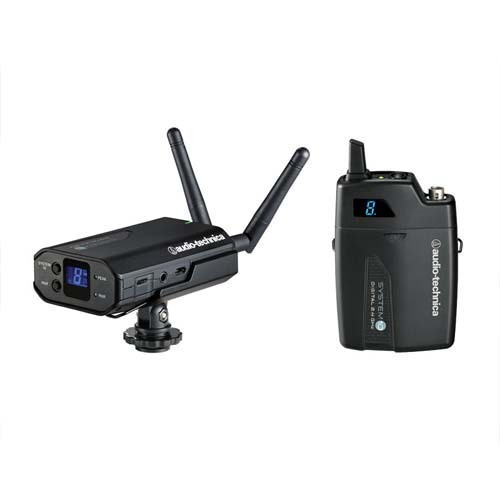

The camera mounted System 10 consists of an ATW-R1700 wireless receiver and an ATW-T1001 Digital Body-Pack Transmitter.
Digital 24-bit/48kHz Output
The receiver is capable of outputting balanced or unbalanced audio directly into your camera via a standard 3.5mm mini-jack. Its digital 24-bit/48kHz wireless operation ensures excellent sound quality and reliable performance.
3.5mm Line-Out for Audio Monitoring
Accuracy is assured thanks to its standard 3.5mm line-out interface providing you with clear, accurate professional style headphone monitoring.

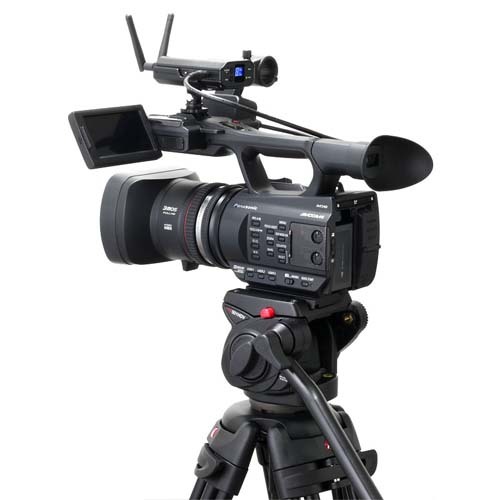

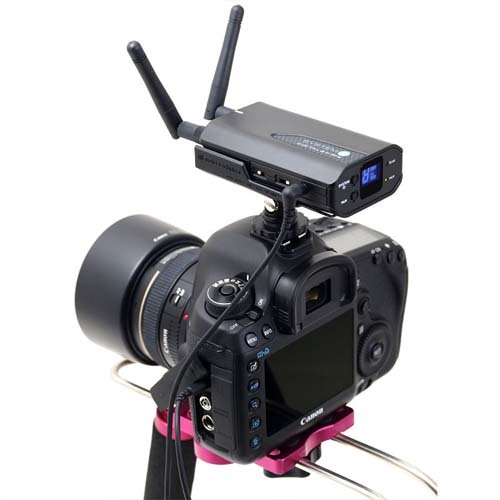

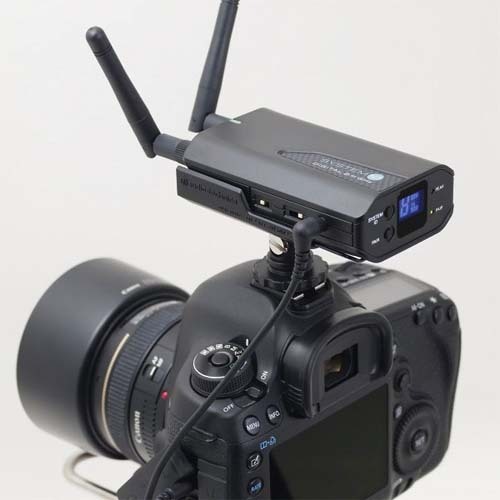

Includes On-Camera Hot or Cold Shoe Mount
It mounts to any standard hot or cold shoe and utilises the stable 2.4GHz frequency range to ensure optimal protection from interference. Used in conjunction with the body-pack transmitters, the System 10 kit delivers an impressive 30 metre range in optimal conditions.
Supports up to 8 Transmitters
A multi-pairing function adds versatility, enabling you to link up to eight Body-Pack or hand held transmitters to a single receiver for multiple input sources. Built-in automatic frequency selection delivers fast set up and seamless, interference-free operation.
The ATW-R1700 receiver also features an internal Li-Ion battery for up to 12 hours usage on a single charge.
Discreet Body-Pack Transmitter
The Body-Pack transmitter features a four-pin locking connector, compatible with the discreet AT829CW omnidirectional lavalier microphone*. Its discreet shape and compact design allow it to be easily hidden in pockets and on belt loops. The transmitter is conveniently powered by 2x AA batteries which can deliver up to 7 hours of continual operation in ideal shooting scenarios.
Perfect for adding high quality audio to your video production the Camera Mount Audio-Technica System 10 Wireless System is a scalable, cost effective solution for reliable, interference-free sound recording.
Note, this kit does not include a microphone.
Overall System Specifications
|Operating Frequencies||2.4 GHz ISM band|
|Dynamic Range||>109 dB (A-weighted), typical|
|Total Harmonic Distortion||<0.05% typical|
|Operating Range||30m radius, 60m diameter typical
Open range environment with no interfering signals
|Operating Temperature Range||0°C to +40°C
Battery performance may be reduced at very low temperatures
|Frequency Response||20 Hz to 20 kHz
Depending on microphone type
|Receiving System||Diversity (frequency/time/space)|
|Maximum Output Level||3.5 mm, TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV|
|Power Supply||100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply|
|Battery||Internal Battery: 3.7V rechargeable Li-ion battery|
|Battery Life||12 hours
Depending on environmental conditions
Battery Charging Time: 4 hours 30 minutes
Depending on environmental conditions
Charging Temperature Range: 5°C to +35°C
|Dimensions||56.0 mm W x 91.4 mm H x 27.8 mm D|
|Net Weight||105 grams|
|Accessories Included||Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm stereo cable|
Body-Pack Transmitter Specifications
|RF Power Output||10 mW|
|Spurious Emissions||Following federal and national regulations|
|Input Connections||Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
|Batteries||Two 1.5V AA
|Battery Life||>7 hours (alkaline)
Depending on battery type and use pattern
|Dimensions||70.2 mm W x 107.0 mm H x 24.9 mm D|
|Net Weight||100 grams (without batteries)|
* Specifications subject to change by the manufacturer without notice
