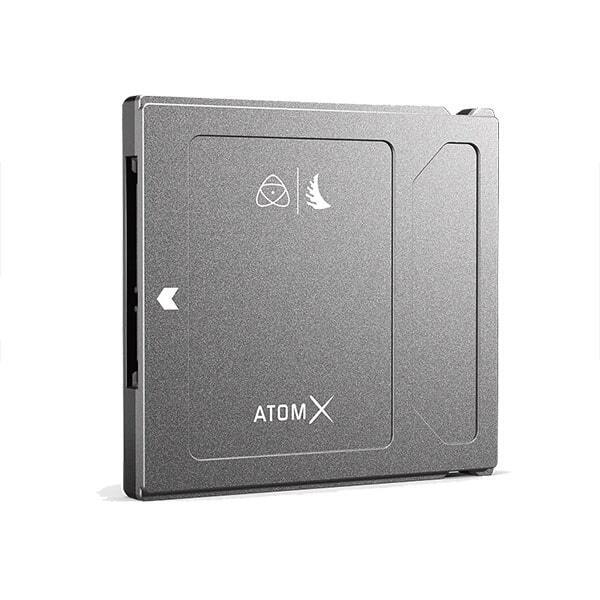

Angelbird AtomX SSDmini - 500GB
SKU code: 41085
- Designed for the Atomos Range
- Supports 4K60p, 2K240p Apple ProRes RAW
- Supports 4K@30p CDNG
- Read Speeds up to 560 MB/S
- Write Speeds up to 520 MB/S
- ESD & Overload Protection
- X-Ray and Magnetic Proof
- Shock and Temperature Proof
You May Also Like
Cables & Connectivity:
The Angelbird AtomX SSDmini 500GB delivers excellent performance with a portable design that is compact and lightweight. With read speeds up to 560 MB/S and write speeds up to 520 MB/S the tiny little unit pack a punch and is more than capable of handling the high data rates that Atomos external recorders require. It is available in 500GB and 1 TB capacities depending on how much footage you need to capture.
Developed for 4K Atomos Workflow

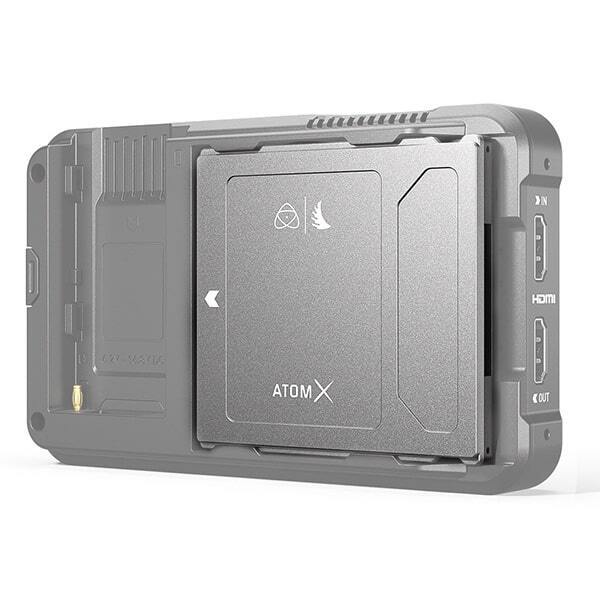

Designed for the latest developments in the cinematography world, the SSDmini has a standard SATA interface that is SATA 3.0 compliant (SATA cable sold separately). It is compatible with the Atomos Ninja V 4K recorder and keeps up with the demanding transfer speeds required for high resolution and fast frame rates footage produced by modern video cameras.
4K60p and 2K240p ProRes Raw Supported
Because of its incredibly fast capabilities the Mini SSD supports the new Apple ProRes RAW codec and 4K frame rates up to 60p as well as 2K resolution footage with a 240p frame rate. It also supports Cinema DNG at 4K up to 30p making it a super versatile storage medium.
Next Level Solid State Technology
Lightning fast speeds of up to 560 MB/S are possible thanks to advancements in solid state technology that is far superior to the speeds possible with conventional 7200 rpm disk drives. Combined with a compact lightweight design that is 20% smaller than an average SSD and you have the ultimate recording technology.
ESD and Overload Protection
With protection from overload and electrostatic discharge (ESD) you can be confident that your video files are safe from any electrical damage while stored on the drive. It has a robust full aluminium housing to protect your data and the drive is rated for a operating temperature range of -20°C to +70°C.
Note: The Sumo 19, Sumo19M and Shogun Studio require the Atomos SSDmini Adaptor to be compatible.
General |
|
Capacity |
500GB, 1TB |
Dimensions |
80 x 75.5x 9.3 mm |
Form factor |
SSDmini |
Weight |
90.0g |
Technical Specifications |
|
Interface |
SATA 6Gb/s and 1.5Gb/s |
Supported |
SATA 3.0 Compliant |
Over provisioning |
-0.09 |
Features |
Temperature Sensor, overload protection, TRIM, ECC, EMS Protection, built-in cache, SMART, NCQ |
Performance Specifications |
|
Sustained Read Speed |
up to 540MB/s |
Sustained Write Speed |
up to 500 MB/s |
Sequential Read Speed |
up to 560 MB/s |
Sequenctial Write Speed |
up to 520 MB/s |
Access Time (R/W) |
65µs/40µs |
Reliability Specifications |
|
MTBF |
>2,400,000 |
Data Reliability |
Built-in EDC | ECC Function |
Data Retention |
10 years at 25°C |
Endurance |
500GB: 1500TBW, |
1TB: 3,000TBW |
|
Certifications |
RoHS, FCC and CE compliant, REACH |
Electrical Specifications |
|
DC Input Voltage |
5V ±10% |
Power Usage (idle | max) |
500 GB: 0.35W |3.0W |
1 TB: 0.35W |3.5W |
|
Environmental Specifications |
|
Shock Resistance (operating) |
1000 G/0.5ms |
Vibration resistance (operating) |
2.17G RMS |
Operating Temperature |
-20°C ~ +70°C |
Storage Temperature |
-40°C ~ +85°C |
Operating Humidity |
5% to 95% non-condensing |
Compatible With |
Ninja V |
Ninja Flame |
|
Ninja Inferno |
|
Sumo 19* |
|
Sumo 19M* |
|
Shogun Flame |
|
Shogun Inferno |
|
Shogun Studio* |
|
*only with Atomos SSDmini Adaptor |
* Specifications subject to change by the manufacturer without notice
AtomX Mini SSD
Note: SATA Interface Cable for Transfer to PC sold separately
