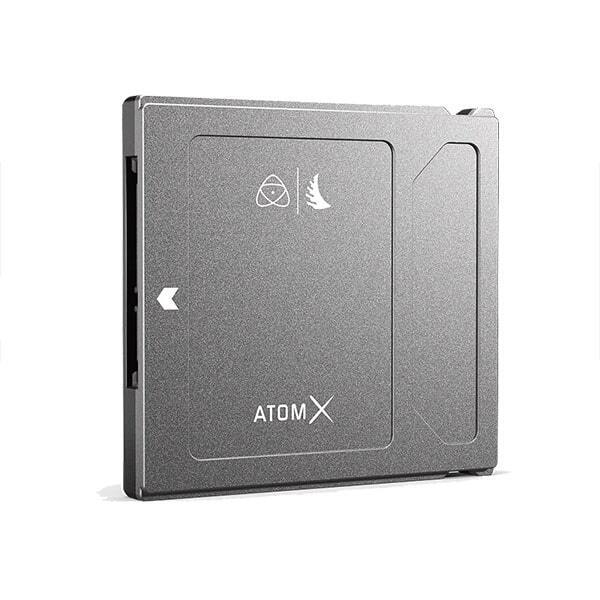

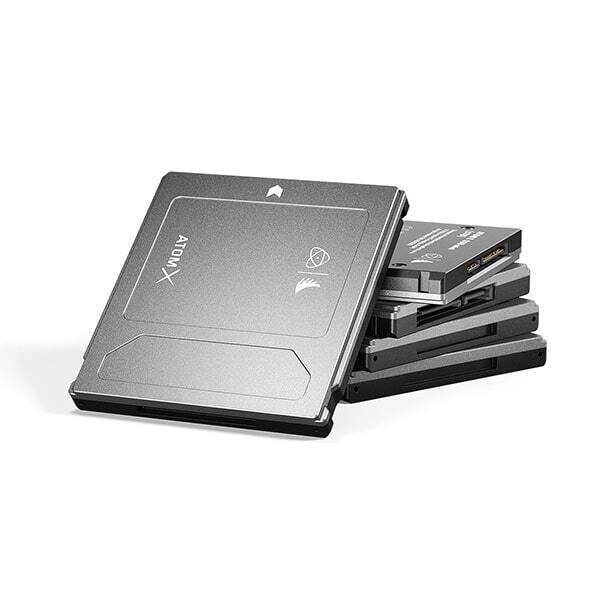

The Angelbird AtomX SSDmini 1TB delivers excellent performance with a portable design that is compact and lightweight. With read speeds up to 560 MB/S and write speeds up to 520 MB/S the tiny little unit pack a punch and is more than capable of handling the high data rates that Atomos external recorders require. It is available in 500GB and 1 TB capacities depending on how much footage you need to capture.

Developed for 4K Atomos Workflow

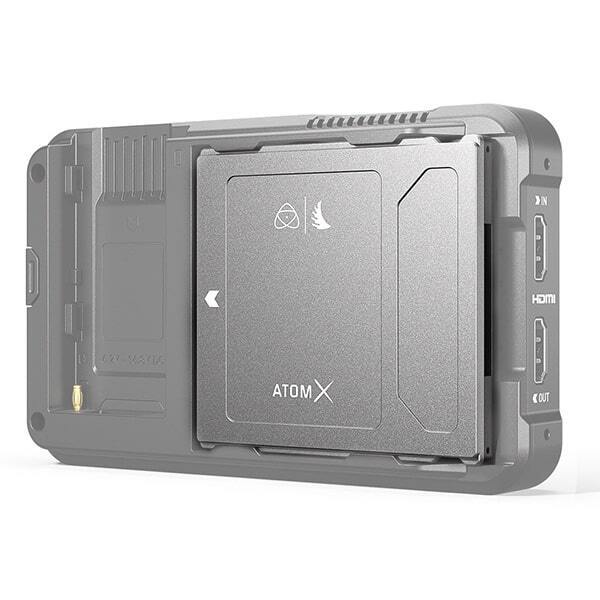

Designed for the latest developments in the cinematography world, the SSDmini has a standard SATA interface that is SATA 3.0 compliant (SATA cable sold separately). It is compatible with the Atomos Ninja V 4K recorder and keeps up with the demanding transfer speeds required for high resolution and fast frame rates footage produced by modern video cameras.

4K60p and 2K240p ProRes Raw Supported

Because of its incredibly fast capabilities the Mini SSD supports the new Apple ProRes RAW codec and 4K frame rates up to 60p as well as 2K resolution footage with a 240p frame rate. It also supports Cinema DNG at 4K up to 30p making it a super versatile storage medium.

Next Level Solid State Technology

Lightning fast speeds of up to 560 MB/S are possible thanks to advancements in solid state technology that is far superior to the speeds possible with conventional 7200 rpm disk drives. Combined with a compact lightweight design that is 20% smaller than an average SSD and you have the ultimate recording technology.

ESD and Overload Protection

With protection from overload and electrostatic discharge (ESD) you can be confident that your video files are safe from any electrical damage while stored on the drive. It has a robust full aluminium housing to protect your data and the drive is rated for a operating temperature range of -20°C to +70°C.

Note: The Sumo 19, Sumo19M and Shogun Studio require the Atomos SSDmini Adaptor to be compatible.

General



Capacity

500GB, 1TB

Dimensions

80 x 75.5x 9.3 mm

Form factor

SSDmini

Weight

90.0g

Technical Specifications



Interface

SATA 6Gb/s and 1.5Gb/s

Supported

SATA 3.0 Compliant

Over provisioning

-0.09

Features

Temperature Sensor, overload protection, TRIM, ECC, EMS Protection, built-in cache, SMART, NCQ

Performance Specifications



Sustained Read Speed

up to 540MB/s

Sustained Write Speed

up to 500 MB/s

Sequential Read Speed

up to 560 MB/s

Sequenctial Write Speed

up to 520 MB/s

Access Time (R/W)

65µs/40µs

Reliability Specifications



MTBF

>2,400,000

Data Reliability

Built-in EDC | ECC Function

Data Retention

10 years at 25°C

Endurance

500GB: 1500TBW,



1TB: 3,000TBW

Certifications

RoHS, FCC and CE compliant, REACH

Electrical Specifications



DC Input Voltage

5V ±10%

Power Usage (idle | max)

500 GB: 0.35W |3.0W



1 TB: 0.35W |3.5W

Environmental Specifications



Shock Resistance (operating)

1000 G/0.5ms

Vibration resistance (operating)

2.17G RMS

Operating Temperature

-20°C ~ +70°C

Storage Temperature

-40°C ~ +85°C

Operating Humidity

5% to 95% non-condensing

Compatible With

Ninja V



Ninja Flame



Ninja Inferno



Sumo 19*



Sumo 19M*



Shogun Flame



Shogun Inferno



Shogun Studio*



*only with Atomos SSDmini Adaptor


* Specifications subject to change by the manufacturer without notice

AtomX Mini SSD

Note: SATA Interface Cable for Transfer to PC sold separately
