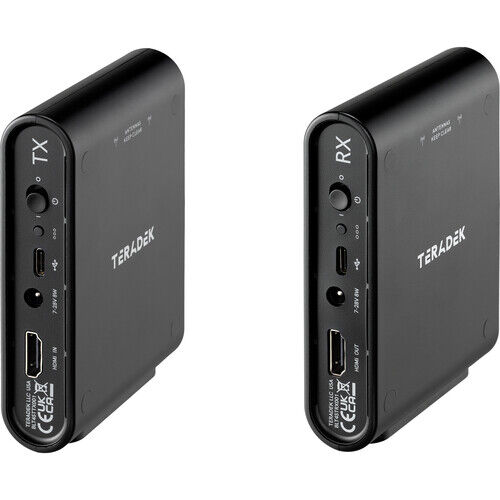

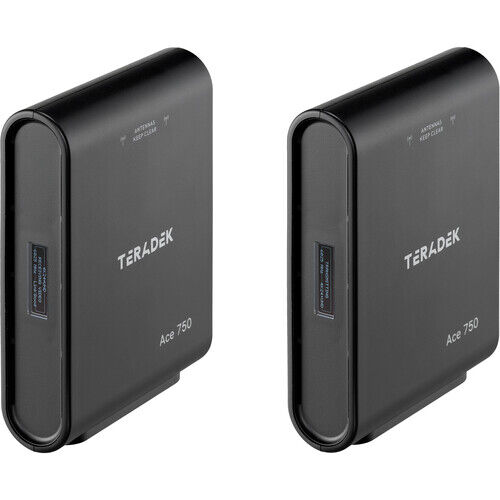

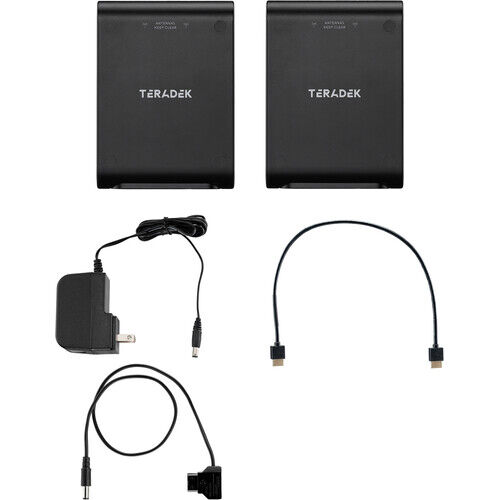

The Teradek ACE 750 4K HDMI Video TX/RX Kit pairs an Ace 750 transmitter with an Ace 750 receiver for zero-delay wireless video transmission and monitoring. It sends visually lossless, uncompressed 10-bit 4K30 HDR video over HDMI up to 229 m line of sight, making it a practical solution for camera-to-monitor workflows that need dependable real-time video.

Designed to work across 5 GHz and 6 GHz frequency bands, the Teradek ACE 750 4K HDMI Video TX/RX Kit is compatible with existing Bolt systems including Bolt 6, Bolt 4K, LT and XT receivers, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas keep each unit compact and easier to rig.

The transmitter features an HDMI input and can be powered by a separately available DC power source or L-series battery plate. It can also transmit to up to six devices at once, including Ace or Bolt receivers and devices running the Bolt Manager app. Multiple mounting threads allow secure attachment to a rig or stand.

The receiver includes an HDMI output and the same power options via separately available DC power or L-series battery plate. It also offers built-in mounting threads for flexible setup on set or in the field.

• Visually lossless, uncompressed 10-bit 4K30 HDR wireless video
• Zero-delay operation with less than 1 ms latency
• Wireless range up to 229 m line of sight
• 5 GHz and 6 GHz support for compatibility with Bolt systems
• Up to six-device transmission from one transmitter
• Built-in antennas and mounting threads on both units
• 256-bit AES encryption
• 2-channel embedded HDMI audio
• Timecode support
• Input power: 7 to 18 VDC
• Operating temperature: 0 to 40¡C

The Teradek ACE 750 4K HDMI Video TX/RX Kit is built for reliable wireless video monitoring with straightforward HDMI connectivity and broad Bolt ecosystem compatibility.
