Using components shared with R¯DEÕs finest studio recording microphones, the SVMX sets a new benchmark for immersive audio capture on camera systems.

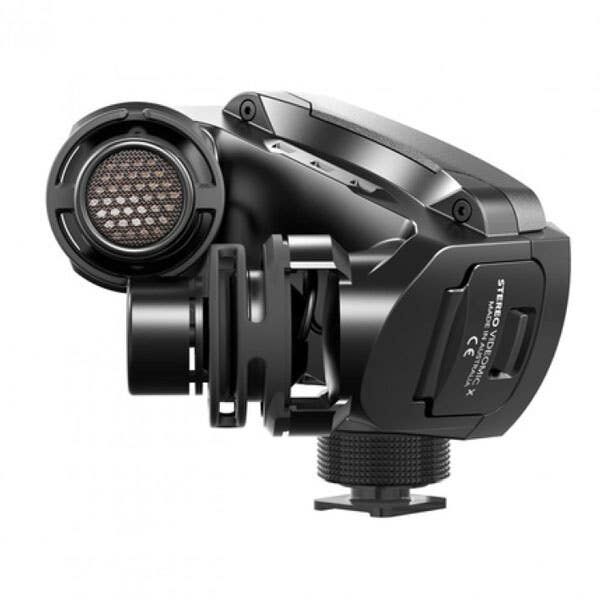

With Rycote® Onboard suspension at capsule level, the SVMX helps protect your recordings from vibration and handling noise without compromising durability.

For the first time on any R¯DE microphone, the SVMX includes integrated digital switching, making it easy to select from the built-in filters and settings, with clear LED indicators for confidence and convenience.

Specifications

• Acoustic Principle: Pressure gradient
• Polar Pattern: Cardioid (in X-Y stereo)
• Frequency Response: 40Hz ~ 20kHz
• High Pass Filter Range: 0, 75, 150Hz
• Variable Level: -10, 0, +20dB
• Output Impedance: 200½
• Signal to Noise Ratio: 82 dBA SPL (as per IEC651)
• Equivalent Noise: 12 dBA SPL (as per IEC651)
• Maximum SPL: 143dB SPL
• Dynamic Range: 131 dB SPL
• Sensitivity: -32 dB re 1V/Pa (25mV @ 94dB SPL) ± 2dB @ 1kHz
• Weight / Dimensions: 300g / 100mm H, 102mm W, 118mm L
• Power: 9V alkaline battery or P48 (via miniXLR)
• Battery Life: 30 hours
• Warranty: 10 year warranty - with online registration
