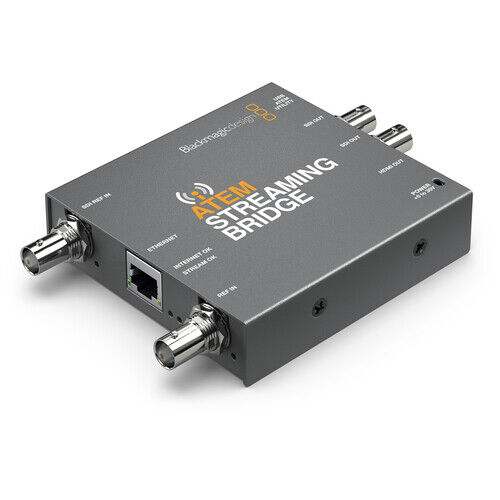

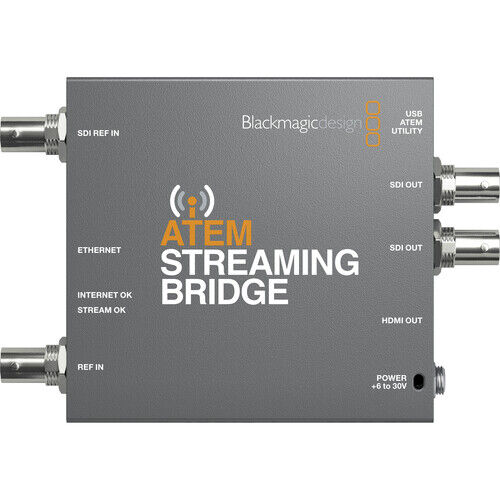

BlackMagic Atem Streaming Bridge is designed to convert the IP stream from an ATEM Mini Pro into SDI and HDMI video outputs for use in broadcast setups, monitoring, and network-based workflows. It provides two 3G-SDI outputs and one HDMI 1.4 output, making it a practical solution for sending decoded video to compatible production equipment or a display.

When connected directly to the streaming output of an ATEM Mini Pro Streaming Switcher, the BlackMagic Atem Streaming Bridge decodes H.264 IP video up to 1920 x 1080. It also supports operation on the same LAN as an ATEM Mini Pro, allowing the devices to detect each other for easy streaming across the network. Downloadable software is included for managing decoding settings and assigning an IP address, with the saved information able to be emailed to another computer connected to an ATEM Mini Pro so it can locate and stream to the Streaming Bridge over the internet.

• Video outputs: 2 x BNC (3G-SDI), 1 x HDMI 1.4
• Other I/O: 1 x RJ45, 2 x BNC (reference)
• HDMI output resolutions: 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps; 1920 x 1080i at 50/59.94/60 fps
• SDI output resolutions (10-bit 4:2:2 YUV): 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps; 1920 x 1080i at 50/59.94/60 fps
• Video standard compliance: SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
• Broadcast system compatibility: NTSC
• Power input: 1 x barrel, 6 to 30 V DC
• Power consumption: 6 W
• Operating temperature: 0 to 22¡C
• Storage temperature: -20 to 60¡C
• Dimensions: 134.1 x 92.2 x 22.9 mm
• Weight: 230 g

BlackMagic Atem Streaming Bridge does not include HDR support, reclocking, or expansion slots. Certifications include CE, FCC, and KCC.
