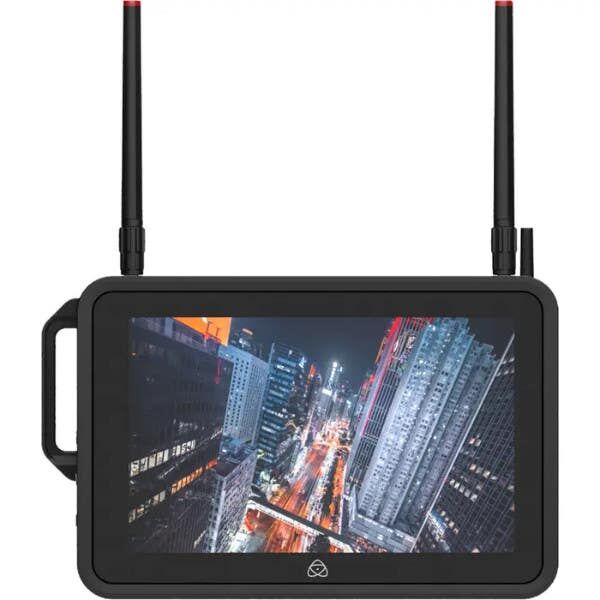

Atomos Shogun Connect

The Atomos Shogun Connect is the most advanced Shogun model yet, delivering portable monitoring, RAW recording and cloud-based workflows. Designed for professionals on the move, it is compatible with a wide range of digital cameras, including DSLRs, mirrorless cameras and cine cameras. Connectivity includes 12G-SDI and HDMI 2.0, while the bright 7-inch touchscreen makes monitoring clear and easy. The Shogun Connect records in up to 4K resolution and supports professional formats such as Apple ProRes, Apple ProRes RAW and more.

Key Features

• 7-inch 2000 nit touchscreen
• Records up to 4K video
• Supports a range of pro-level recording formats
• Includes 12G-SDI and HDMI 2.0 connectivity
• Portable and lightweight design

Built to suit a wide variety of workflows, the Atomos Shogun Connect includes a versatile mounting system that can be configured for many industry-standard setups. It also provides essential monitoring tools to help achieve professional results, including waveform, focus peaking, false colour and frame guides. For more advanced control, the AtomRemote app for iOS and macOS can be downloaded, allowing a range of functions to be controlled from up to 15 metres away via Bluetooth.

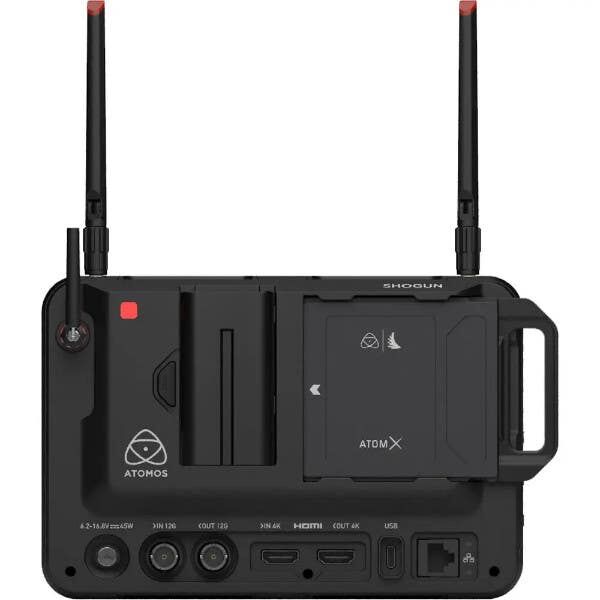

The Shogun Connect is housed in an aluminium alloy chassis with an ABS polycarbonate back plate, and features an actively controlled fan and heat sink for thermal management. Power options include a 6.2 - 16.8V locking jack and a battery slot for FP-F and L-series lithium batteries. Other features include WiFi, ethernet connectivity and an SSD slot.

• Wireless timecode
• Atomos Cloud Studio for advanced livestreams
