3 Legged Thing AirHed Vu Overview

The 3 Legged Thing AirHed Vu Ball Head has a load capacity of 40 kg and can be attached to tripods or other support systems with a 3/8"-16 mount. The magnesium alloy casing of the head has a unique vision panel that allows you to see the inner mechanism. The ball-and-socket joint of the ball head can be quickly swivelled, angled, and fully tilted to a vertical position or returned to its upright position by loosening the ball head's primary locking knob. An independent panning lock knob is located at the head's base.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included Arca-type quick release plate, which includes dual safety screws along the underside to prevent it from accidentally sliding off the receiver clamp when it is opened. The quick release receiver features a colored, knurled tightening knob to quickly and securely clamp the quick release plate.

AirHed Vu Ball Head

  • Arca-type ball head with 40 kg load capacity
  • Compatible with tripods or support systems that feature a 3/8"-16 mount
  • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
  • Ball-and-socket joint provides 360° of swivel control and is tiltable down to a 90° angle
  • Casing features a unique vision panel that allows inner mechanism to be seen
  • Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, and fully tilted
  • Secondary locking knob with knurled surface allows head to rotate 360°
  • Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
  • Knurled quick release receiver plate knob
  • Built-in bubble level
  • Durable magnesium alloy construction

Arca Type Quick Release Plate

  • Compatible with Arca-type quick release clamps
  • 1/4"-20 mount
  • Rubber traction pad
  • Dual safety screws
  • Durable, aluminum alloy construction
  • Blackness anodized finish
HEAD
Head Type Ball Head
Base Mount 3/8"-16 Female
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type Arca-Type
Number of Bubble Levels 1
Independent Pan Lock Yes
Ball Sphere Diameter 1.2" / 30 mm
PAN & TILT RANGE
Vertical Tilt 90°
Panning Range 360°
GENERAL
Load Capacity 40 kg
Weight 0.36 kg


* Specifications subject to change by the manufacturer without notice

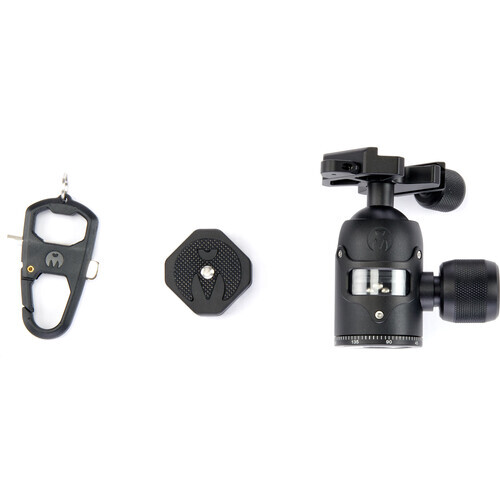

  • 3 Legged Thing AirHed Vu Ball Head (Blackness)
  • 3 Legged Thing QR4-EQ Quick Release Plate (Blackness)
  • 1/4"-20 Stagsden Camera Bolt
