3 Legged Thing AirHed Pro Overview

The darkness The 3 Legged Thing AirHed Pro Ball Head is an Arca-type ball head with a load capacity of 39.91kg that can be attached to tripods or other support systems with a 3/8" thread "-16 mount. Cameras and accessories that use a 1/4" thread The included QR-OCTA Quick Release Plate can be used to connect the -20 mount. By tightening or loosening the clamp's knurled, locking knob, the quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint. Dual retaining screws are included for use on the plate's underside. When the clamp is opened, these screws keep the plate from accidentally sliding off the ball head. The quick release plate has a rubberized, non-slip platform, and a built-in bubble level along the edge of the clamp opposite the locking knob allows for landscape orientations.

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Under the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.

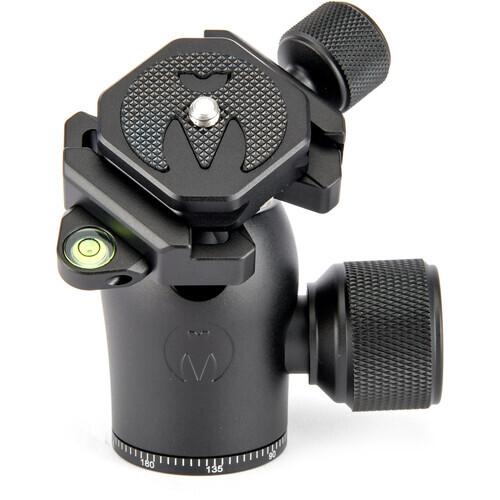

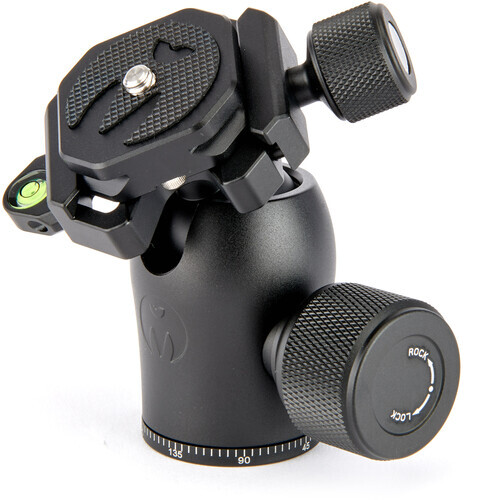

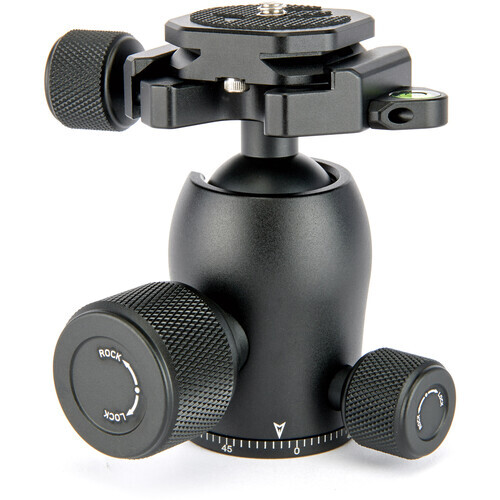

AirHed Pro Ball Head

• Arca-type ball head with 39.91 kg load capacity
• Compatible with tripods or support systems that feature a 3/8"-16 mount
• Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
• Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
• Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
• Secondary locking knob with knurled surface allows head to rotate 360°
• Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
• Knurled locking knob for integrated clamp secures compatible Arca-type quick release plates
• Built-in bubble level along the edge of the clamp opposite the clamp's locking knob accommodates landscape orientations
• Durable magnesium alloy construction

QR-OCTA Quick Release Plate

• Compatible with Arca-type quick release clamps
• 1/4"-20 mount
• Dual retaining screws along the underside of the plate prevent the plate from accidentally sliding off the AirHed Pro Ball Head
• Durable, aluminum alloy construction
