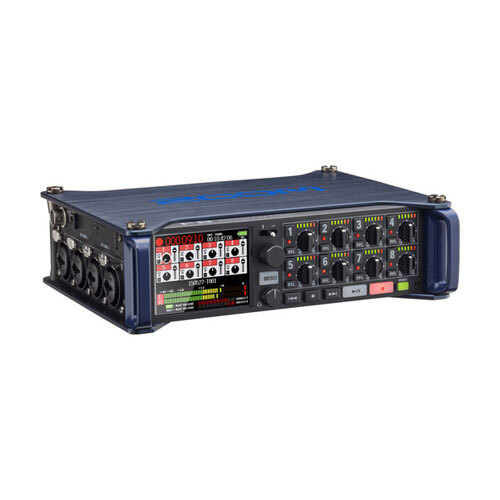

With 10-track simultaneous audio recording, the Zoom F8 Multi Track Field Recorder features 8 XLR/TRS combo inputs with high gain low noise preamps, on-board digital mixer with limiters, multiple power options and built-in data redundancy. Designed for filmmakers and sound designers, the Zoom F8 is well suited for sound recording and creation both on set and in the field.

8 Input Channels withHigh Quality Preamps

The F8 features 8 analogue input channels that can record up to 10 tracks simultaneously (8 channels plus a stereo mix track) for stereo and surround sound recording. The high quality mic preamps offer low noise (-127 dBu EIN or less) and high input gain (up to 75 dB), with support for +4 dB line inputs, to ensure clean sound recording.

High Resolution Audio with Advanced Limiters

Able to record at 24-bit/192 kHz resolution, the Zoom F8 has built-in limiters on-board that are designed to prevent distortionand provide overload protection. The limiters offer up to 10dB of headroom with the threshold able to be set at lower levels. Limiting can be applied to all channels and tracks simultaneously at full resolution.

Built-in Digital Mixer with Flexible Signal Routing

A mixer enables pre or post-fader signals from all inputs to be freely routed to any of the outputs, with user-adjustable level, pan, and input/output delay, filtering and limiting for each of the channels. In addition to the integrated limiters, the recorder provides high-pass filtering to reduce the sound of wind, phase inversion and Mid-Side decoding.

Highly Accurate Time Code

A high-precision Temperature Compensated Crystal Oscillator (TCXO) generates extremely accurate time codes with a discrepancy of less than 0.2 frames per 24 hours, enabling precise syncing of audio and video. The time code input and output are provided on standard BNC connectors for easy integration with equipment.

XLR/TRS Combination Inputs

8 locking XLR/TRS combo jack connectorsaccept mics with XLR plugs, or line level equipment likemixersor keyboards with TRS jacks. Individually switchable phantom power (+24V/+48V) is provided on each preampfor use with condenser mics.AStereo mic connector on the backallows plugging-in Zoom H-series microphone capsules.

Output Variety

In addition to a 1/4 inch headphone jack, the F8 also has two Main Outs on balanced TA-3 mini-XLRs that allow connecting to external mixers or processing devices, and a Sub Out on a single unbalanced stereo mini-jack socket for connection to your camera.

Headphone Monitoring

The F8 has a 1/4 inch headphone jack and a powerful 100mW headphone amplifier with a dedicated volume control that provides effective monitoring in any environment. Monitor individual channels in mono, stereo, or the Left/Right. Headphone alert tones can be set for low battery, recording start/stop, or recording errors.

USB Audio Interface

A mini-USB 2.0 port is included for firmware updates and also enables you to usethe F8as a USB audio interface (driver required for Windows), providing 2-in/2-out and 8-in/4-out configurations. The signals can be input directly to a computer or iPad and playback can be output from the recorder.

Data Redundancywith Dual SD Card Recording

Two card slots can accommodate SD/SDHC/SDXC cards up to 512 GB each, allowing the F8 torecord simultaneously on both cards for instant backup. You can alsosplit recordings, independently setting recording file formats for both SD cards. Additional back up features include:

File protection
In case of power loss or accidental removal of SD card, files are saved periodically during recording.
Dual Channel Recording
This mode records two copies of the same input at different levels, limiting, delay, phase inversion, and high-pass filtering, to create backup files.
Pre-record
Record up to6-seconds of audio before the RECORD button is actually pressed, ensuring you never miss the perfect take.

Multiple Power Options

The unit can be powered by a separately availableexternal DC power supply, a 12V AC adapter (included), or a set of 8 AA batteries which can provide emergency backup.Power is switched automatically between the available supplies at user determined minimum voltages.

File Formats

The F8 records in Broadcast Wave File (BFW) compliant WAV format or in MP3 format with a wide selection of resolutions and sample rates. The BWF have full iXML metadata and can be saved in mono, stereo, or poly formats.

Full Colour LCD Monitoring Screen

A 2.4-inch full colour backlit LCD displays the mixer and level meters of each input including recording status, time code counter, and more. The display can be customised to view specific inputs or outputs. With adjustable brightness the screen is to read in all kinds of lighting.

Wireless Remote Control with iOS App

Built-in Bluetooth connectivity allows the F8 tobe remotely controlled and monitored via Zoom F8 Control App for Apple iOS devices. With the App installed, you can easily view statuses, controlfunctions like record, or adjust a huge range of settings all from your iPhone or iPad.

User Friendly Software

The software menu is easy to navigate with a simple file structure and straightforward cataloguing. The F8 supports extensive metadata (BWF and iXML) such as input time, date, project, and scene number that can be entered directly into the recorder or through the Zoom F8 Control App.

Suitable for Field Conditions

On top of all its amazing features, the Zoom F8 MultiTrack Field Recorder is also compact and lightweight with an amazing build-quality. It can be carried, mounted to a tripod or attached directly under your camera with the included mounting bracket, giving you plenty of options. The rugged and durable aluminium chassis is perfectly suited for long days and on location use.
