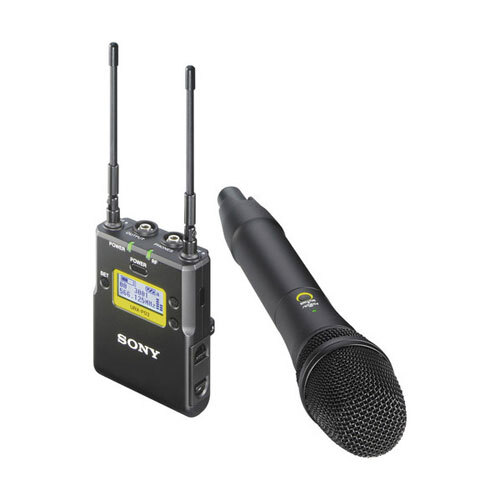

The Sony UWP-D12 Wireless Microphone Kit utilises digital audio processing to deliver high quality sound, suitable for electronic news gathering, interviews, talk shows and more. The kit includes the UTX-M03 handheld microphone transmitter, URX-P03 portable receiver, and a range of accessories including a microphone holder, belt-clip and hot shoe mount adapter.

Digital Audio Processing

The UWP-D12 kit uses Sony’s Hybrid Digital Audio Processing technology to deliver superb transient response performance between the transmitter and receiver. The hybrid system performs signal processing by digital companding for uncompromised sound quality, with transmission handled by conventional analogue FM modulation for higher reliability.

Automatic Channel Sync

With support for a wide frequency bandwidth of up to 72 MHz ensures an extensive choice of channels resulting in reduced interference and clearer audio quality. The Clear Channel Scan function detects available frequencies and selects the most appropriate channel for fast and easy system set-up. The receiver automatically sets the transmitter channel using an IR Sync feature, eliminating the hassle of manual tuning.

True Diversity Receiver

The included URXP03 receiver is equipped with two independent RF circuits, each with its own antenna. The stronger of the two incoming RF signals is automatically selected to ensure drop free transmission.

Interchangeable Microphone Capsule

The Sony UTX-M03 microphone features a uni-directional dynamic capsule that can be substituted with over 40 different capsules from various other manufacturers such as the industry standard Shure SM58. This customisation allows you to fine-tune your audio quality for specific needs such as capturing audio from a particular percussion or a string instrument.

Adjustable Output Level Control

Adjustable output level control of ±12dB enables use in a broad range of environments while adding convenience and saving-time in post.

Large Backlit Display

A large backlit LCD screen ensures settings are easily readable, even when shooting at night. The display communicates important information such as transmission frequency, channel, signal strength, cumulative operating time, battery life and audio output status.

Headphone Output

The headphone socket on the receiver unit allows real-time audio monitoring, equipping you with the ability to check and adjust recording settings as required.

Dual Power Modes

Both the microphone and receiver can be powered by rechargeable Ni-MH AA batteries (sold separately) or an external USB power source through a built-in micro USB terminal.

Cable Free Set-Up

The URX-P03 receiver can be mounted onto MI (Multi-Interface) shoe equipped Sony cameras through the optional SMAD-P3D shoe adapter (sold separately) to achieve a cable free set-up without dangling cables on the camera. The MI shoe also enables power supply to the receiver from the camera’s in-built battery.

Compact and Light Weight

The compact form factor and light weight design makes the receiver suitable for use with DSLRs, mirrorless cameras or video camcorders.

Robust Construction

The wireless receiver and handheld microphone feature a strong and durable metal body capable of enduring rough handling without compromising performance.

Compatible with Sony 800 and UWP Series Receivers

The UWP-D12 transmitter and receiver are cross compatible with the Sony WL-800 Series, UWP Series and Freedom Series units, allowing you to switch between different companding modes and maximise the utility of your other Sony audio equipment.
