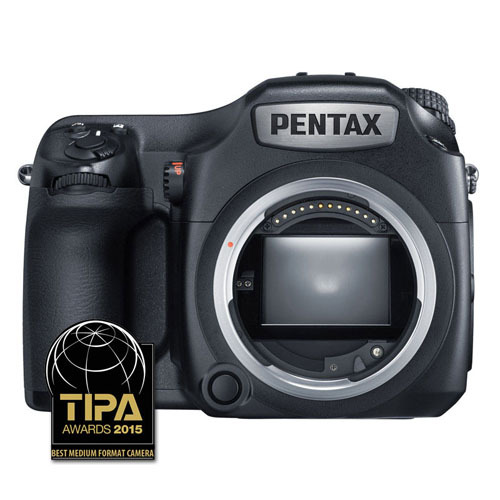

The Pentax 645Z represents the forefront of photographic technology. Targeted at the seasoned photographic professional, this medium-format DSLR combines a rugged weather resistant, dust-proof exterior with a 51.4 megapixel sensor that produces immersive, ultra-high resolution images.
The extra-large CMOS sensor measures approximately 43.8mmx32.8mm to deliver a light sensitive surface area 1.7x larger than your traditional 35mm full-frame sensor. Image quality is further bolstered with the exclusion of a low-pass filter ensuring every possible ounce of light is captured and faithfully reproduced.
A powerful PRIME III image processor delivers a maximum ISO204800 to effectively minimise noise and deliver vivid photos with a stunning lifelike sense of depth. The image processor also enables a 3fps continuous burst mode, state of the art autofocus and improved camera responsiveness allowing professionals to take medium-format photography into a newer and more contemporary direction.
RAW files are recorded at 14-bit to provide optimal post-processing versatility and can be saved in either the proprietary Pentax PEF format or the more application friendly Adobe DNG format.
Metering is handled by an advanced Real-Time Scene Analysis System which takes imaging data from an 86,000 pixel RGB light-metering sensor and processes it using a fine-tuned algorithm. This data is then relayed back to the photographer as valuable information regarding the exposure settings, white balance and autofocus accuracy of a particular scene.
The 645Z is also capable of Full High Definition movies recorded at up to 60fps. The large sensor is excellent at producing cinematic style footage with razor sharp detail, accurate colour reproduction and excellent background separation. A dedicated movie record button allows the photographer to switch from stills to movies immediately. An on-board microphone records stereo quality sound with an option to plug in an external mic for more advanced audio requirements.
Image composition is delivered via a large, bright trapezoidal glass prism which offers an approximate 98% field of view. It is coupled with a Natural-Bright Matte focusing screen for razor sharp detail, easier focusing and reduced eye-strain during those extended shooting stints. A large 3.2-inch tilt-able LCD screen is housed at the rear of the camera. Featuring a 1,037,000-dot resolution,the angle of the LCD can be adjusted for easier high or low-angle framing. An anti-reflection coating combined with an air-gapless construction eliminates the space between each LCD layer to ensure optimal visibility in bright daylight conditions.
With dual SD card slots for professional-level speed and reliability, the Pentax 645Z medium-format digital camera is sure to achieve a reputation as a dependable workhorse for the demanding photographic veteran.
Product Code: 1Pentax645Z
TTL autofocus, auto-exposure medium format digital SLR camera
Type: CMOS with a primary colour filter Size: 43.8 x 32.8 (mm) Colour depth: 8 bits/channel JPG, 14 bits/channel RAW Effective pixels: 51.40 MP Total pixels: 52.99 MP Still resolution: JPEG: L (51M: 8256 x 6192), M (36M: 6912 x 5184), S (21M: 5376 x 4032), XS (3M: 1920 x 1440) RAW: L (51M: 8256 x 6192) TIFF: L (51M: 8256 x 6192) Quality levels: JPEG: Best, Better, Good, RAW + JPEG simultaneous recording available, RAW (14-bit): PEF, DNG Movie (resolution/FPS): Full HD (1920x1080, 60i/50i/30p/25p/24p), HD (1280x720, 60p/50p/30p/25p/24p) Dust Removal: Image sensor cleaning using ultrasonic vibrations "DR II" with the Dust Alert function
Type/construction: PENTAX 645AF2 mount with AF coupler, lens information contacts, and power contacts (stainless steel) Usable lenses: PENTAX 645AF2, 645AF and 645A mount lenses (PENTAX 67 medium format lenses useable with adapter), SDM function: Yes
Type: SAFOX 11 TTL phase-matching autofocus with 27 AF points (25 cross type focus points in the centre) AF modes: Single AF (AF.S), Continuous AF (AF.C), Focus operation customizable, Manual Focus Area Selection Modes: Spot, Select, Expanded Area AF (S, M, L), Zone Select, Auto (27 AF Points) Brightness Range: EV -3 to 18 (ISO 100, at normal temperature)
Type: Keplerian telescopic trapezoid prism finder Coverage (field of view): Approx. 98% Magnification: Approx. 0.62 x (55mmF2.8 at infinity), Approx. 0.85 x (75mmF2.8 at infinity) Standard focusing screen: Interchangeable Natural-Bright-Matte focusing screen Diopter adjustment: Approx. -3.5 m to + 2.0 m-1 Depth of field preview: Optical (diaphragm stop-down), Digital Eye-relief length: Approx. 21 mm (from view window), Approx. 24.1 mm (from centre of lens)
Type: 3.2” Tilt-able TFT colour LCD monitor featuring an air-gapless structure with an AR-coated, tempered-glass front panel and brightness/saturation/colour adjustments Resolution: Approx. 1037K dots Wide angle viewable: Yes
Type: Hot-shoe (P-TTL), high speed sync and wireless w PENTAX dedicated flash, X-Sync Socket Flash Modes: Flash On, Flash On+Red-eye Reduction, Slow-speed Sync, Slow-speed Sync+Red-eye, P-TTL, Trailing Curtain Sync, contrast-control-sync, high-speed sync, wireless sync (available with a dedicated external flash) Flash exposure compensation: -2 to +1 EV (1/2 steps) Synchronization speed: 1/125 sec
Removable memory: SD, SDHC*, SDXC* memory card, Eye-Fi card, FLUCARD *UHS-I compatible Dual Card Slot: Sequential save, Save to Both Dual save, Separate RAW/JPG, Copying images between slots possible
Connection Ports: USB 3.0 (micro B), external power supply terminal, cable switch terminal, X-sync socket, HDMI output terminal (Type D), stereo microphone input terminal (USB Connection: MSC/PTP) Video out: HD (via HDMI), NTSC, PAL
Battery Type: Rechargeable Li-Ion battery D-LI90 Recordable images: Approx. 700 (approx. 560 w 50% flash, CIPA) Playback time: Approx. 400 min Movie recording time: Up to 25 minutes automatically stops recording if the internal temperature of the camera becomes high. AC adapter available: AC Adapter Kit K-AC132 (Optional)
Body dimensions (W x H x D): 15.6cm x 11.7cm x 12.3cm (excluding protrusions) Body weight: Approx. 1550gm (including battery and memory card) Body only: Approx. 1470gm Construction material(s): Magnesium alloy shell over aluminium chassis Weather resistant: Yes - 76 special seals Operating temperature: -10 to 40°C
Type: Lens-shift type (When using SR (Shake Reduction) system lens)
Type: TTL open aperture metering using 86K pixel RGB sensor Sensitivity range: EV -1 to 21 (ISO100 at 55mmF2.8) Metering Modes: Multi-segment metering, Centre-weighted metering, Spot metering Exposure compensation: ±5 EV (1/3 EV steps or 1/2 EV steps can be selected) AE Lock: Button type (timer-control: two times the meter operating time set in Custom Setting), Continuous as long as the shutter release button is depressed halfway Exposure bracketing: 2, 3 or 5 frames, Available with Continuous, Self-timer or Remote Control
Auto: ISO AUTO/100 to 204800 (EV steps can be set to 1EV, 1/2EV, or 1/3EV) Bulb mode: Auto ISO n/a Manual: 100-51200 (1, 1/2, 1/3 steps)
Type: system combining CMOS image and light source detection sensors Auto, Multi Auto, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight Colour, N: Daylight White, W: Cool White, L: Warm White), Tungsten, Flash, CTE Manual mode(s): Manual (up to 3 settings can be saved), Colour Temperature (up to 3 settings can be saved), Copying the white balance settings of a captured image possible
Type: Electronically controlled vertical-run focal plane shutter Shutter speed: Auto: 1/4000 to 30 sec., Manual: 1/4000 to 30 sec. (1/3 EV steps or 1/2 EV steps), Bulb
Exposure modes: Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3 Custom Image: Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Bleach Bypass, Reversal Film, Monochrome, Cross Processing (Random, Pre-set 1-3, Favourite 1-3) HDR Capture: Auto, Type1, Type2, Type3, Exposure Bracket Value adjustable, Auto Align (automatic composition correction function) available Noise Reduction: Slow Shutter Speed NR, High-ISO NR Dynamic Range Settings: Highlight Correction, Shadow Correction Lens Correction: Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction Electronic Level: Displayed in viewfinder and LCD panel (horizontal direction only) displayed on LCD monitor (horizontal direction and vertical direction) Data record: Folder Name: Date (100_1018, 101_1019...) or user-assigned (default: PENTX) embed copyright. Date stamp: n/a
Mode selection: Stills: Single Frame, Continuous (H, L), Self-timer (12 sec., 2sec.), Remote Control (immediately, 3 sec., continuous), Multi-exposure (available with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite Movie: Remote Control, Interval Movie Record Multi-exposure: Composite Mode (Additive/Average/Bright) Number of Shots (2 to 2000 images), Interval 2000 shots, 2 sec to 24hrs, time delay available) Continuous shooting: Max approx. 3 fps, JPEG ( L: Best at Continuous H): up to approx. 30 frames, RAW: up to approx. 10 frames, TIFF: up to approx. 12 Max. approx. 4.5 fps, JPEG (L: Best at Continuous L): up to approx. 100 frames, RAW: up to approx. 25 frames, TIFF: up to approx. 15 *When the sensitivity is set to ISO100 Self-timer: Yes (12s, 2s) Remote control: Yes, infrared (0s, 3s, continuous), cable switch
Playback view: Single image display, Multi-image display (6, 12, 20, 35, 80 thumbnails), Image magnification (up to 16x, 1x display and quick zoom available), Grid Display (Grid Style: 4x4 Grid, Golden Section, Scale, Square 1, Square 2, Grid Colour: translucent black, translucent white), Rotated image display, Histogram (Y histogram, RGB histogram), Highlight Alert, Auto Image Rotation, Detailed Information Display, Copyright Information (Photographer, Copyright Holder), Folder Display, Calendar Filmstrip Display, Slideshow, *GPS information (latitude, longitude, altitude, Coordinated Universal Time (UTC)), *with optional O-GPS1 unit Digital filters (playback): Base Parameter Adj., Extract Colour, Toy Camera, Retro, High Contrast, Shading, Invert Colour, Unicolour Bold, Bold Monochrome, Tone Expansion, Sketch, Water Colour, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim RAW Development: Select single image, Select multiple images, Select a folder Development parameters: File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Colour Space, Distortion Correction, Lateral Chromatic Aberration Correction, Peripheral Illumination Correction, Diffraction Correction, Colour Fringe Correction, White Balance, Custom Image, Digital Filter, HDR, Sensitivity, High-ISO NR, Shadow Correction
Still: RAW (PEF/DNG), TIFF, JPEG (Exif 2.30), DCF2.0 compliant Movie: MPEG-4 AVC/H.264 (MOV) *Motion JPEG (AVI) for Interval Movie Record
Windows: Windows 8.1 (32 bit/64 bit) / Windows 8 (32 bit/64 bit) / Windows 7 (32 bit/64 bit) / Windows Vista (32 bit/64 bit), Intel Core 2 Quad or higher, 4GB or more Mac: Mac OS X 10.9 /10.8 / 10.7 / 10.6, Intel Core 2 Quad or higher, 4GB or more
Recordable images: Approx. 700 (approx. 560 w 50% flash, CIPA) Playback time: Approx. 400 min
* Specifications subject to change by the manufacturer without notice.
