The Fujifilm M-mount Lens Adapter lets you use a whole host of M-mount lenses with your Fuji X-mount interchangeable lens compact system camera, further opening up the scope for lens compatibility. The adapter’s 3-part design is constructed from high-quality materials made with exceptional tolerances to provide a perfect fit between lens and camera body, whilst accurately maintaining the 27.8mm distance from lens mount to sensor, which is crucial for the delivery of high quality images.
It also provides electronic communication between the fitted lens and camera allowing use of various functions such as: Shoot Without Lens; focal length settings; various image corrections, etc.*. Compatible with the Hybrid Multi Viewfinder, the bright frame changes according to the defined focal length for easy shooting. **
Compatible with the following Fujifilm X-series compact system cameras: X-Pro1
* Requires a user firmware update. ** The frame may not be displayed for lenses of certain focal lengths. - camera not included
High Precision Design - The Mount Adapter is designed to maintain the flange back distance of 27.8mm, for high precision M Mount lenses with advanced planarity. It is constructed using a three-part structure that employs optimum materials for each of the components. The contact surface with M Mount lenses features the same high quality stainless steel finish as that used on the X Mount camera body, while the contact surface with the camera body uses an aluminum component similar to that used in XF lenses. The middle section is made of aluminum to achieve an all-metal construction for a high level of rigidity and durability.
Signal Contacts to Get Shooting Fast - When the camera body recognizes the signal contacts of the Mount Adapter, the "Shoot Without Lens" mode is activated automatically. Users do not have to go to the MENU screen in order to change this setting, enabling them to start shooting instantly.
Function Button for Ease-of-use - Pressing the Function Button brings up the Mount Adapter Setting mode instantaneously. This provides ease of operation when registering a new lens to use, entering its settings or changing a lens.
Various Image Corrections*** and Focal Length Settings - The camera body has four preset focal lengths (21mm, 24mm, 28mm and 35mm) and can store two additional focal lengths. For each of the six focal lengths, users can define three image correction settings*** (distortion, peripheral illumination and colour shading).
Distortion Correction*** - corrects distortion, prominent on the edges of the frame. It is designed to correct "barrel distortion" typically seen with wide angle lenses and "pincushion distortion" common with telephoto lenses. Users may select three levels of correction ("Strong", "Medium", "Weak") or "OFF" for both "barrel distortion" and "pincushion distortion".
Peripheral Illumination Correction*** - corrects peripheral illumination, also known as vignetting, i.e. darkening of the four corners of an image. Users can opt to darken the periphery on purpose to highlight the photo subject at the centre in order to enjoy unique image description and flavour. Eleven levels of correction can be applied from -5 to +5 (including 0).
Colour Shading Correction*** - "Colour shading" is a gradual shift of colour between the centre and periphery of an image. This "colour shading" function can correct the four corners separately: Red / Cyan - the red / cyan colour shading is corrected between -9 and +9 relative to the green channel; Blue / Yellow - the blue / yellow colour shading is corrected between -9 and +9 relative to the green channel.
Gauge for Confirming Lens Compatibility - contains a gauge made of resin that allows the user to check the compatibility of M Mount lenses with the adapter. Some lenses may not be suitable for the adapter even if the gauge indicates them to be compatible. List of compatible lenses tested and confirmed by Fujifilm
*** Image correction functions are only applied to photos once taken. Live images on the LCD monitor and those viewed through EVF will not be presented as corrected images. Please do a test shoot and check the taken photos applied with the correction to find and register the optimum correction setting.

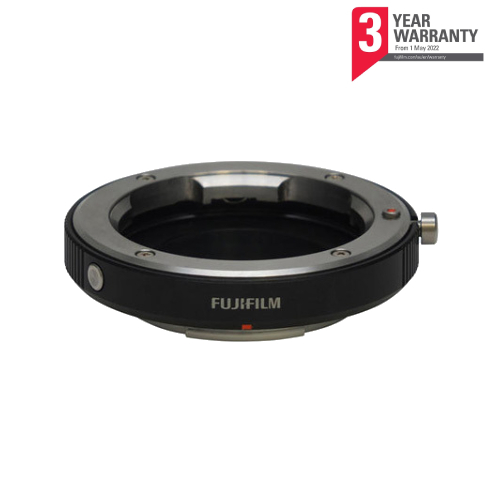

FUJIFILM M MOUNT ADAPTER
Approx. 65g (2.3 oz.)
ø59mm (2.3 in.) x 14.7mm (0.6 in.)
Gauge for confirming lens compatibility
* Specifications subject to change by the manufacturer without notice
