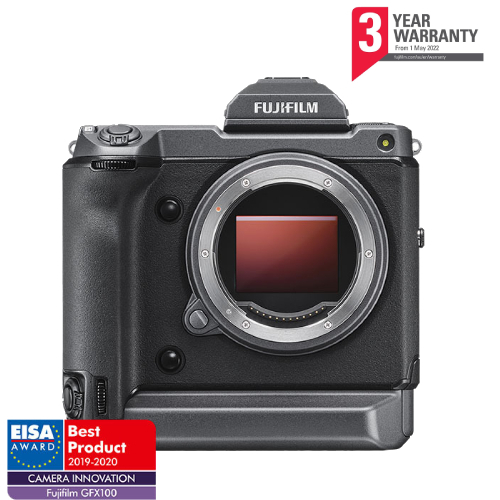

Fujifilm GFX 100

Model name

FUJIFILM GFX100

Number of effective pixels

102 million pixels

Image sensor

43.8mm×32.9mm Bayer array with primary color filter

Sensor Cleaning System

Ultra-Sonic Vibration

Storage media

SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-512GB) UHS-I / UHS-II / Video Speed Class V90

* Please check memory card compatibility.

File format

Still Image

JPEG (Exif Ver.2.3) *, RAW: 14bit / 16bit RAW (RAF original format), RAW+JPEG, 8-bit /16-bit (10-bit output in 16bit file) TIFF (In-camera Raw Conversion Only)

*Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.

Number of recorded pixels

[L] <4:3> 11648×8736 <3:2> 11648×7768 <16:9> 11648×6552 <1:1> 8736×8736
<65:24> 11648×4304 <5:4> 10928×8736 <7:6> 10192×8736
[M] <4:3> 8256×6192 <3:2> 8256×5504 <16:9> 8256×4640 <1:1> 6192×6192
<65:24> 8256×3048 <5:4> 7744×6192 <7:6> 7232×6192
[S] <4:3> 4000×3000 <3:2> 4000×2664 <16:9> 4000×2248 <1:1> 2992×2992
<65:24> 4000×1480 <5:4> 3744×3000 <7:6> 3504×3000

Lens Mount

FUJIFILM G mount

Sensitivity

Standard Output

AUTO1/AUTO2/AUTO3 (up to ISO12800) / ISO100~12800 (1/3 step)
(Movie: AUTO / ISO200~12800)

Extended Output

ISO50 / 25600 / 51200 / 102400
(Movie: ISO25600)

Exposure control

TTL 256-zone metering, Multi / Spot / Average / Center Weighted

Exposure mode

P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)

Exposure compensation

-5.0EV - +5.0EV 1/3EV step
(Movie: -2.0EV - +2.0EV)

Image Stabilizer

Mechanism

Image sensor shift mechanism with 5-axis compensation

Compensation Effect

5.5 stops (based on CIPA standard). Pitch/yaw shake only. With GF63mmF2.8 R WR lens mounted.

Shutter type

Focal Plane Shutter

Shutter speed

Mechanical Shutter

P mode: 4sec. to 1/4000sec. A mode: 30sec. to 1/4000sec.
S/M mode: 60min. to 1/4000sec. Bulb mode: up to 60min.

Electronic Shutter*³

P mode: 4sec. to 1/16000sec. A mode: 30sec. to 1/16000sec.
S/M mode: 60min. to 1/16000sec. Bulb mode: up to 60min.

Electronic Front Curtain Shutter*⁴

P mode: 4sec. to 1/4000sec. A mode: 30sec. to 1/4000sec.
S/M mode: 60min. to 1/4000sec. Bulb mode: up to 60min.

Mechanical + Electronic Shutter^*

P mode: 4sec. to 1/16000sec. A mode: 30sec. to 1/16000sec.
S/M mode: 60min. to 1/16000sec. Bulb mode: up to 60min.

* The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash cannot be used.

Electronic Front Curtain Shutter + Electronic Shutter^*

P mode: 4sec. to 1/16000sec. A mode: 30sec. to 1/16000sec.
S/M mode: 60min. to 1/16000sec. Bulb mode: up to 60min.

*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash can not be used.
* When using the electronic front curtain shutter, the continuous shooting supports CL only and using high speed shutter, the shutter switches to mechanical shutter. (Faster than 1/1250sec. to 1/4000sec.)

Movie

1/4000sec.-1/4sec*.
*Cannot choose slower shutter speed than framerate with LongGOP recording.

Synchronized shutter
speed for flash

1/125sec. or slower

Continuous shooting

CH Approx. 5.0fps (JPEG: 41 Frames Lossless compression RAW: 14 Frames Uncompressed RAW: 13 Frames)
CL Approx. 2.0fps (JPEG: Endless Lossless compression RAW: 20 Frames Uncompressed RAW: 15 Frames)
*When Using the Electronic Shutter CH continuous shooting speed drops to approx. 2.9fps.
*Electronic Front Curtain Shutter support CL only.
*Recordable frame depends on recording media.
*Speed of continuous shooting depends on shooting environment and shooting frames.

Auto bracketing

AE Bracketing (Frames: -2, -3, +3, +2, ±9, ±7, ±5, ±3 Step: 1/3EV, 2/3EV, 1EV, 4/3EV、5/3EV、2EV、7/3EV、8/3EV、3EV)
Film Simulation bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)
ISO sensitivity Bracketing (±1/3EV, ±2/3EV, ±1EV)
White Balance Bracketing (±1, ±2, ±3)
Focus Bracketing (Frames: 1-999, Step: 1-10, Interval: 0-10s)

Focus

Mode

Single AF / Continuous AF / MF

Type

Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)

AF frame selection

Single point AF: EVF / LCD: 13×9 / 25×17 (Changeable size of AF frame)
Zone AF: 3×3 / 5×5 / 7×7 from 117 areas on 13×9 grid
Wide/Tracking AF: (up to 18 area) * AF-S: Wide / AF-C: Tracking
All

White balance

Automatic Scene recognition / Custom1-3 / Colour temperature selection (2500K~10000K) / Pre-set: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Underwater

Self-timer

10sec. / 2sec.

Interval timer Shooting

Yes (Setting: Interval, Number of shots, starting time, Interval timer shooting exposure smoothing)

Flash modes

SYNC. MODE

1ST CURTAIN / 2ND CURTAIN / AUTO FP(HSS)

*When EF-X500 is set

FLASH MODE

TTL (TTL AUTO (P mode) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI / OFF

Hot shoe

Yes (Dedicated TTL Flash compatible)

Viewfinder

0.5 inch Approx. 5.76 million dots OLED Colour Viewfinder
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 23mm (from the Rear End of the Camera's Eyepiece)
Dioptre Adjustment: -4 - +2m-1
Magnification: 0.86× with 50mm Lens (35mm Equivalent) at infinity and Dioptre set to -1.0m-1
Diagonal Angle of View: Approx. 41° (Horizontal Angle of View: Approx. 33°)
Built-In Eye Sensor

LCD monitor

3.2-inch, Aspect Ratio 4:3, Approx. 2.36 million dots Tilt-Type (Three Direction), Touch Screen Colour LCD Monitor (Approx. 100% Coverage)

Touch Screen Mode

Shooting Mode

Touch AF, Focus Area, OFF
Double Tap ON/OFF Setting, Touch Function ON/OFF Setting

Playback Mode

Swipe, Zoom, Pinch-in / Pinch-out, Double-tap, Drag (ON/OFF Selectable)

Sub LCD monitor

1.80-inch, Aspect Ratio 4:3, 303×230-dot Monochrome LCD Monitor

Rear sub monitor

2.05-inch, Aspect Ratio 4:1, 256×64-dot Monochrome OLED Monitor

Movie recording

File format

MOV (MPEG-4 AVC / H.264, HEVC / H.265, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling)

Movie compression

All Intra/Long-GOP
* All Intra can be used with following settings.
DCI4K/4K 29.97p/25p/24p/23.98p 400Mbps
Full HD (2048×1080)/Full HD (1920×1080) 59.94p/50p/29.97p/25p/24p/23.98p 200Mbps

File size / Frame rate / Recording time

[DCI4K (4096×2160)] 29.97p / 25p / 24p / 23.98p 400Mbps/200Mbps/100Mbps up to Approx. 60min.
[4K (3840×2160)] 29.97p / 25p / 24p / 23.98p 400Mbps/200Mbps/100Mbps up to Approx. 60min.
[Full HD (2048×1080)] 29.97p / 25p / 24p / 23.98p 200Mbps/100Mbps/50Mbps up to Approx. 80min.
[Full HD (1920×1080)] 29.97p / 25p / 24p / 23.98p 200Mbps/100Mbps/50Mbps up to Approx. 80min.
* For recording movies, use a SD memory card with UHS Speed Class 3 or higher.
* For recording movies in 400Mbps, use a SD memory card with Video Speed Class 60 or higher.
* Recording movies in 400Mbps can be done with DCI4K/4K 29.97p/25p/24p/23.98p.

Film Simulation mode

16 modes (PROVIA / Standard, Velvia / Vivid, ASTIA / Soft, Classic Chrome,
PRO Neg.Hi, PRO Neg.Std, ETERNA / CINEMA, Black&White, Black&White+Ye Filter,
Black&White+R Filter, Black&White+Gfilter, Sepia, ACROS, ACROS+Ye Filter,
ACROS+R Filter, ACROS+G Filter)

B & W ADJ. (Warm/Cool)

-9 - +9 *When ACROS or Black&White is selected.

Grain Effect

STRONG, WEAK, OFF

Color Chrome Effect

STRONG, WEAK, OFF

Smooth Skin Effect

STRONG, WEAK, OFF

Dynamic range setting

AUTO, 100%, 200%, 400%

Photography functions

D range priority, Highlight tone, Shadow tone, Colour, Sharpness, Noise reduction, Long exposure NR, Lens Modulation Optimizer, Colour space, Pixel mapping, Select custom setting, Edit/Save custom setting, AF-C custom setting, Store AF mode by orientation, AF point display, Pre-AF, AF Illuminator, Face/Eye detection AF, AF+MF, MF assist(Digital Split Image, Digital Microprism, Focus peak highlight), Focus check, Interlock spot AE & focus area, Instant AF setting (AF-S/AF-C), Depth-of-field scale, Release/Focus priority, Touch screen mode, Flicker reduction, Mount adapter setting, 35mm Format Mode, Red eye removal, RGB Histogram, Highlight alert, Electronic level, Preview depth of field, AE lock, AF lock, AF-ON, AWB lock, Multiple exposure

Movie functions

Interframe NR, F-Log/HLG recording, Peripheral light correction, Movie AF mode, 4K movie output, Full HD movie output, HDMI output info display, 4K HDMI standby quality, HDMI rec control, Zebra setting, Zebra level, Audio setting, Time code setting, Tally light, Movie silent control

Playback functions

Switch slot, RAW conversion, Erase, Erase selected frames, Simultaneous delete(Raw Slot1/JPG Slot2), Crop, Resize, Protect, Image rotate, Red eye removal, Voice memo setting, Copy, Photobook assist, Multi-frame playback (with micro thumbnail), Favorites, RGB histogram, Highlight alert

Wireless transmitter

Standard

IEEE802.11a/b/g/n/ac (standard wireless protocol)

Encryption

WEP／WPA／WPA2 mixed mode

Access mode

Infrastructure

Bluetooth®

Standards

Bluetooth Ver. 4.2(Bluetooth low energy)

Operating frequency

2402 - 2480MHz (Center frequency)

Wireless function

Geotagging, Image transfer (Individual image/Selected multiple images), View & Obtain Images, instax Printer Print, pairing registration, Delete pairing registration, Bluetooth ON/OFF setting, Auto image transfer, Smartphone Sync. Setting, Wireless com. frequency setting

Other functions

Exif Print, Date/Time, Time difference, 35 Languages, My menu setting, Sensor cleaning, Battery age, Regulatory, Sound set-up, EVF brightness, EVF colour, EVF colour adjustment, LCD brightness, LCD colour, LCD colour adjustment, Image disp, Auto rotate displays, Preview exp./WB in manual mode, Natural live view, Framing guideline, Auto rotate PB, Focus scale units, Dual display setting, Disp. custom setting, Large indicators mode(EVF/LCD), Large indicators disp. setting, Information contrast adj. Sub monitor setting, Rear sub monitor setting, Sub monitor background colour, Rear sub monitor brightness, Focus lever setting, Edit/Save Quick menu, Function(Fn) setting, Command dial setting, Shutter AF, Shutter AE, Shoot without lens, Shoot without card, Focus ring, Focus ring operation, AE/AF-Lock mode, AWB-Lock mode, Expo. Comp. button setting, Touch screen setting, Lock, Auto power off, Performance, Shooting standby mode, Auto power save, Frame No., Save org image, Edit file name, Card slot setting, Select slot, Select Folder and Create Folder, Copyright Info

Terminal

Digital interface

USB Type-C（USB3.2 Gen1x1）

HDMI output

HDMI Micro connector (Type D)

Others

ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
ø2.5mm, Remote Release Connector
DC IN 15V Connecter *Compatible with AC-15V (Optional) Only
Hot shoe
Synchronized terminal

Power supply

NP-T125 (x2) Li-ion battery (included)

Battery life for still images*

Approx. 800 frames When GF63mmF2.8 R WR is set. (2 batteries installed, Auto power save ON)

Actual battery life of movie capture*

[4K] Approx. 100min. [Full HD] Approx. 150min. *Face detection is set to OFF

Continuance battery life of movie capture*

[4K] Approx. 170min. [Full HD] Approx. 240min. *Face detection is set to OFF

* Approximate number of frames or movie recording time that can be taken with a fully charged based on CIPA Standard.

USB power supply

Support USB PD (Power Delivery) power source to supply or rapidly recharge battery (USB PD Rev2.0 ver1.3)

Dimensions

Including EVF
156.2mm (W) × 163.6mm (H) × 102.9mm (D) / 6.15in. (W) × 6.44in. (H) × 4.05in. (D)
(Minimum Depth: 48.9mm / 1.93in.)
Excluding EVF
156.2mm (W) × 144.0mm (H) × 75.1mm (D) / 6.15in. (W) × 5.67in. (H) × 2.96in. (D)
(Minimum Depth: 48.9mm / 1.93in.)

Weight

Approx. 1,400g / 49.4oz. (including EVF, battery x2 and memory card)
Approx. 1,320g / 46.6oz. (including battery x2 and memory card)
Approx. 1,155g / 40.7oz. (excluding accessories, battery and memory card)

Operating Temperature

-10°C - 40°C (+14°F - +104°F)

Operating Humidity

10% - 80% (no condensation)

Starting up period

Approx. 0.4sec. *Fujifilm Research
